Adjustable connector FS
Item no. 6216650 | EAN 4012195065739
- Product description
-
Product description

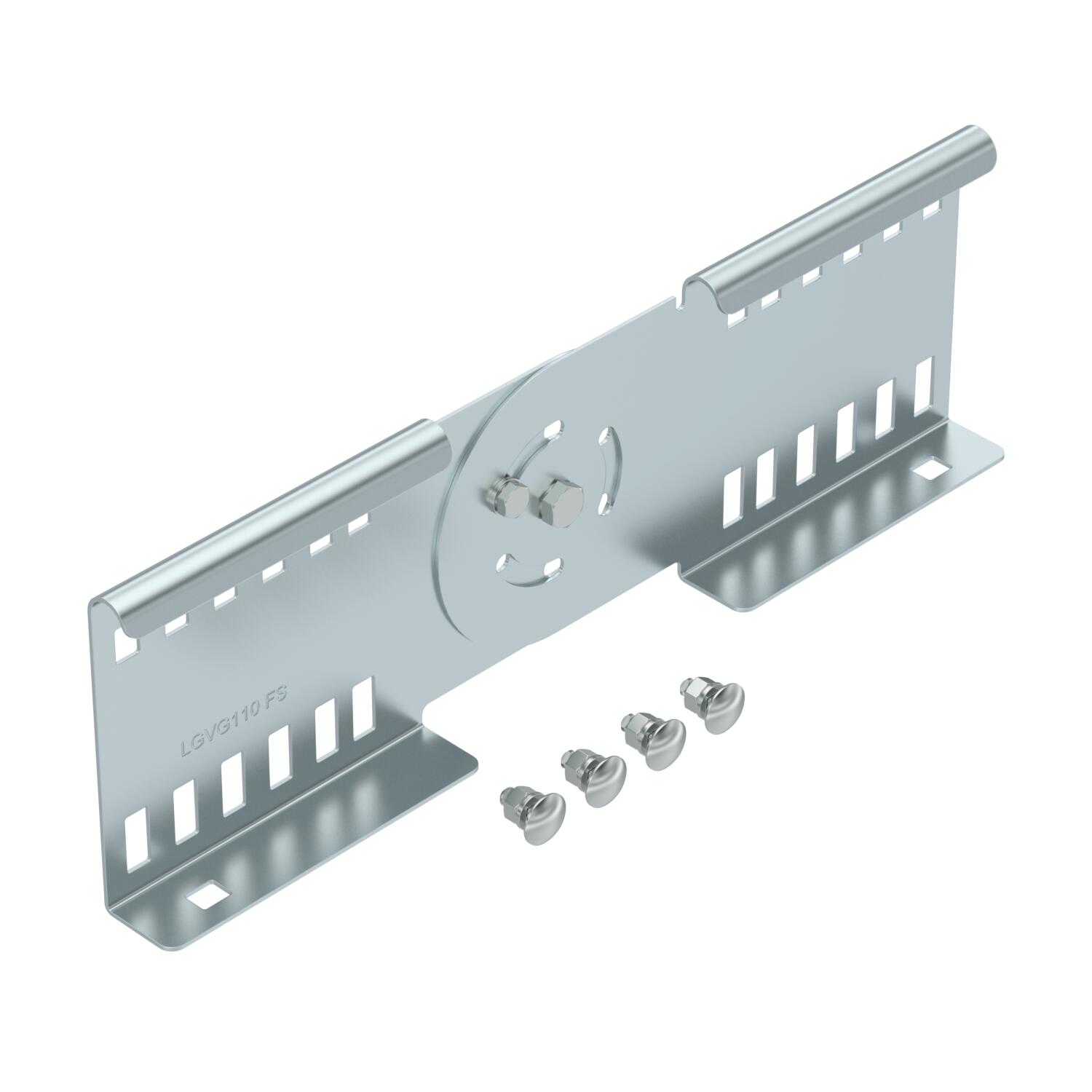

Adjustable connector as internal connector to join cable ladders and fittings with a side height of 110 mm. Angle can be adjusted vertically.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical yes Connection type Screw connector Dimension 114x360 Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray no Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight and angle connector Dimensions

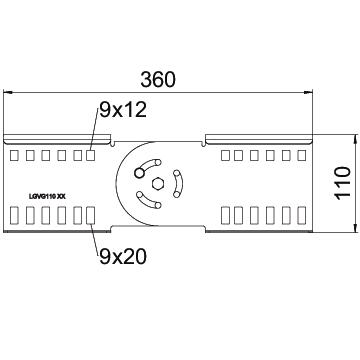

Height 110 mm Length 360 mm Width 28 mm - All types
