Adjustable connector DD

Item no. 6066941 | EAN 4012196084432

6066941 / SV DD
2 mm
Product description
Product description

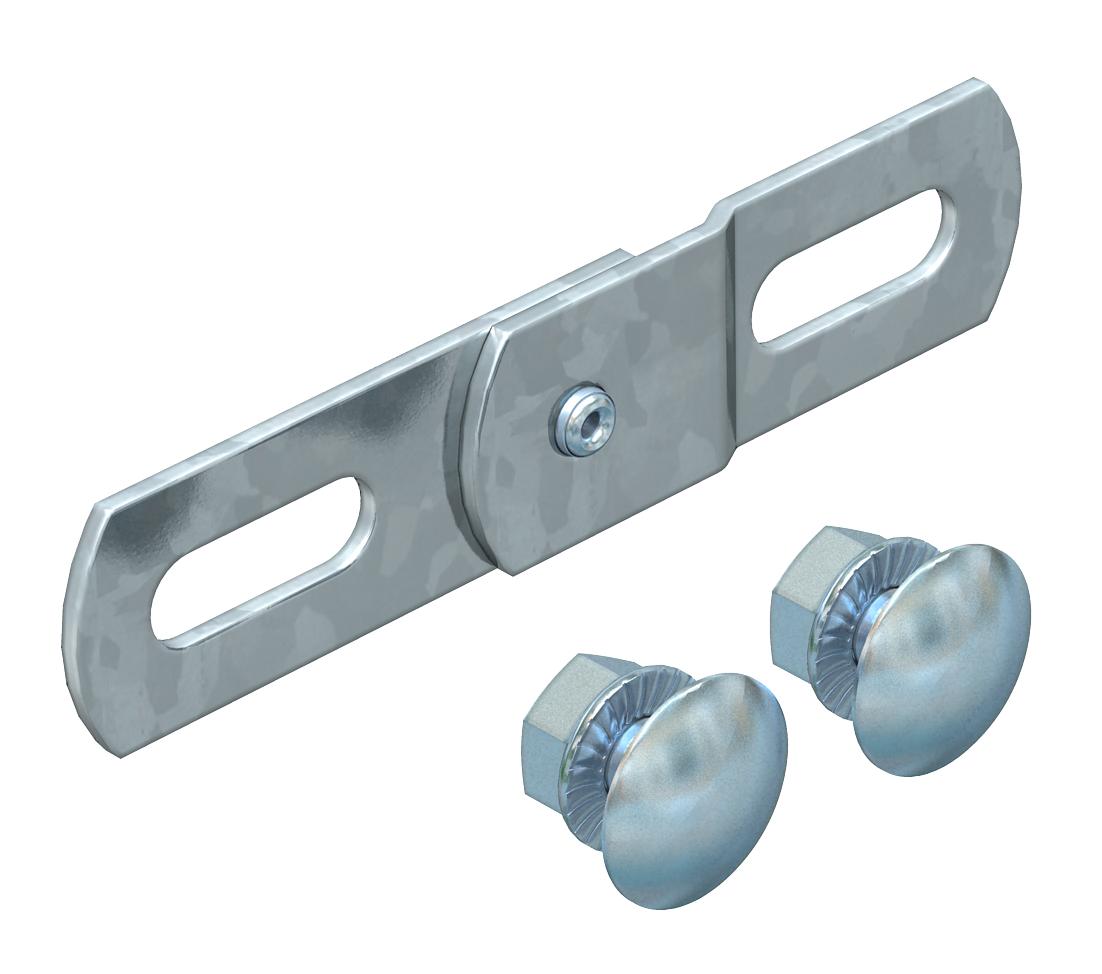

Hinge connector for vertical connections of BKK systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • BKK base profile, side height 104 mm
  • BKK base profile, side height 150 mm
  • BKK base profile, side height 200 mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical yes
Colour zinc
Connection type Screw connector

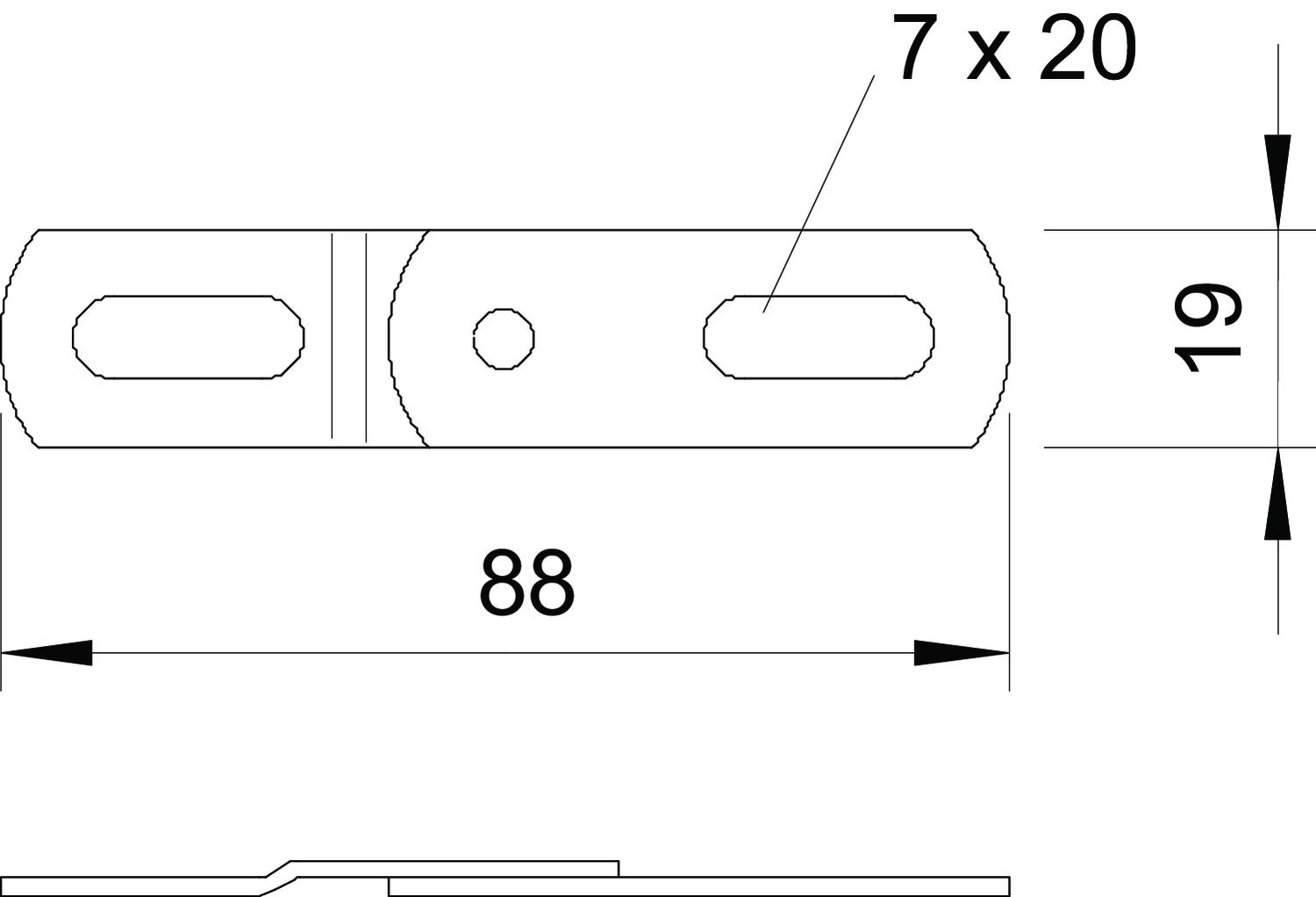

Dimension 88 x 19
Dimension 19x88
Material Steel
Plate thickness 2 mm
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray no
Surface Strip galvanised zinc/aluminium, Double Dip
All types

All types

Types Plate thickness Item no. Quantity SSU
SV DD 2 mm 6066941
50 piece
