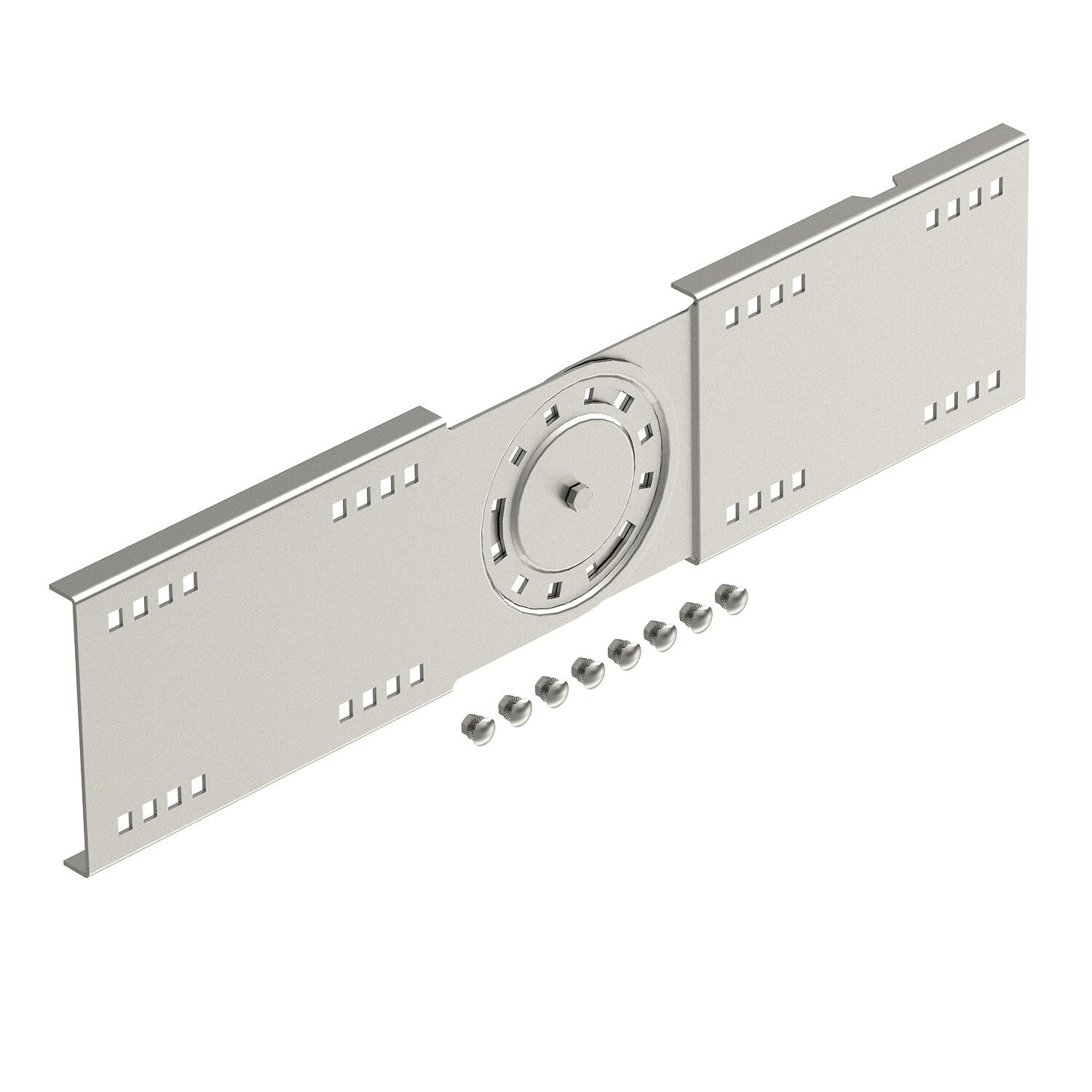

Adjustable connector A2

Item no. / Types	6227965 / WRGV 160 A2

Height	160 mm

Plate thickness	2.5 mm

Product description

Product description

Adjustable connector for wide span cable trays and ladders with a side height of 160 mm.

Technical data

Adjustable connector, horizontal	no
Articulated connector, vertical	yes
Connection type	Screw connector
Dimension	160x680
Maintain electrical functions	no
Material	Stainless steel
Plate thickness	2,5 mm

Rustproof steel, pickled	no
Suitable for cable ladder	yes
Suitable for cable tray	yes
Suitable for cable tray system height	160 mm
Suitable for mesh cable tray	no
Surface	Bright, treated
Version for	Straight connector

Height	160 mm
Length	680 mm

Width	20 mm

All types

Types	Height	Plate thickness	Item no.	Quantity	SSU
WRGV 160 A2	160 mm	2.5 mm	6227965	piece	2 piece

Downloads

Data sheet WRGV 160 A2 / 6227965 , 0.23MB , pdf

Declaration of conformity WRGV 160 A2 / 6227965 , 0.15MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf
