Adjustable bend, vertical, VS 60 FS 200 | 1.5
morepic-1 morepic-2 video-1

Adjustable bend, vertical, VS 60 FS

Item no. 6213227 | EAN 4012196149476

1.5 mm
Product description

Product description

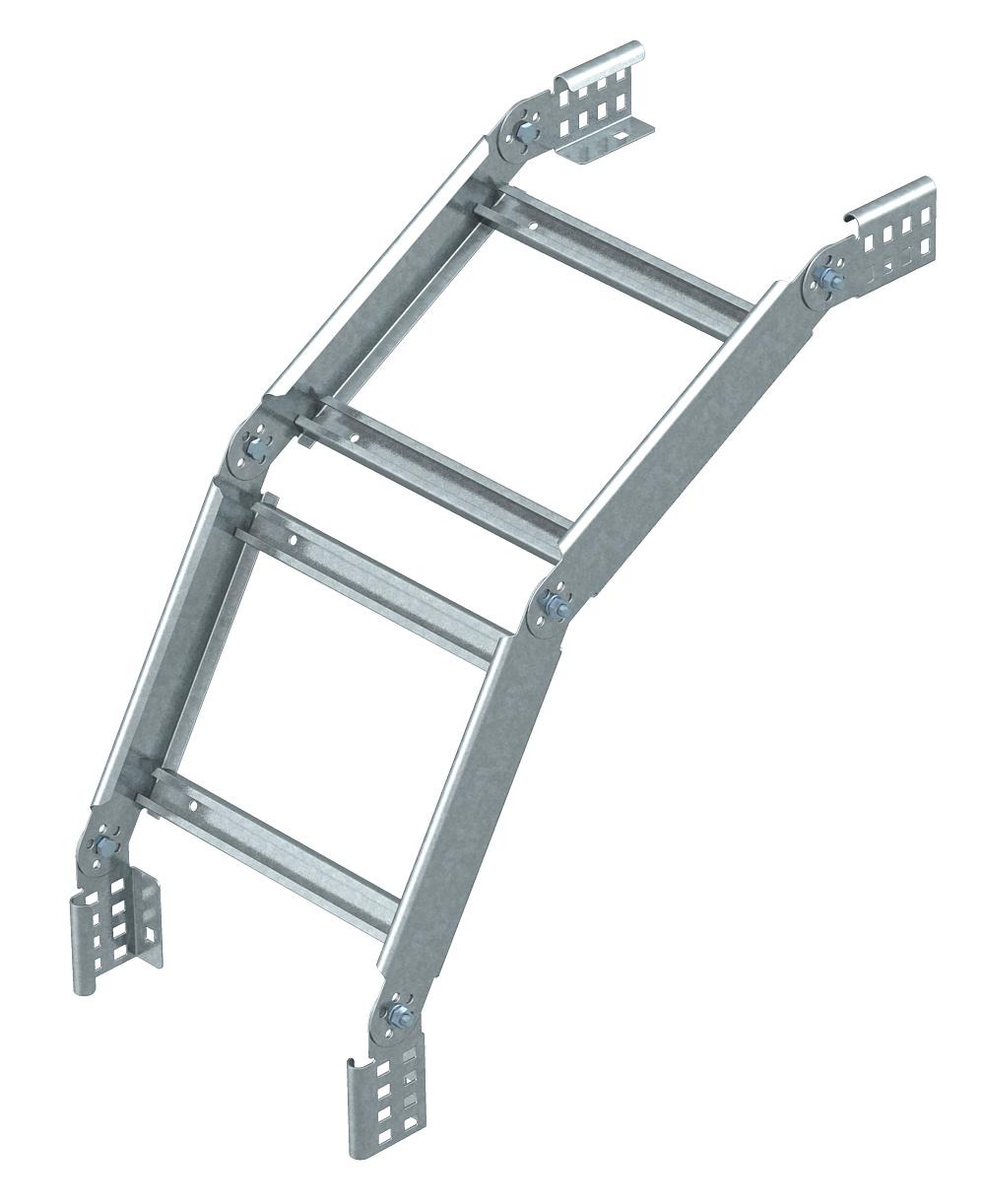

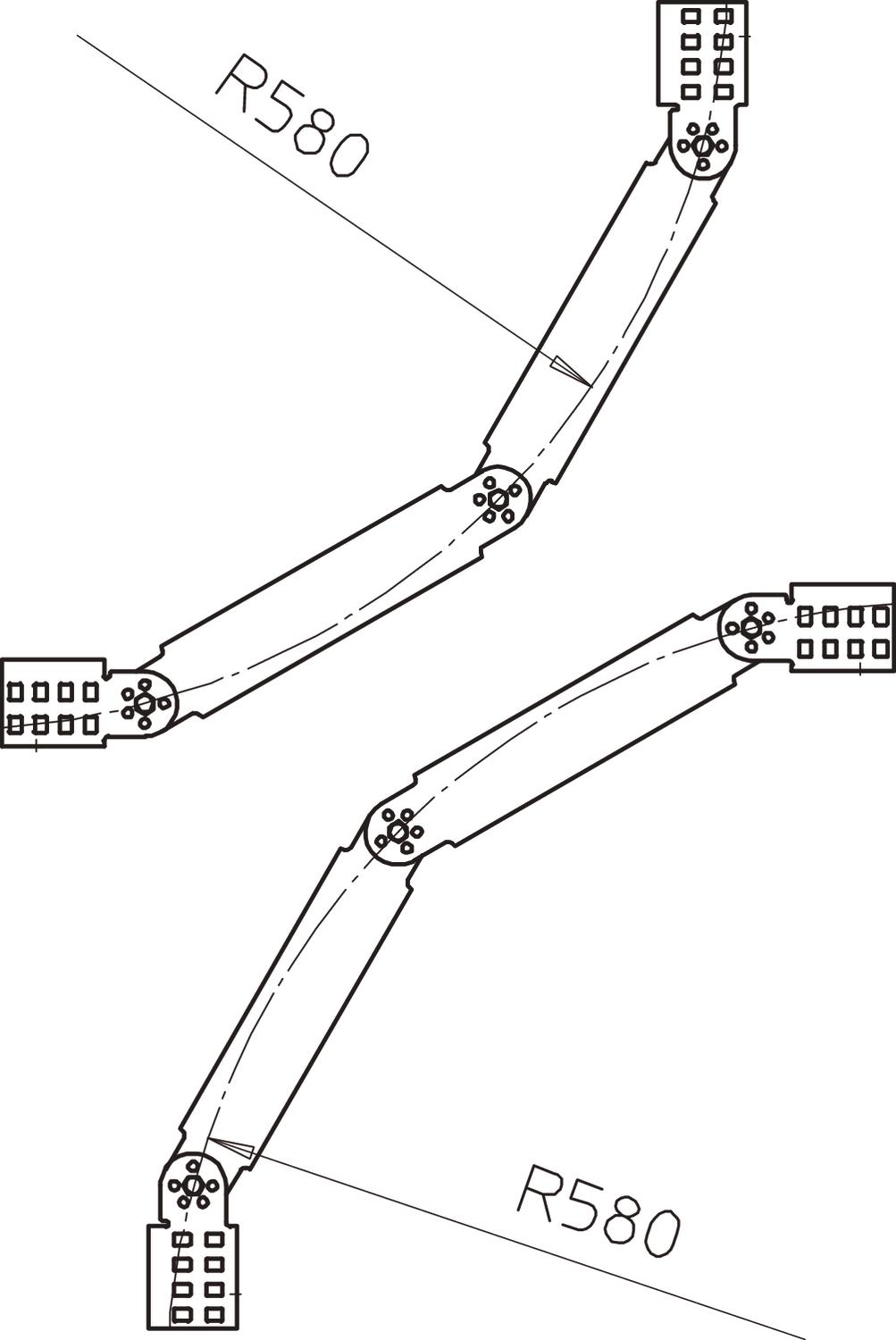

90° adjustable vertical bend, for cable ladders with medium-duty rung (VS) and a side height of 60 mm.
Additional widths are available on request.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Cable ladder, side height 60 mm
Technical data

Technical data

Bend (angle) 90°
Dimension 60x200
Height 60 mm
Hinged yes
Maintain electrical functions no
Material Steel
Rail thickness 1,5 mm
Rustproof steel, pickled no
Side perforation no
Side rail version Flat profile
Surface Strip galvanized
Version of the rungs Profile unperforated
Wide-span version no
Width 200 mm
All types

All types

Types Width Rail thickness Item no. Quantity SSU
LGBV 620 VS FS 200 mm 1.5 mm 6213227
1 piece
LGBV 630 VS FS 300 mm 1.5 mm 6213235
1 piece
LGBV 640 VS FS 400 mm 1.5 mm 6213243
1 piece
LGBV 650 VS FS 500 mm 1.5 mm 6213251
1 piece
LGBV 660 VS FS 600 mm 1.5 mm 6213278
1 piece
