Adjustable bend, vertical 110 FS
Item no. 6218822 | EAN 4012196160150
- Product description
-

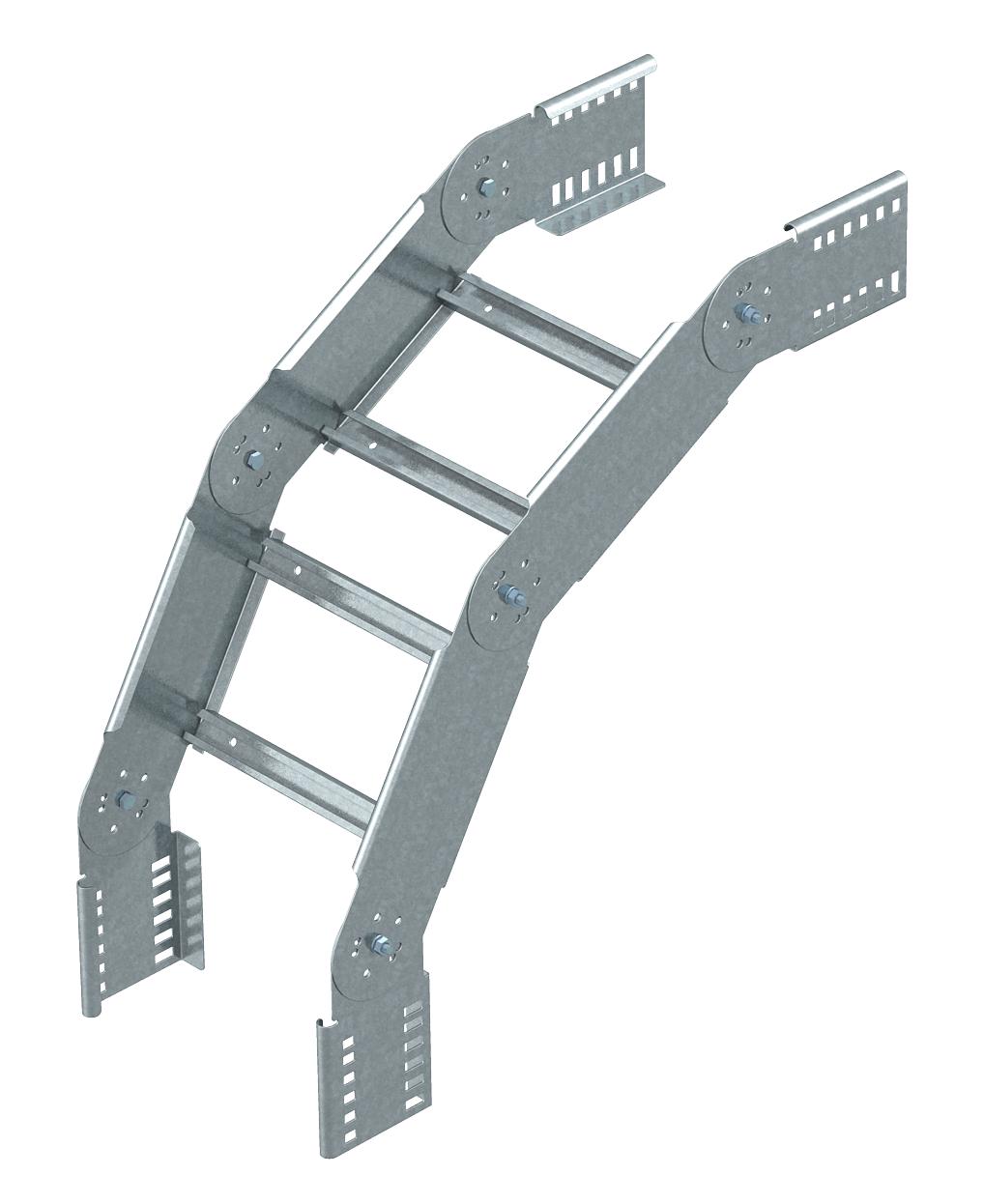

Product description90° adjustable vertical bend, for all cable ladder types with a side height of 110 mm.
-
- Technical data
-
Technical data
Bend (angle) 90° Colour zinc Dimension 110x200 Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile unperforated Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet LGBV 112 VS FS / 6218822 , 0.22MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LGBV 112 VS FS / 6218822 , 0.10MB , pdfUK Declaration of Conformity LGBV 112 VS FS / 6218822 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
