Adjustable bend element 60 FS
Item no. 6225454 | EAN 4012196444908
- Product description
-
Product description

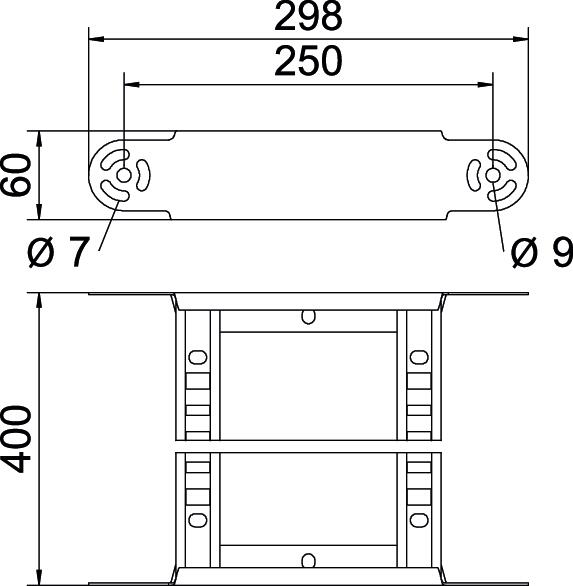

Adjustable bend element with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 60x400 Dimension B 400 mm Dimension R 400 mm Height 60 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece
Adjustable connector FS
LGVG 60 FS 6208941 10 piece - Downloads
-
