Adjustable bend element 60 FS
Item no. 6225450 | EAN 4012196444885
- Product description
-
Product description

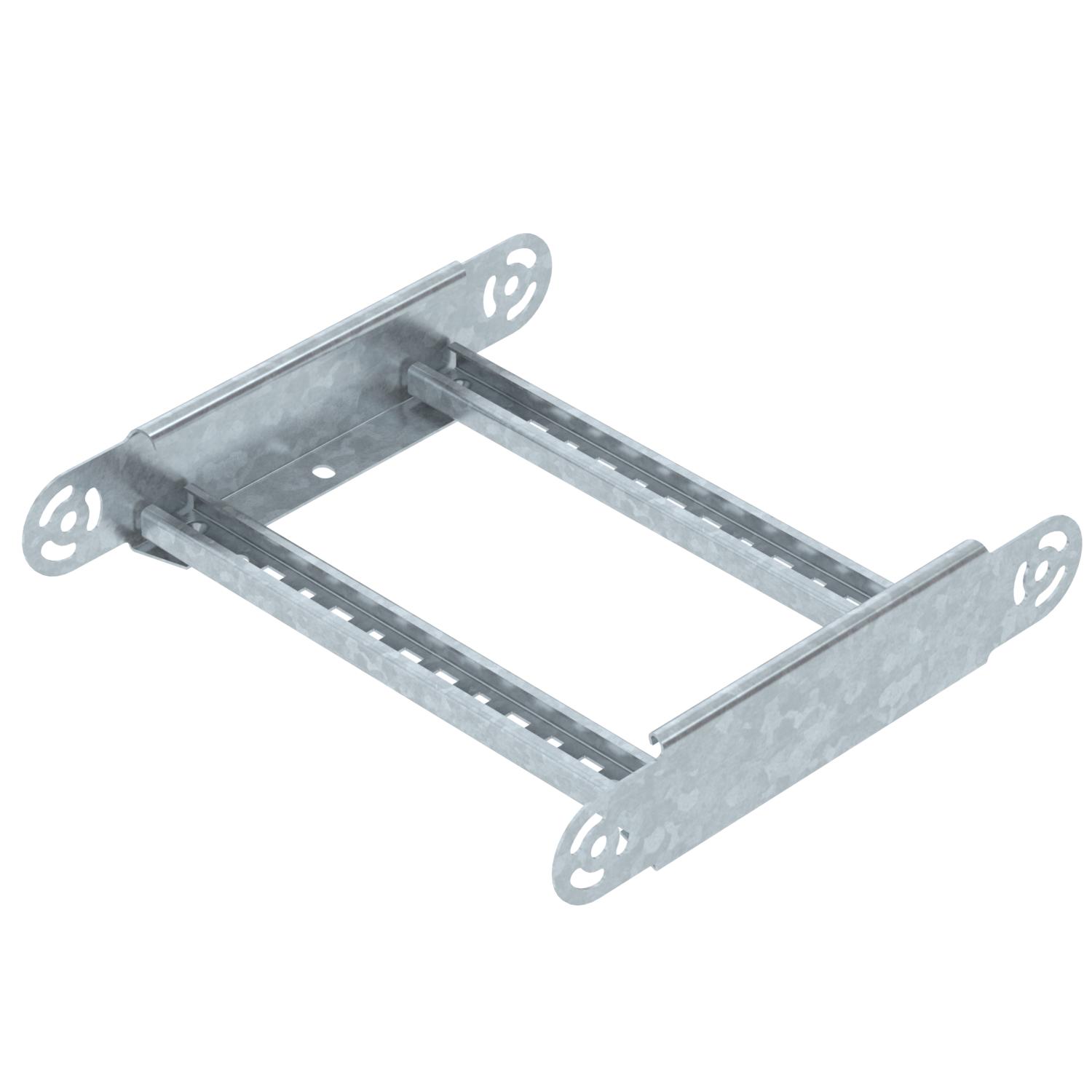

Adjustable bend element with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

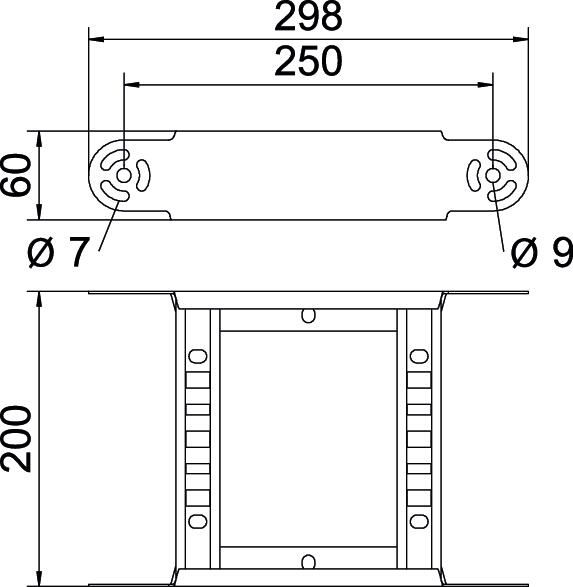

Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Dimension R 200 mm Height 60 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece

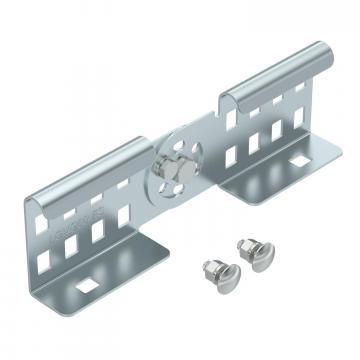

Adjustable connector FS
LGVG 60 FS 6208941 10 piece - Downloads
-
Data sheet LGBE 620 FS / 6225450 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 620 FS / 6225450 , 0.10MB , pdfUK Declaration of Conformity LGBE 620 FS / 6225450 , 0.09MB , pdfREACH Declaration of conformity LGBE 620 FS / 6225450 , 0.12MB , pdfRoHS Declaration of conformity LGBE 620 FS / 6225450 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
