Adjustable bend element 60 A4
Item no. 6225482 | EAN 4012196567300
- Product description
-
Product description
Adjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data
Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 60x300 Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Dimensions

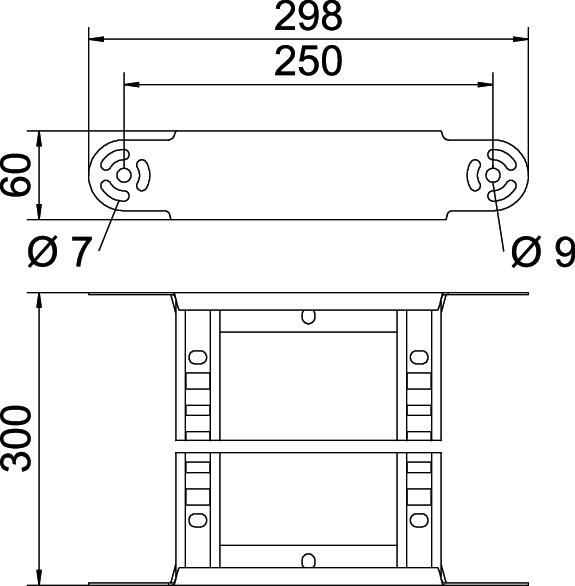

Dimension B 300 mm Dimension R 300 mm Height 60 mm Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut A4
FRSB 6x12 A4 6406142 100 piece
Adjustable connector A4
LGVG 60 A4 6208932 10 piece - Downloads
-
Data sheet LGBE 630 A4 / 6225482 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 630 A4 / 6225482 , 0.16MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
