Adjustable bend element 60 A2

Item no. / Types

Width

Rail thickness	1.5 mm

Product description

Product description

Adjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.

Technical data

Bend (angle)	Adjustable
Change of direction	Vertical, rising/falling
Connector version	Integrated connector

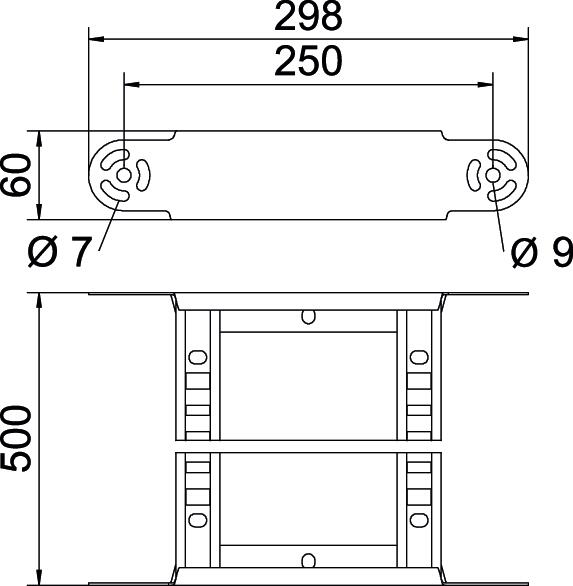

Dimension	60x500
Dimension B	500 mm
Dimension R	500 mm
Height	60 mm
Hinged	no
Maintain electrical functions	no

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
LGBE 620 A2	200 mm	1.5 mm	6225460	piece	1 piece
LGBE 630 A2	300 mm	1.5 mm	6225462	piece	1 piece
LGBE 640 A2	400 mm	1.5 mm	6225464	piece	1 piece
LGBE 650 A2	500 mm	1.5 mm	6225466	piece	1 piece
LGBE 660 A2	600 mm	1.5 mm	6225468	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Truss-head bolt with flange nut A2	FRSB 6x12 A2	6406138	piece	100 piece
Adjustable connector A2	LGVG 60 A2	6208947	piece	10 piece

Downloads

Data sheet LGBE 650 A2 / 6225466 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LGBE 650 A2 / 6225466 , 0.10MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
