- Product description
-
Product description

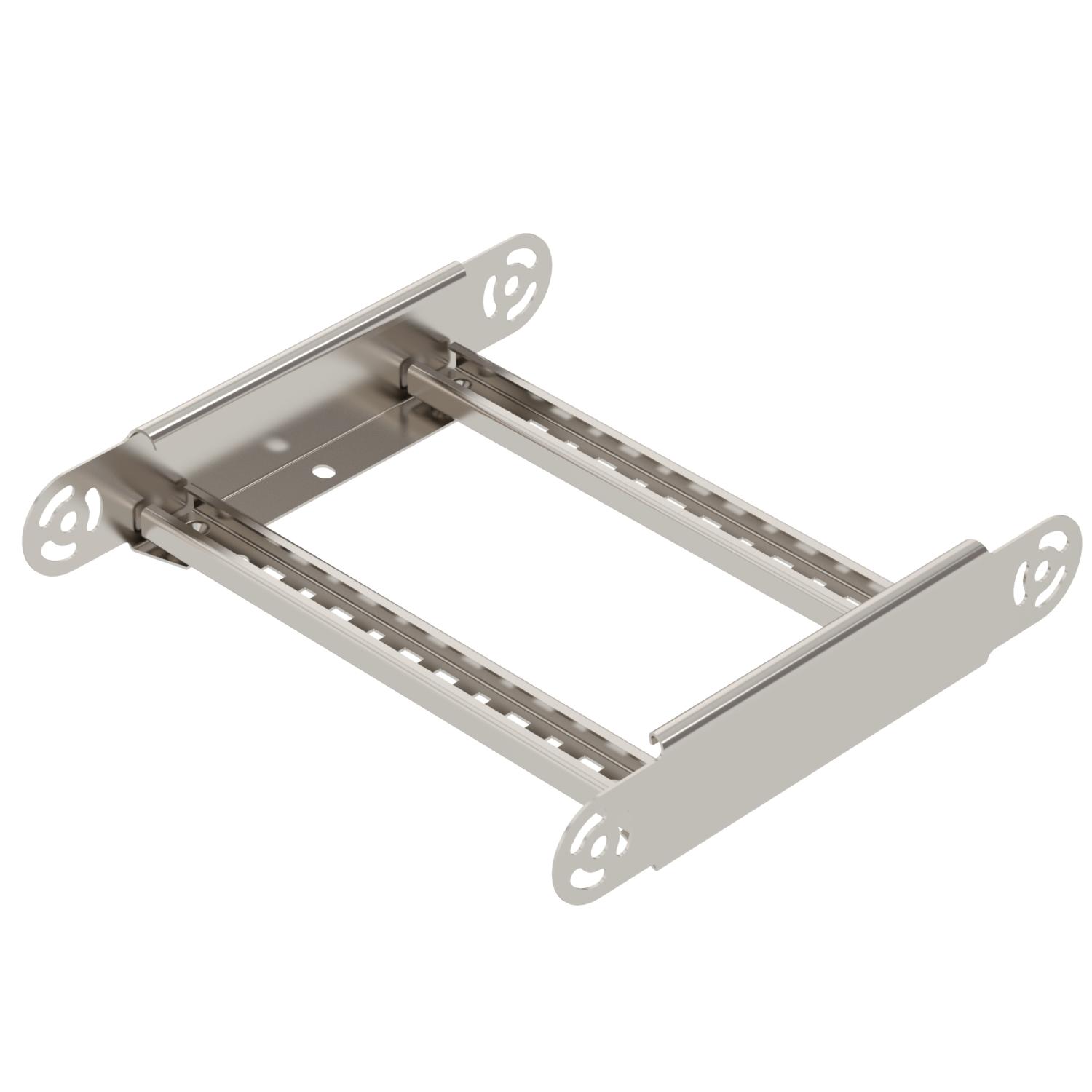

Adjustable bend element with welded rung for use in cable ladder types with a side height of 60 mm.
- Technical data
-
Technical data

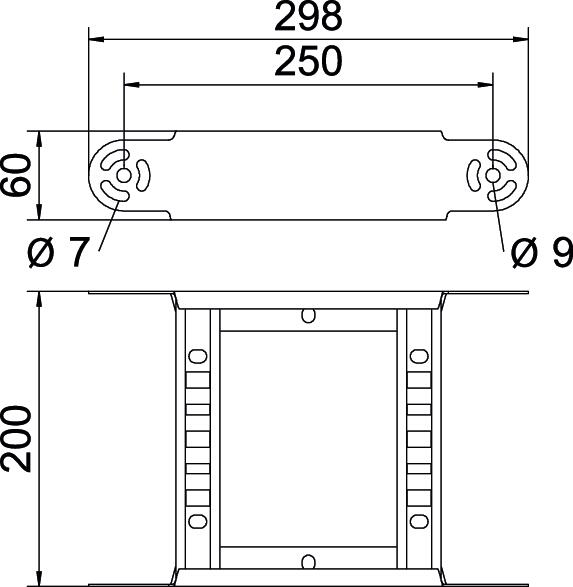

Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 60x200 Dimension B 200 mm Dimension R 200 mm Height 60 mm Hinged no Maintain electrical functions no Material Stainless steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Bright, treated Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
- Downloads
-
Data sheet LGBE 620 A2 / 6225460 , 0.20MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 620 A2 / 6225460 , 0.10MB , pdfUK Declaration of Conformity LGBE 620 A2 / 6225460 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
