Adjustable bend element 110 FS
Item no. 6225492 | EAN 4012196445059
- Product description
-
Product description
Adjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
-
- Technical data
-
Technical data

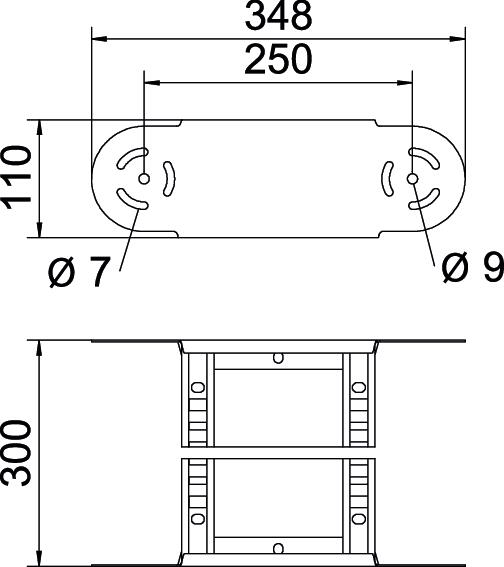

Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 110x300 Dimension B 300 mm Dimension R 300 mm Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 300 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece
Adjustable connector FS
LGVG 110 FS 6216650 10 piece - Downloads
-
