Adjustable bend element 110 FS
Item no. 6225490 | EAN 4012196445042
- Product description
-
Product description

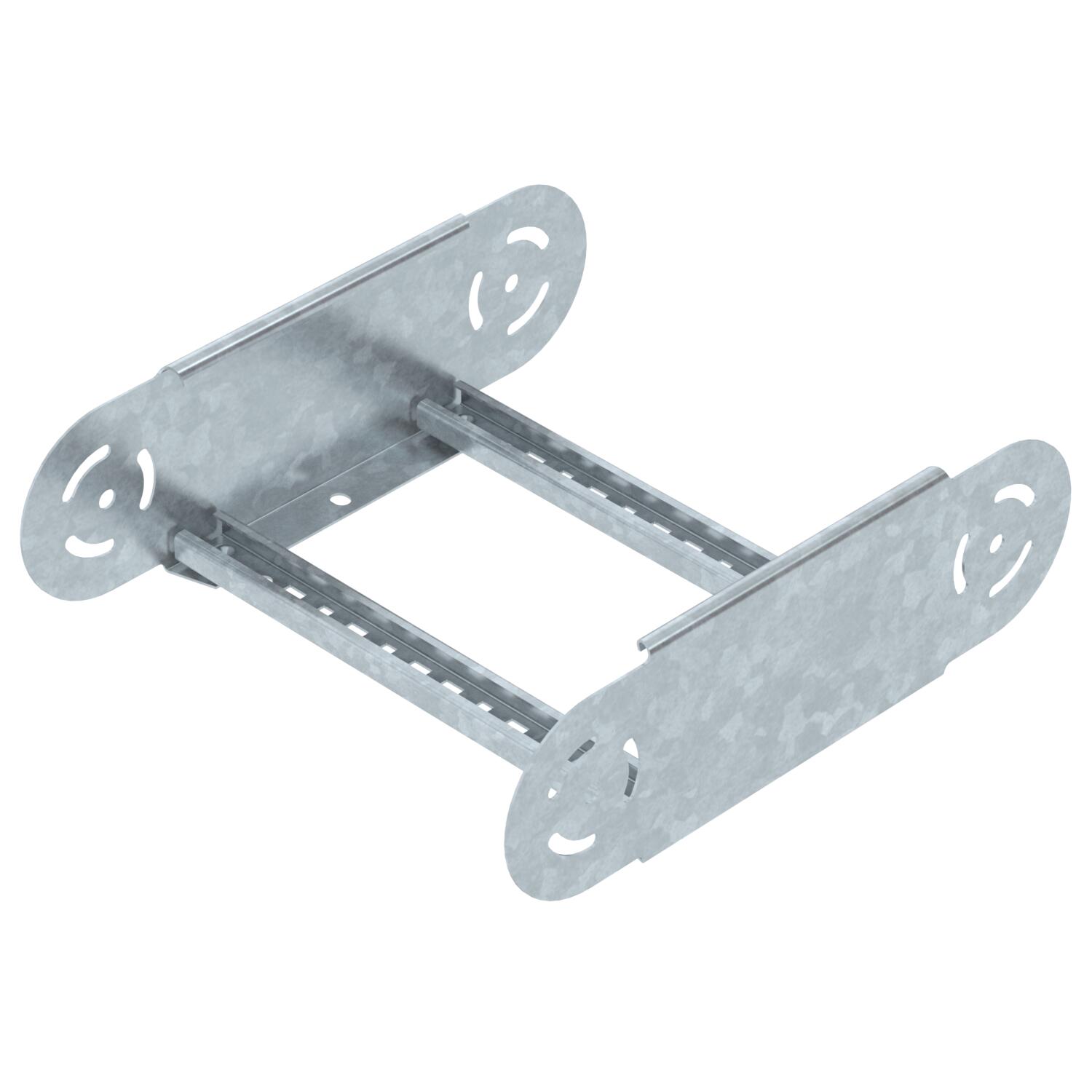

Adjustable bend element with welded rung for use in the cable ladder types with a side height of 110 mm.
-
- Technical data
-
Technical data

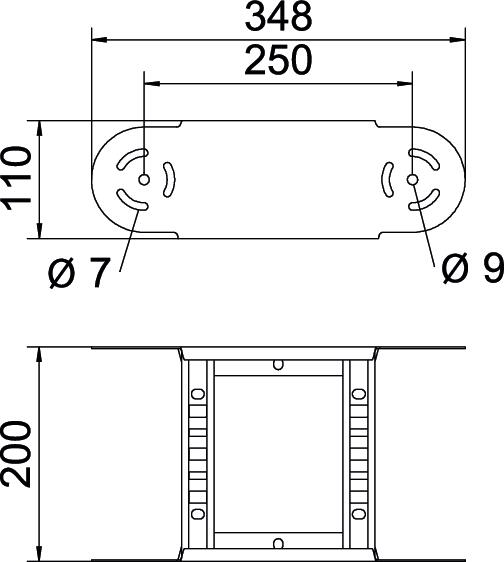

Bend (angle) Adjustable Change of direction Vertical, rising/falling Connector version Integrated connector Dimension 110x200 Dimension B 200 mm Dimension R 200 mm Height 110 mm Hinged yes Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 200 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece
Adjustable connector FS
LGVG 110 FS 6216650 10 piece - Downloads
-
Data sheet LGBE 1120 FS / 6225490 , 0.18MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity LGBE 1120 FS / 6225490 , 0.10MB , pdfUK Declaration of Conformity LGBE 1120 FS / 6225490 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
