Adhesive clip, without nail | 10 | 14 | 2 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip, without nail

Item no. 2215349 | EAN 4012195213796

Item no. / Types	2215349 / 4041

for cable diameter, min.	10 mm

for cable diameter, max.	14 mm

For nail diameter	2

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	10-14mm
Double clip	no
for cable diameter, max.	14 mm
for cable diameter, min.	10 mm
For nail diameter	2
Halogen-free	yes

Hardened	no
Impact-resistant	yes
Material	Polypropylene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

Dimensions

Dimension B	10 mm
Dimension H	13,3 mm

Dimension L	28 mm

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
4041	10 mm	14 mm	2	Light grey; RAL 7035	2215349	piece	100 piece

Downloads

Data sheet 4041 / 2215349 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 4041 / 2215349 , 0.06MB , pdf

Download

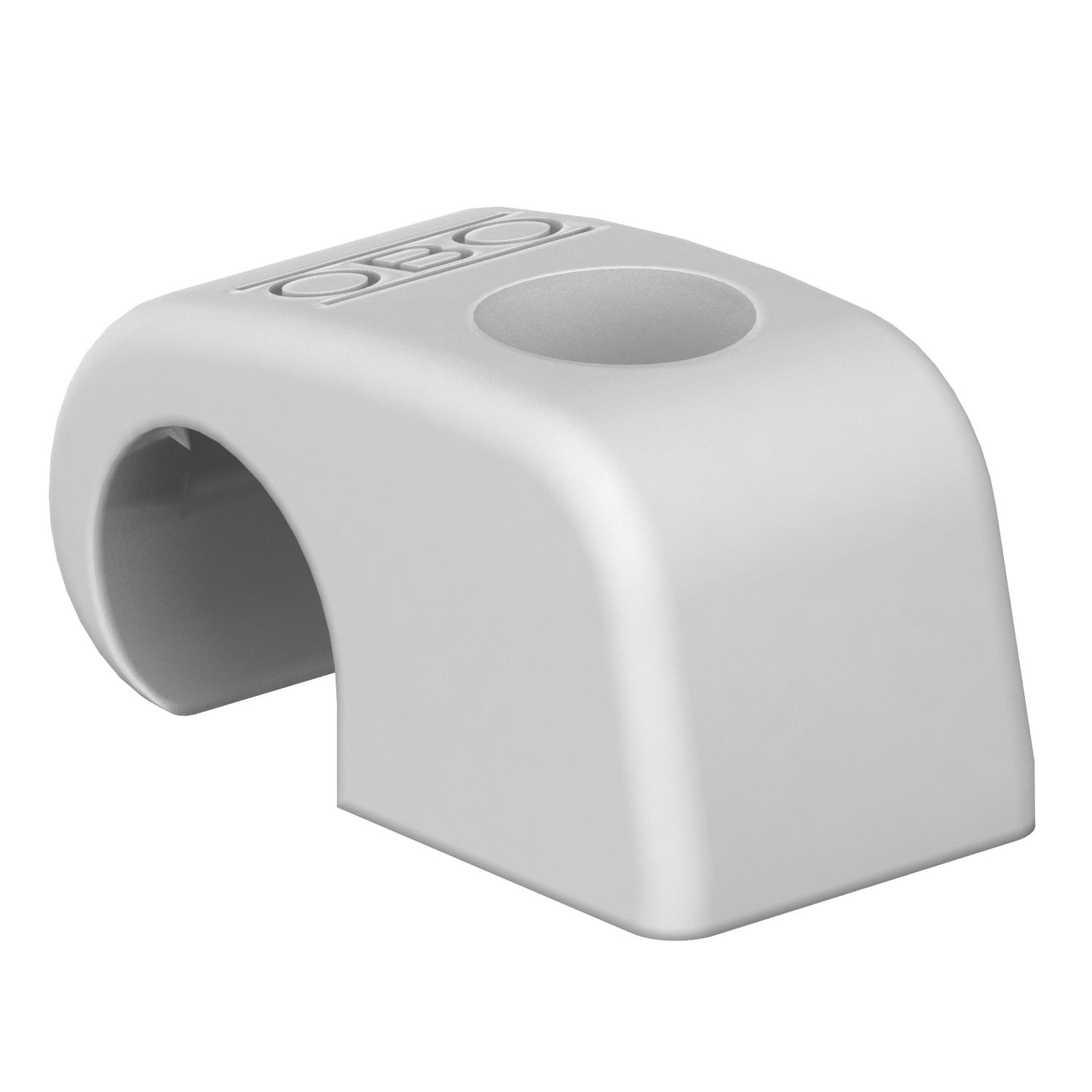

Product graphic 4041 / 2215349, 52.03 kB, jpg

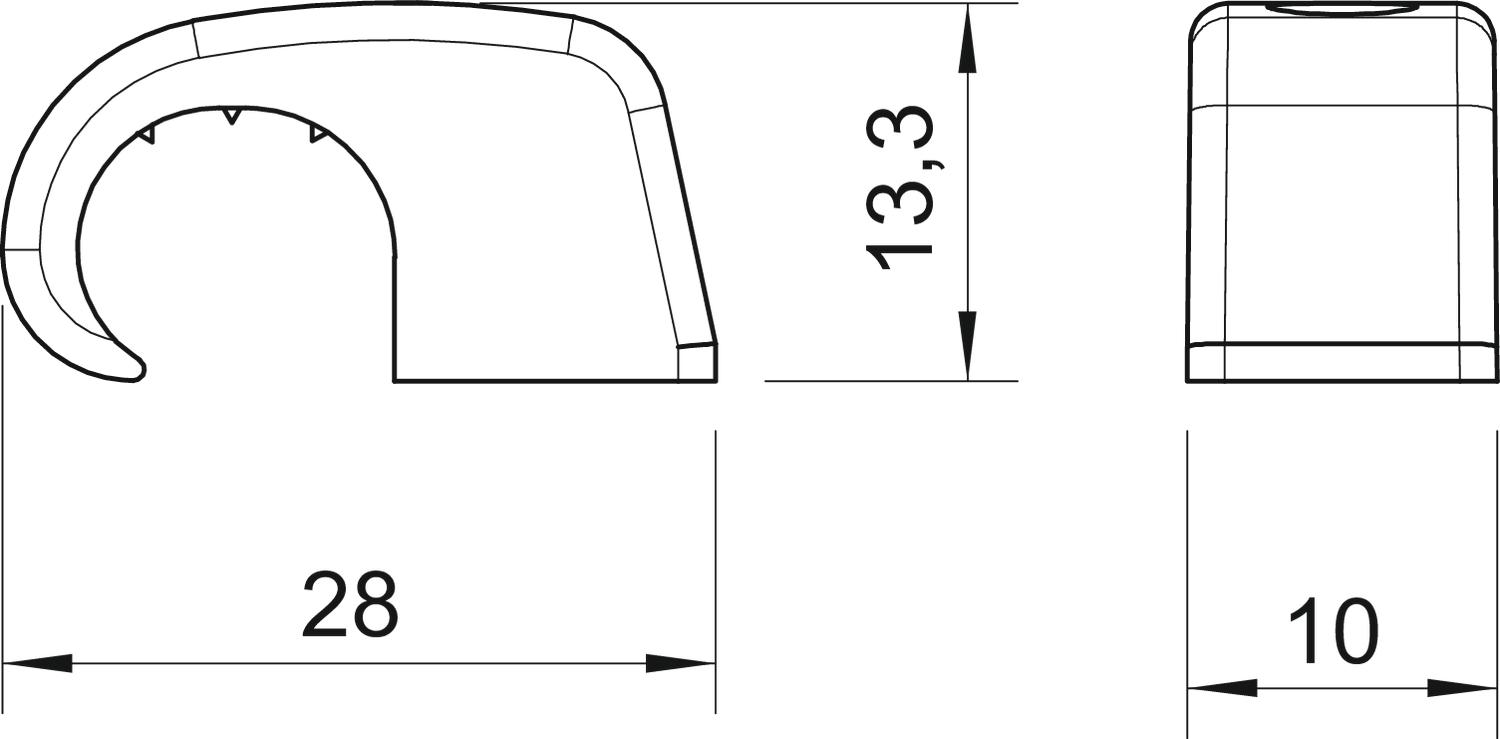

Scale drawing 4041 / 2215349, 47.73 kB, jpg

4041 / 2215349
