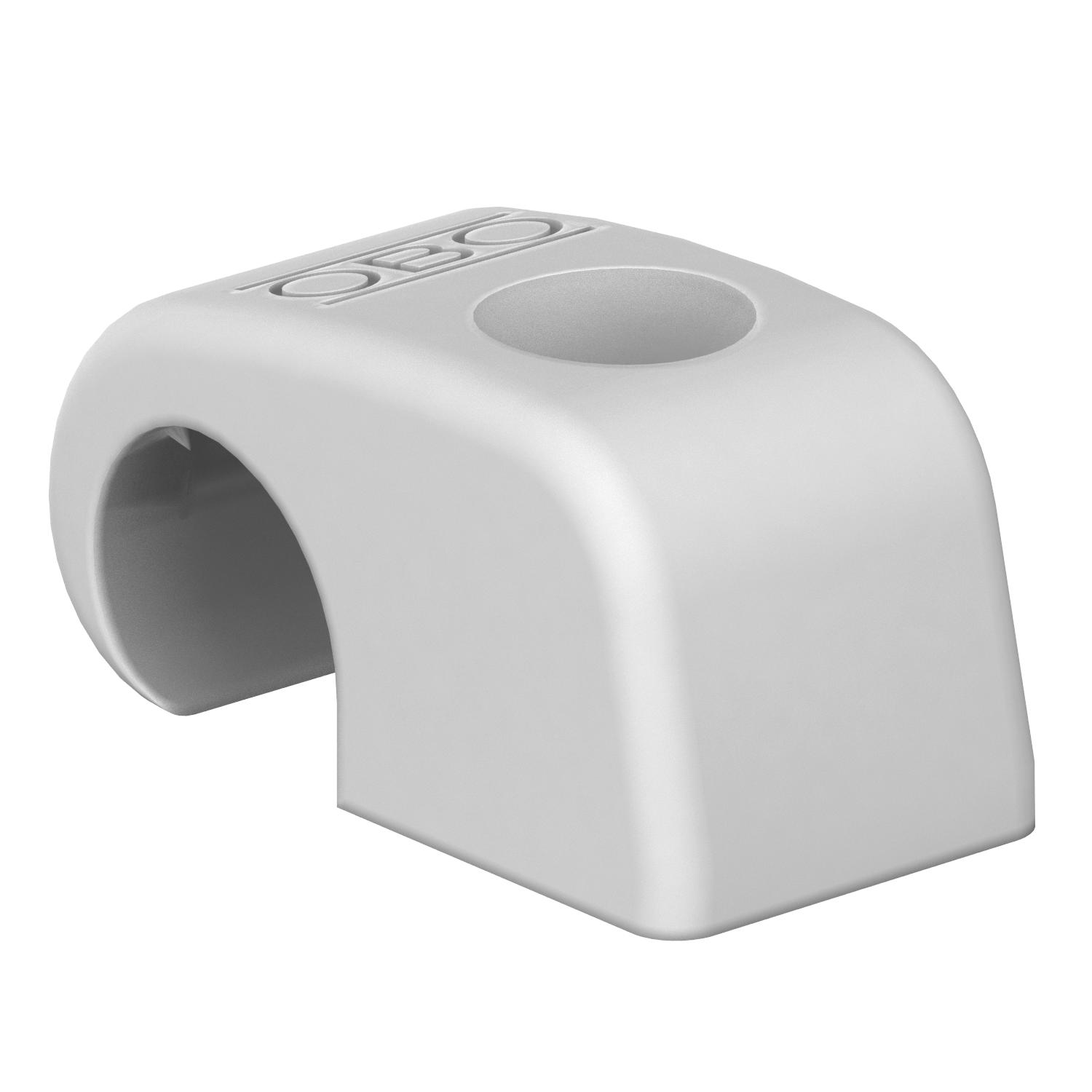

Adhesive clip, type 4039, without nail, light grey

Item no. 2214873 | EAN 4012195599777

4 mm
7 mm
2
Light grey; RAL 7035
Product description

Product description

Adhesive clip, for clamping to the cable, suitable for steel nails 2 mm.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension 4-7mm
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Pipe locking no
Shape Round (for round conductor)
With nail no

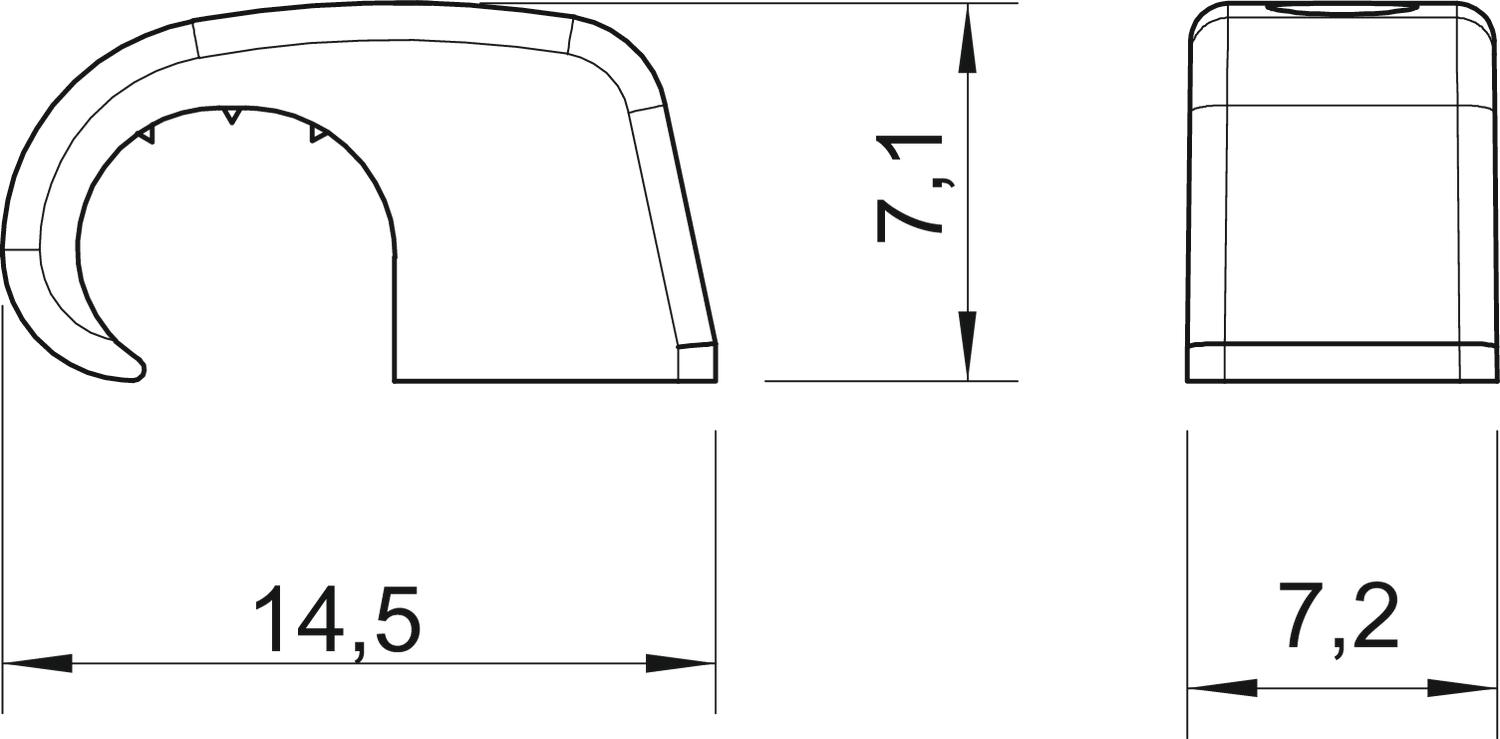

Dimensions

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
All types

All types

Types for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
4039 SP 4 mm 7 mm 2 Light grey; RAL 7035 2214873
200 piece
4039 4 mm 7 mm 2 Light grey; RAL 7035 2215306
100 piece
Downloads

Download

Download

Declaration of conformity 4039 SP / 2214873 , 0.06MB , pdf
