Adhesive clip, pure white 25 | 4 | 7 | 2,0 x 25 | Pure white; RAL 9010
morepic-1 morepic-2

Adhesive clip, pure white

Item no. 2228688 | EAN 4012195828556

25 mm
4 mm
7 mm
Pure white; RAL 9010
Product description

Product description

Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 4-7mm, L25
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2,0 x 25
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes

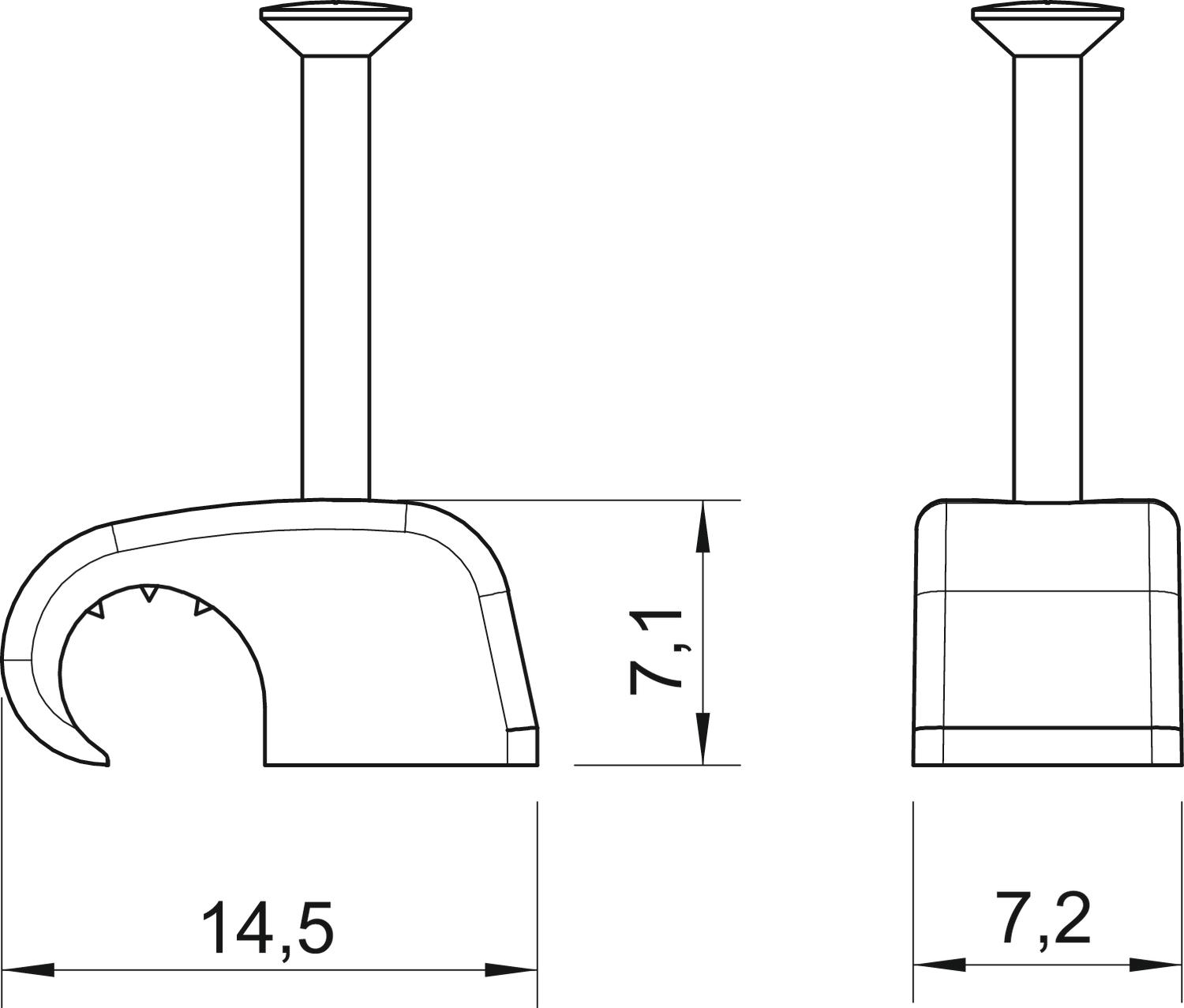

Dimensions

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2025 18 RW 25 mm 4 mm 7 mm 2,0 x 18 Pure white; RAL 9010 2228686
100 piece
2025 25 RW 25 mm 4 mm 7 mm 2,0 x 25 Pure white; RAL 9010 2228688
100 piece
