Adhesive clip, pure white 25 | 4 | 7 | 2,0 x 18 | Pure white; RAL 9010
morepic-1 morepic-2

Adhesive clip, pure white

Item no. 2228686 | EAN 4012195496519

25 mm
4 mm
7 mm
Pure white; RAL 9010
Product description
Product description
Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Dimension 4-7mm, L18

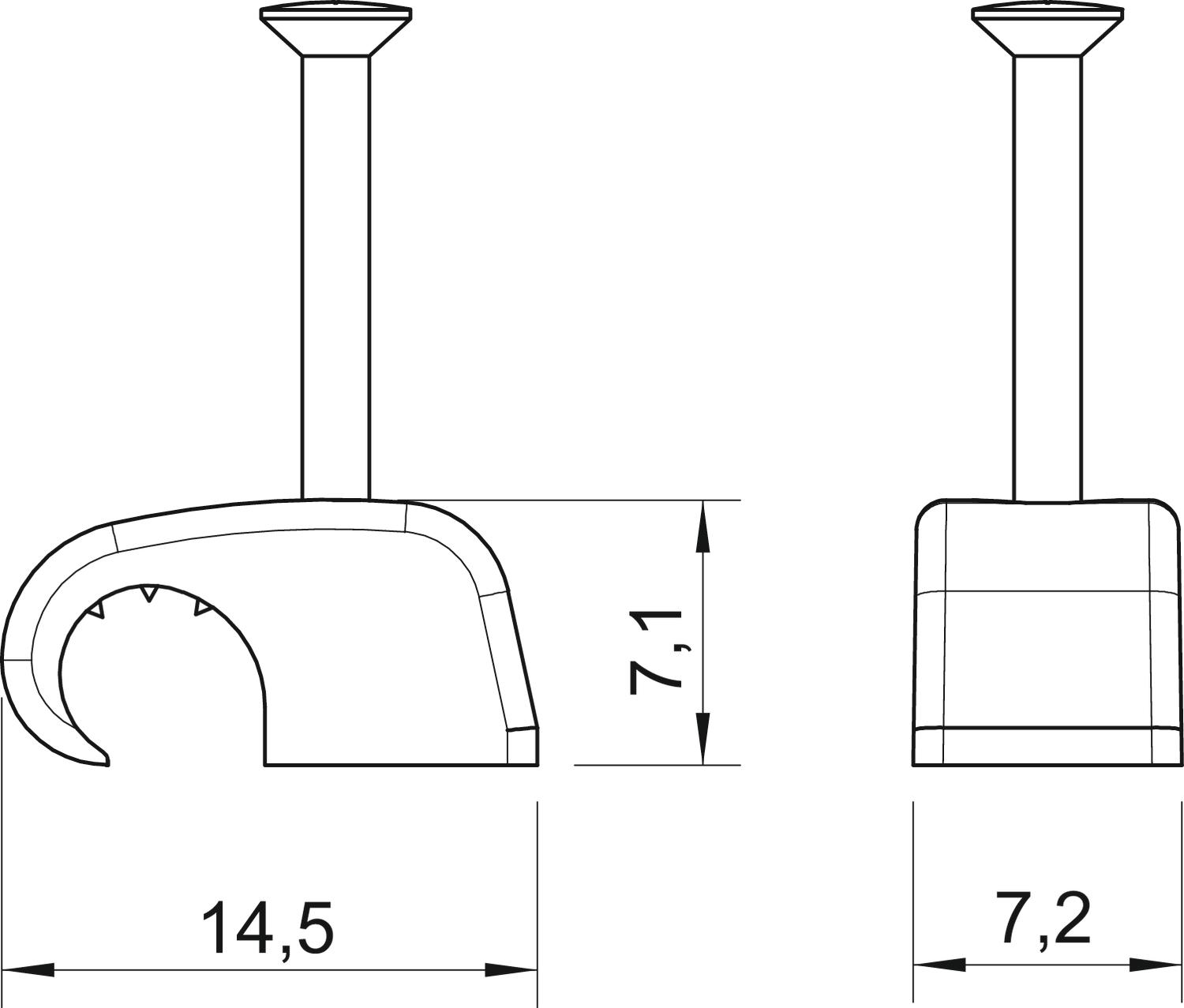

Dimension B 7,2 mm
Dimension H 7,1 mm
Dimension L 14,5 mm
Double clip no
for cable diameter, max. 7 mm
for cable diameter, min. 4 mm
For nail diameter 2,0 x 18
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 25 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2025 18 RW 25 mm 4 mm 7 mm 2,0 x 18 Pure white; RAL 9010 2228686
100 piece
2025 25 RW 25 mm 4 mm 7 mm 2,0 x 25 Pure white; RAL 9010 2228688
100 piece
