Adhesive clip 2028, light grey 40 | 14 | 17 | 2,0 x 40 | Light grey; RAL 7035

morepic-1

morepic-2

Adhesive clip 2028, light grey

Item no. 2228904 | EAN 4012195220039

Item no. / Types	2228904 / 2028 40 LGR

Nail length	40 mm

for cable diameter, min.	14 mm

for cable diameter, max.	17 mm

For nail diameter	2,0 x 40

Colour	Light grey; RAL 7035

Product description

Product description

Adhesive clip, for clamping to the cable.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	14-17mm, L40
Double clip	no
for cable diameter, max.	17 mm
for cable diameter, min.	14 mm
For nail diameter	2,0 x 40
Halogen-free	yes

Hardened	yes
Impact-resistant	yes
Material	Polypropylene
Nail length	40 mm
Pipe locking	no
Shape	Round (for round conductor)
With nail	yes

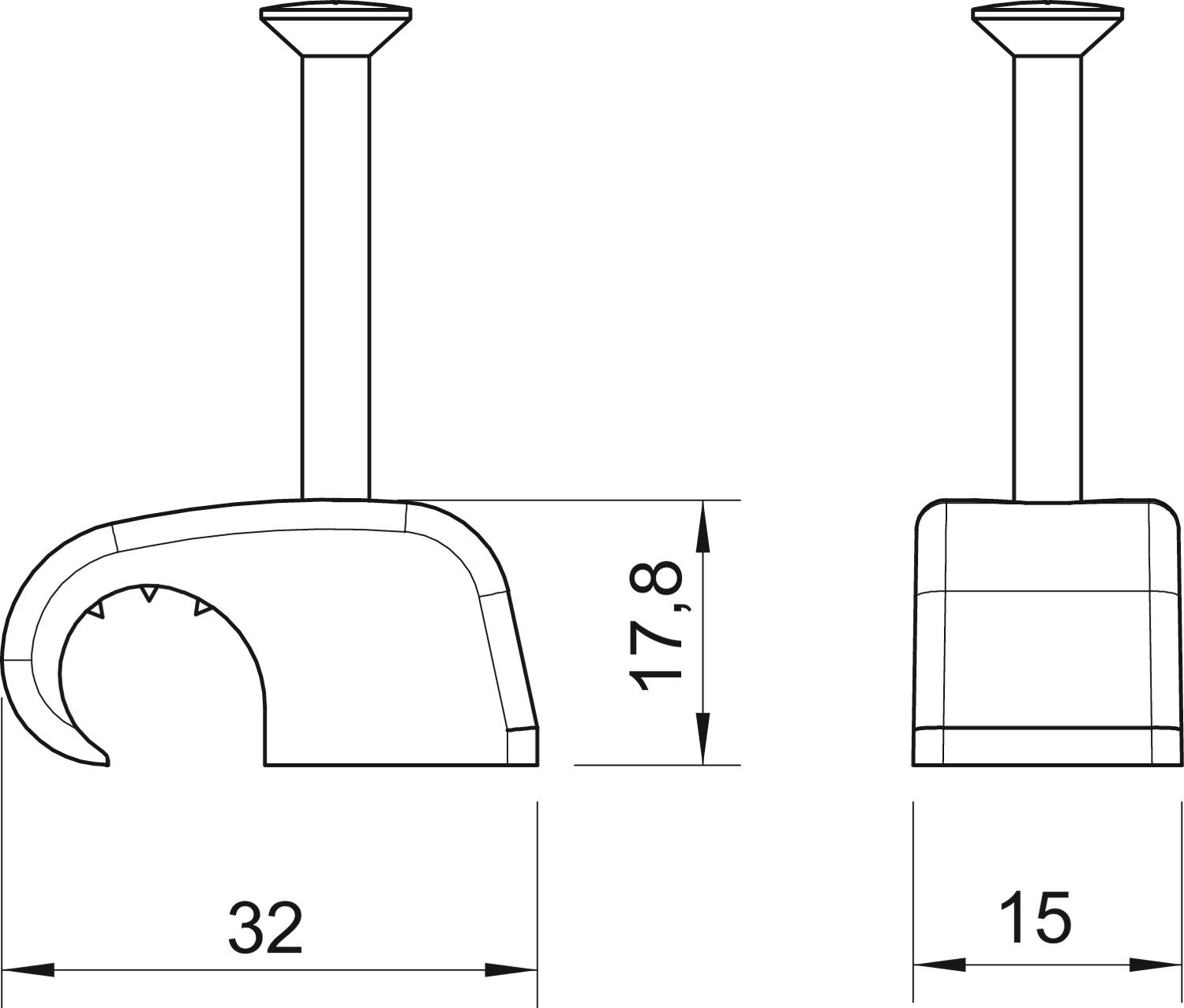

Dimensions

Dimension B	15 mm
Dimension H	17,8 mm

Dimension L	32 mm

All types

All types

Types	Nail length	for cable diameter, min.	for cable diameter, max.	For nail diameter	Colour	Item no.	Quantity	SSU
2028 40 LGR	40 mm	14 mm	17 mm	2,0 x 40	Light grey; RAL 7035	2228904	piece	100 piece

Downloads

Data sheet 2028 40 LGR / 2228904 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2028 40 LGR / 2228904 , 0.06MB , pdf

Download

Product graphic 2028 40 LGR / 2228904, 56.72 kB, jpg

Scale drawing 2028 40 LGR / 2228904, 59.58 kB, jpg

2028 40 LGR / 2228904
