Adhesive clip 2027, light grey | 10 | 14 | 2,0 x 30 | Light grey; RAL 7035
morepic-1 morepic-2

Adhesive clip 2027, light grey

Item no. 2228831 | EAN 4012195219910

10 mm
14 mm
Light grey; RAL 7035
Product description

Product description

Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

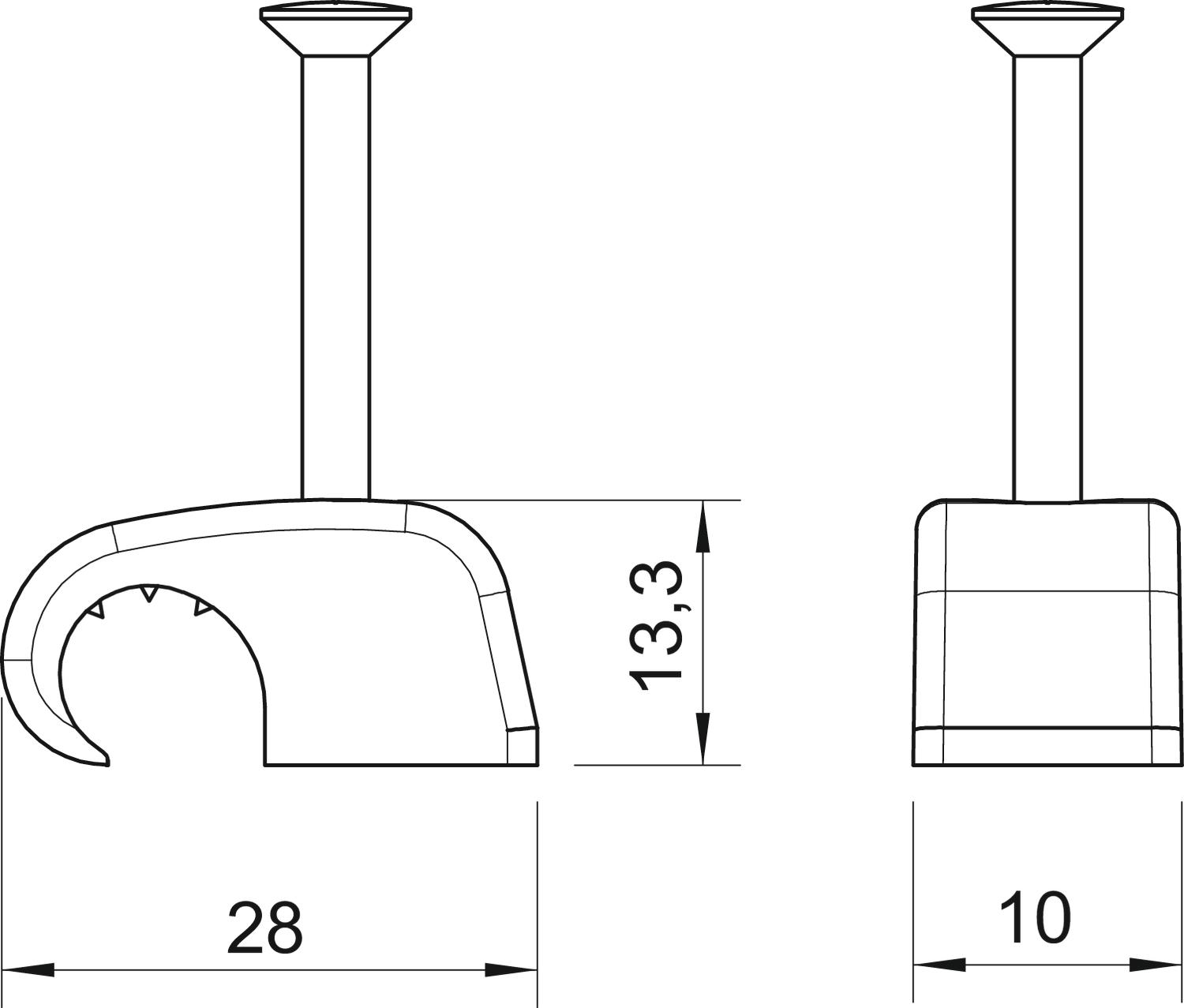

Dimension 10-14mm, L30
Dimension B 10 mm
Dimension H 13,3 mm
Dimension L 28 mm
Double clip no
for cable diameter, max. 14 mm
for cable diameter, min. 10 mm
For nail diameter 2,0 x 30
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2027 25 LGR 25 mm 10 mm 14 mm 2,0 x 25 Light grey; RAL 7035 2228823
100 piece
2027 30 LGR - 10 mm 14 mm 2,0 x 30 Light grey; RAL 7035 2228831
100 piece
2027 40 LGR - 10 mm 14 mm 2,0 x 40 Light grey; RAL 7035 2228858
100 piece
