Adhesive clip 2026, light grey 45 | 7 | 12 | 2 x 45 | Light grey; RAL 7035
morepic-1 morepic-2

Adhesive clip 2026, light grey

Item no. 2228467 | EAN 4012195828617

7 mm
12 mm
Light grey; RAL 7035
Product description
Product description
Adhesive clip, for clamping to the cable.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

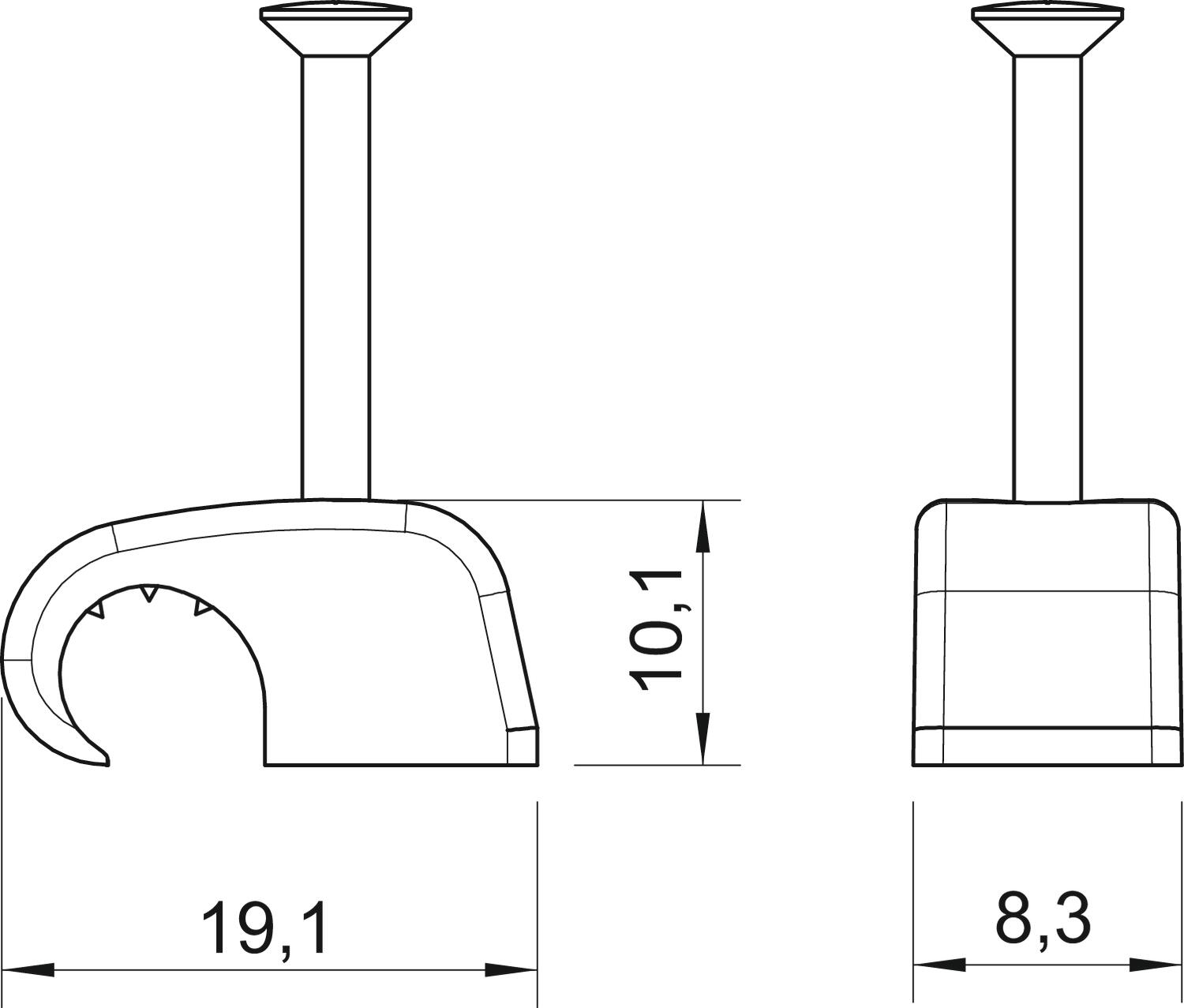

Dimension 7-12mm, L45
Dimension B 8,3 mm
Dimension H 10,1 mm
Dimension L 19,1 mm
Double clip no
for cable diameter, max. 12 mm
for cable diameter, min. 7 mm
For nail diameter 2 x 45
Halogen-free yes
Hardened yes
Impact-resistant yes
Material Polypropylene
Nail length 45 mm
Pipe locking no
Shape Round (for round conductor)
With nail yes
All types

All types

Types Nail length for cable diameter, min. for cable diameter, max. For nail diameter Colour Item no. Quantity SSU
2026 25 LGR SP 25 mm 7 mm 12 mm 2 x 25 Light grey; RAL 7035 2228432
200 piece
2026 35 LGR SP 35 mm 7 mm 12 mm 2 x 35 Light grey; RAL 7035 2228440
200 piece
2026 45 LGR SP 45 mm 7 mm 12 mm 2 x 45 Light grey; RAL 7035 2228467
200 piece
2026 18 LGR 18 mm 7 mm 12 mm 2 x 18 Light grey; RAL 7035 2228718
100 piece
2026 25 LGR 25 mm 7 mm 12 mm 2 x 25 Light grey; RAL 7035 2228726
100 piece
2026 35 LGR 35 mm 7 mm 12 mm 2 x 35 Light grey; RAL 7035 2228734
100 piece
2026 45 LGR 45 mm 7 mm 12 mm 2 x 45 Light grey; RAL 7035 2228750
100 piece
Downloads

Download

Download

EU declaration of conformity 2026 45 LGR SP / 2228467 , 0.06MB , pdf
Download
REACH Declaration of conformity 2026 45 LGR SP / 2228467 , 0.12MB , pdf
Download
RoHS Declaration of conformity 2026 45 LGR SP / 2228467 , 0.12MB , pdf
Download

2026 45 LGR SP / 2228467
