- Product description
-
Product descriptionAdhesive clip, for clamping to the cable.
- Technical data
-
Technical data

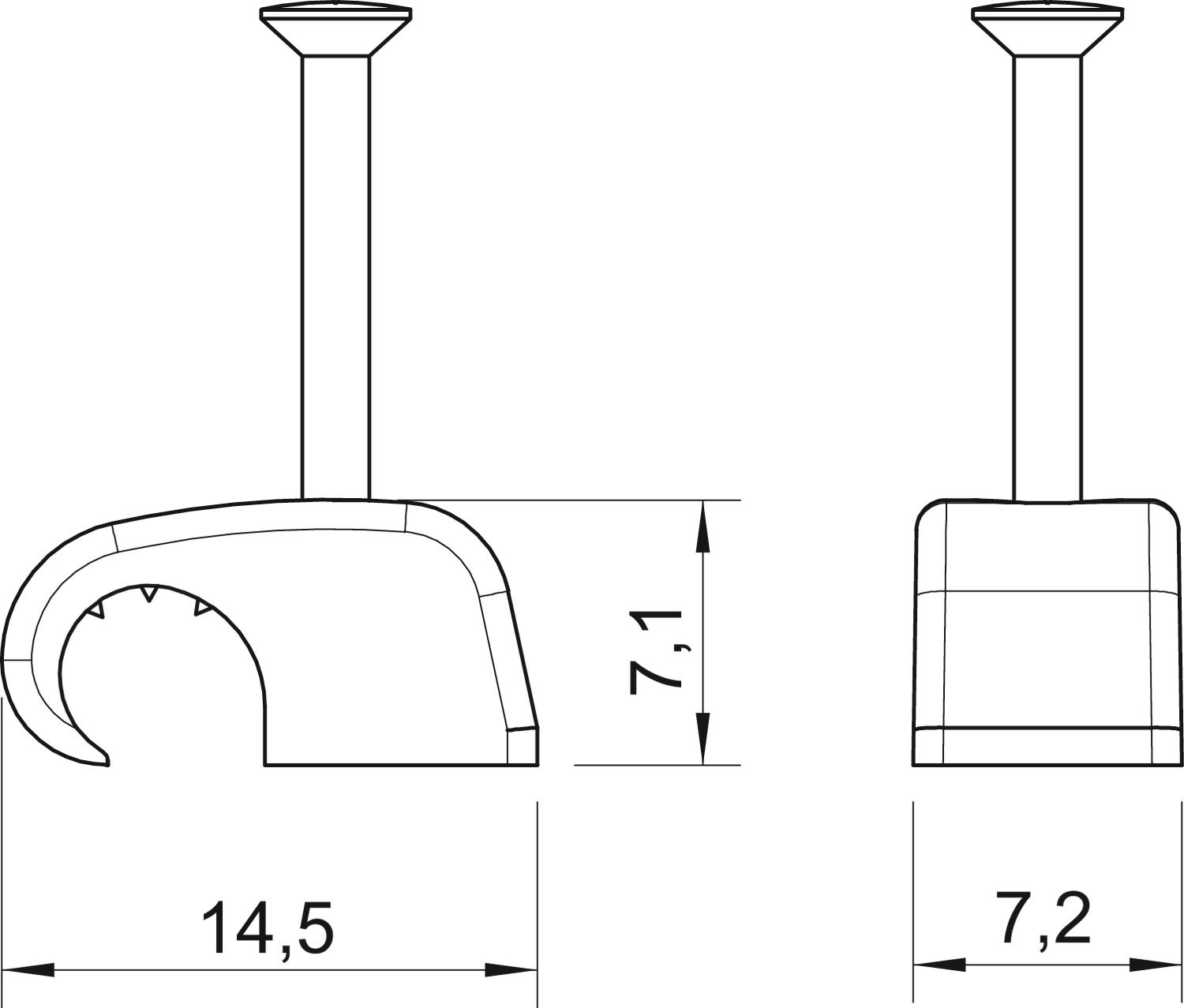

Colour Light grey; RAL 7035 Dimension 4-7mm, L30 Dimension B 7,2 mm Dimension H 7,1 mm Dimension L 14,5 mm Double clip no for cable diameter, max. 7 mm for cable diameter, min. 4 mm For nail diameter 2 x 30 Halogen-free yes Hardened yes Impact-resistant yes Material Polypropylene Nail length 30 mm Pipe locking no Shape Round (for round conductor) With nail yes - All types
-
All types
- Downloads
-
Data sheet 2025 30 LGR / 2228637 , 0.19MB , pdfEU declaration of conformity 2025 30 LGR / 2228637 , 0.06MB , pdfREACH Declaration of conformity 2025 30 LGR / 2228637 , 0.12MB , pdfRoHS Declaration of conformity 2025 30 LGR / 2228637 , 0.12MB , pdf
