Note: This article is discontinued.

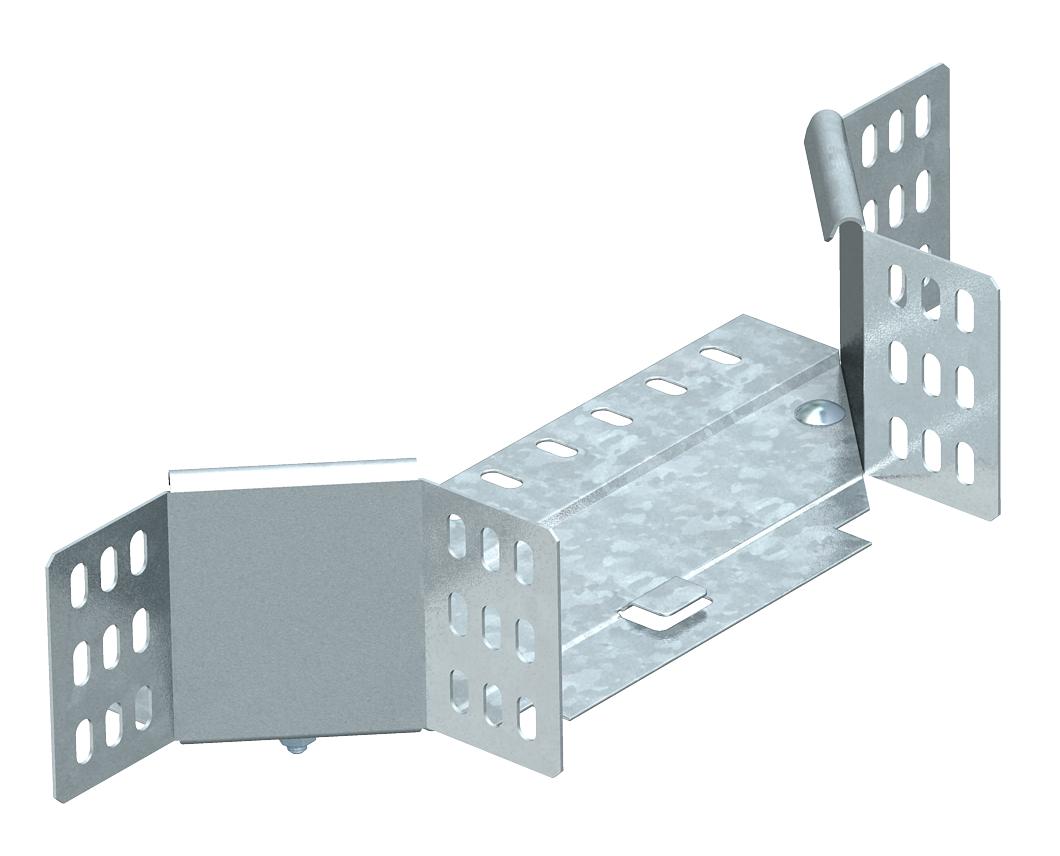

Add-on tee 85 FT
Item no. 7122213 | EAN 4012196813377
- Product description
-
Product description
Add-on tee for horizontal and vertical use. For all cable tray types of 85 mm side height.
-
- Technical data
-
Technical data

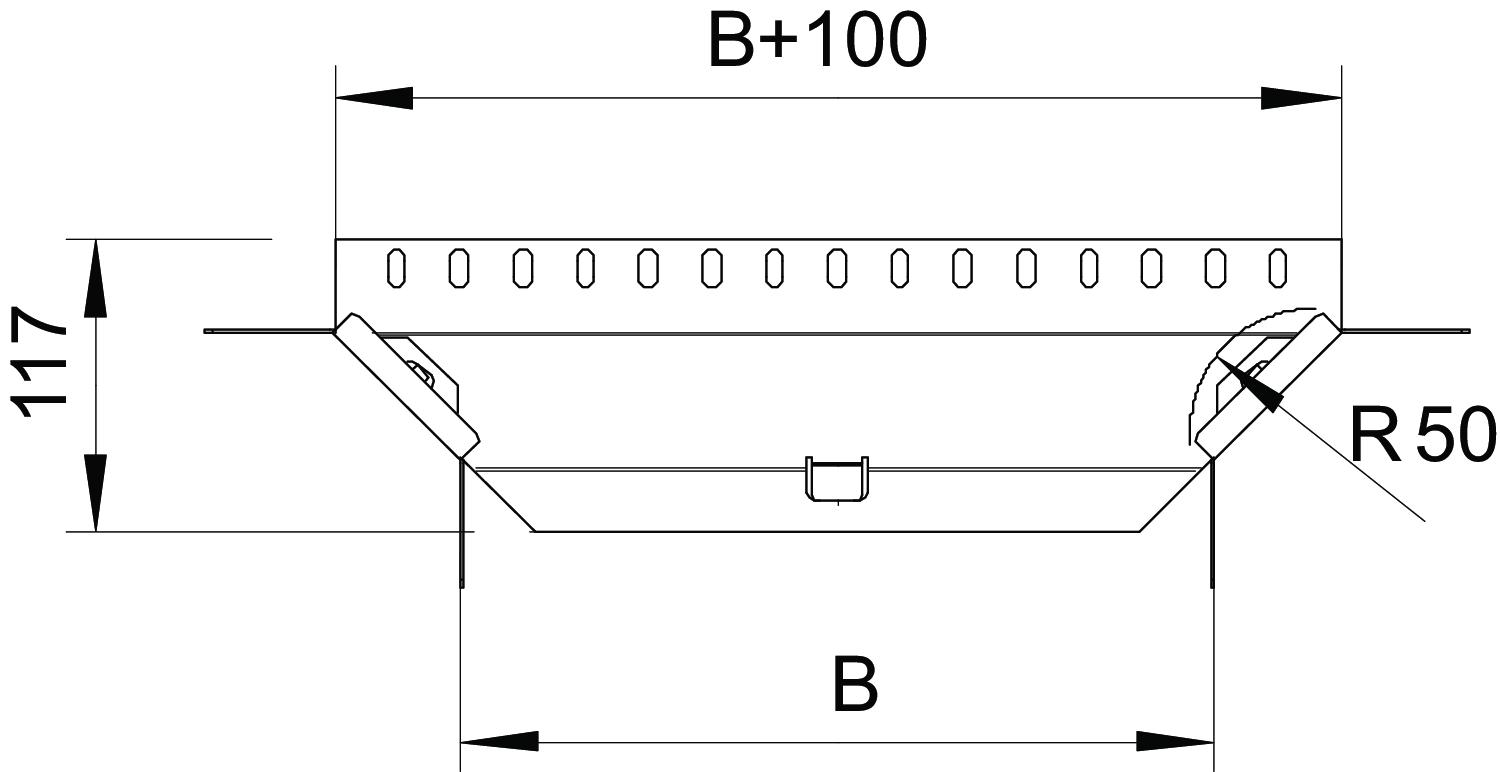

Bend (angle) 90° Change of direction Horizontal Connector version Supplied connectors Dimension 85x200 Dimension B 200 mm Dimension R 50 mm Height 85 mm Height 3 in Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 200 mm Width 8 in - All types
- Downloads
-
Data sheet RAA 820 FT / 7122213 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RAA 820 FT / 7122213 , 0.10MB , pdfREACH Declaration of conformity RAA 820 FT / 7122213 , 0.12MB , pdfRoHS Declaration of conformity RAA 820 FT / 7122213 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
