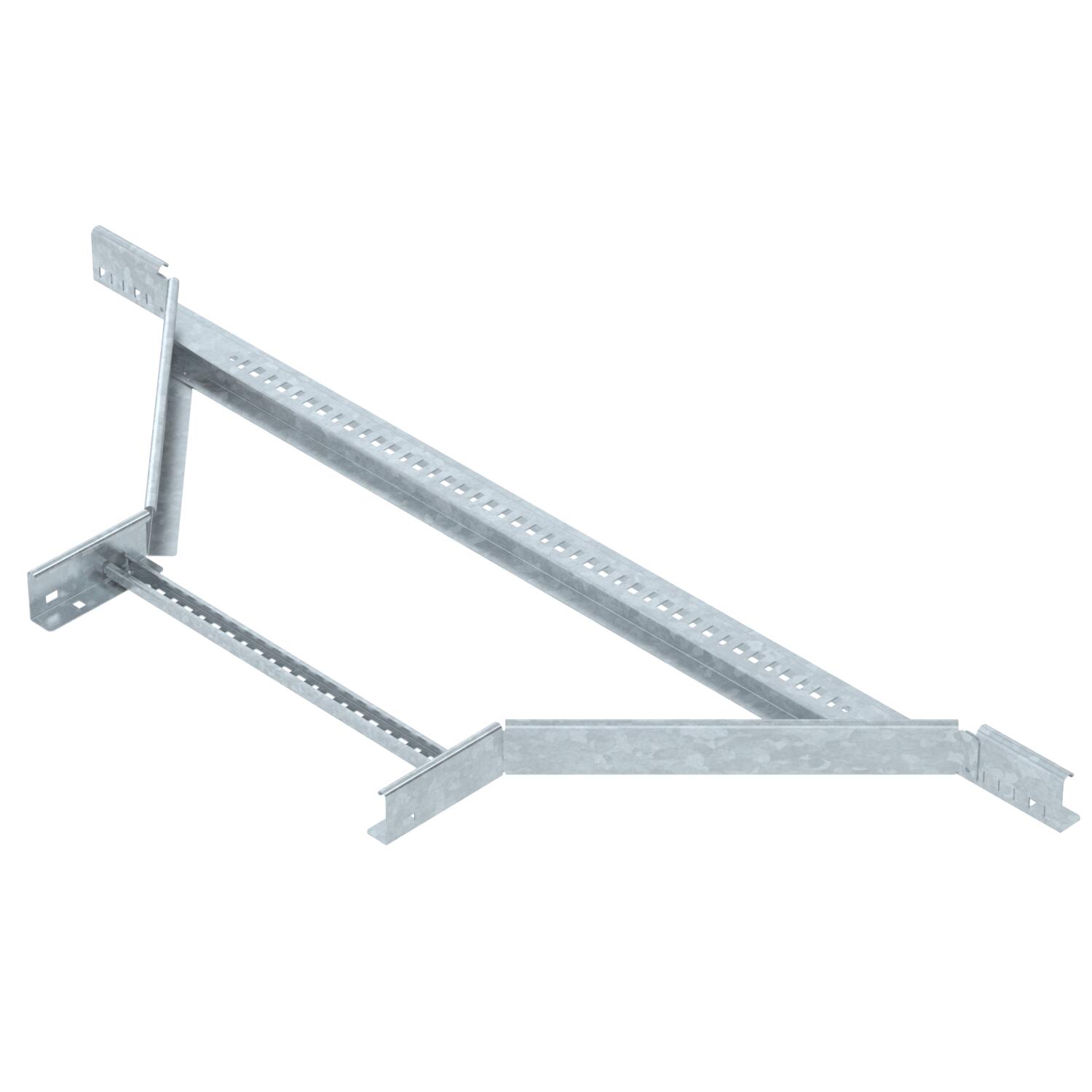

Add-on tee 60 FT
Item no. 6225876 | EAN 4012196445462
- Product description
-
Product description
Mounting/branch with welded rung for use in the cable ladder types with a side height of 60 mm.
-
- Technical data
-
Technical data

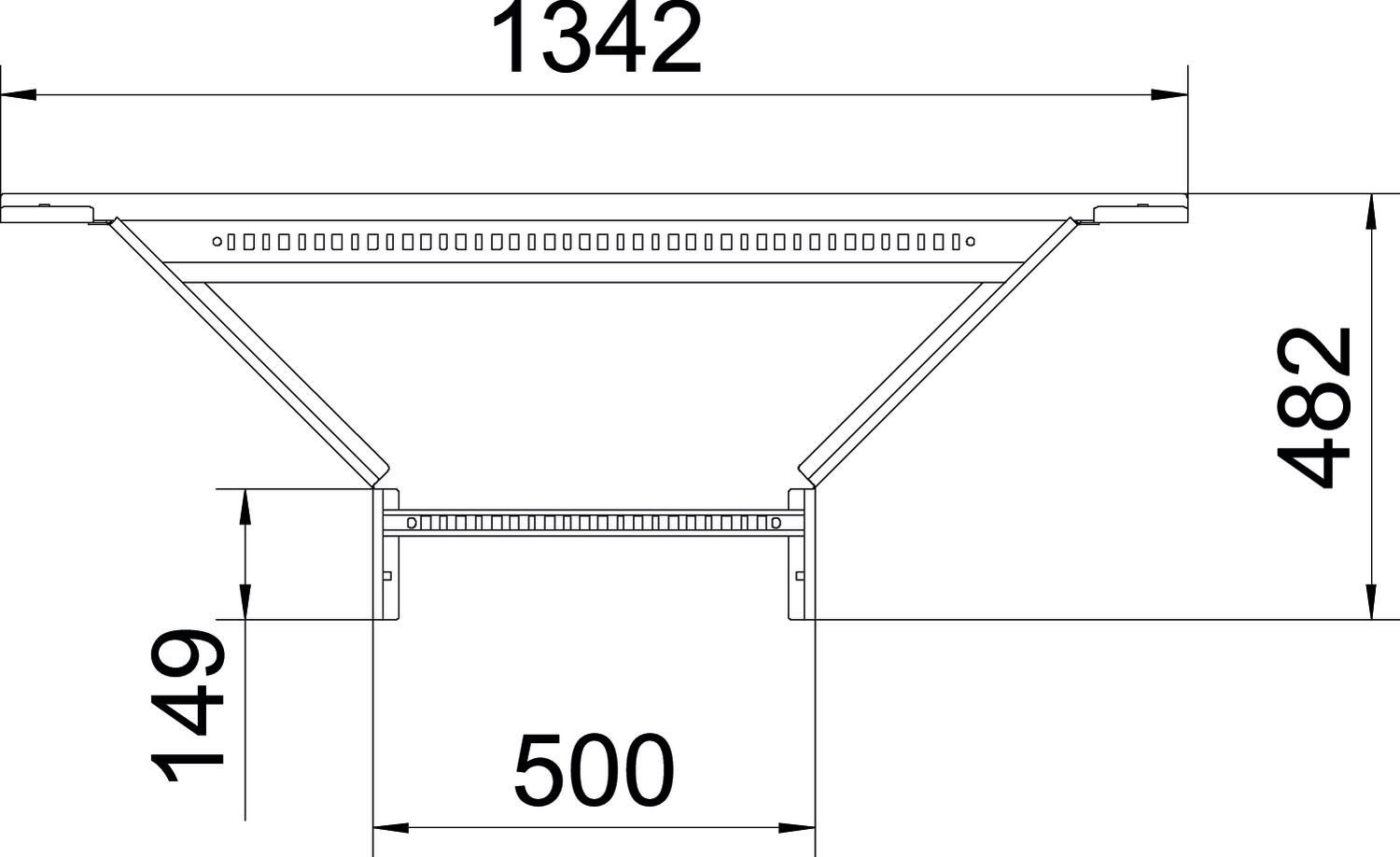

Connector version Without connectors Dimension 60x500 Dimension B 500 mm Dimension R 300 mm Height 60 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 60 FS 6208840 10 piece - Downloads
-
