Note: This article is discontinued.
Add-on tee 60 FS
Item no. 6040403 | EAN 4012196379392
- Product description
-

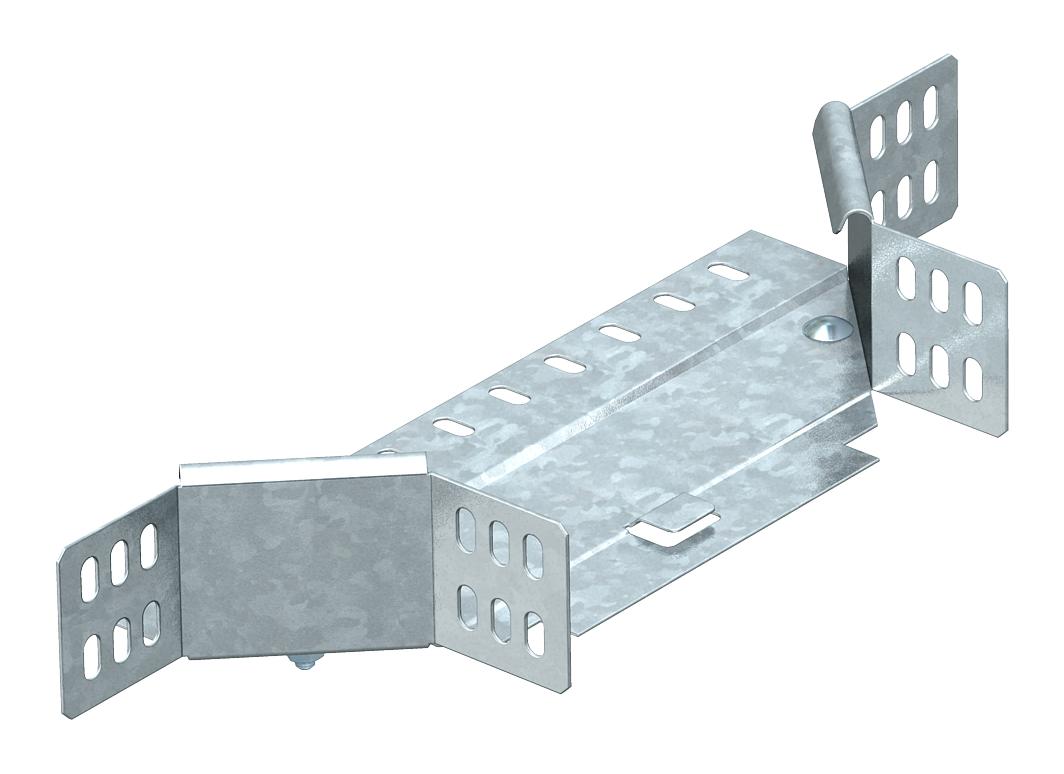

Product descriptionMounting/branch piece for horizontal and vertical use. For all cable tray types of 60 mm side height.
-
- Technical data
-
Technical data

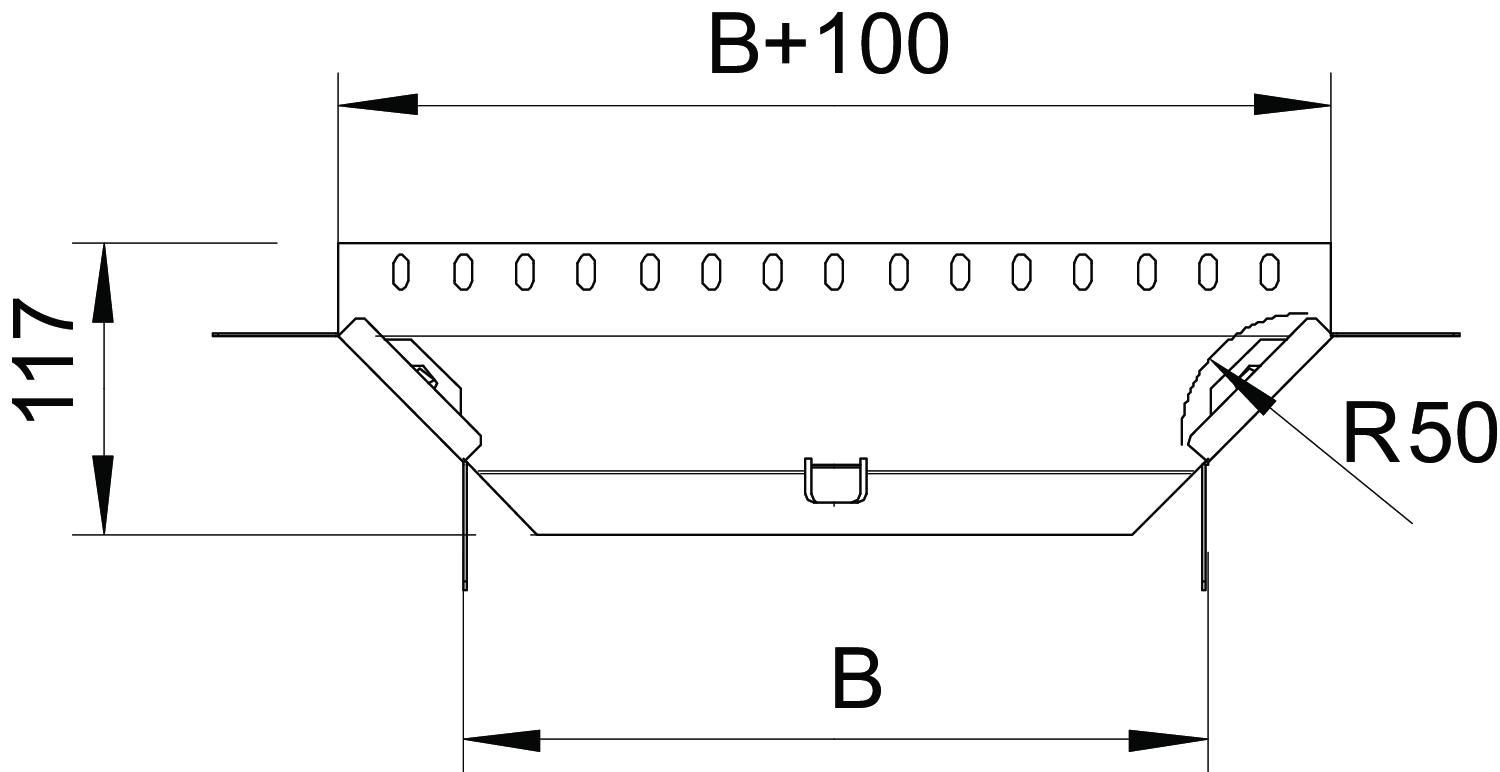

Bend (angle) 90° Change of direction Horizontal Connector version Supplied connectors Dimension 60x100 Dimension B 100 mm Dimension R 50 mm Height 2 in Height 60 mm Maintain electrical functions yes Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
- Downloads
-
Data sheet RAA 610 FS / 6040403 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAA 610 FS / 6040403 , 0.10MB , pdfREACH Declaration of conformity RAA 610 FS / 6040403 , 0.12MB , pdfRoHS Declaration of conformity RAA 610 FS / 6040403 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
