Product description

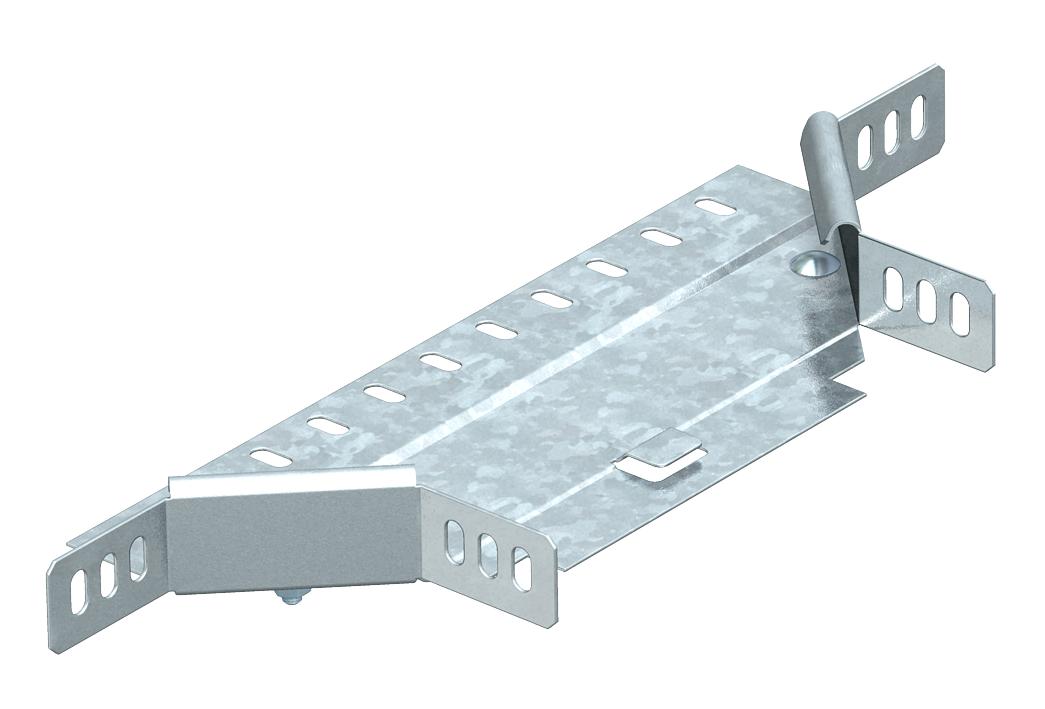

Add-on tee for horizontal and vertical use. For all cable tray types of 35 mm side height.
- Technical data
-
Technical data

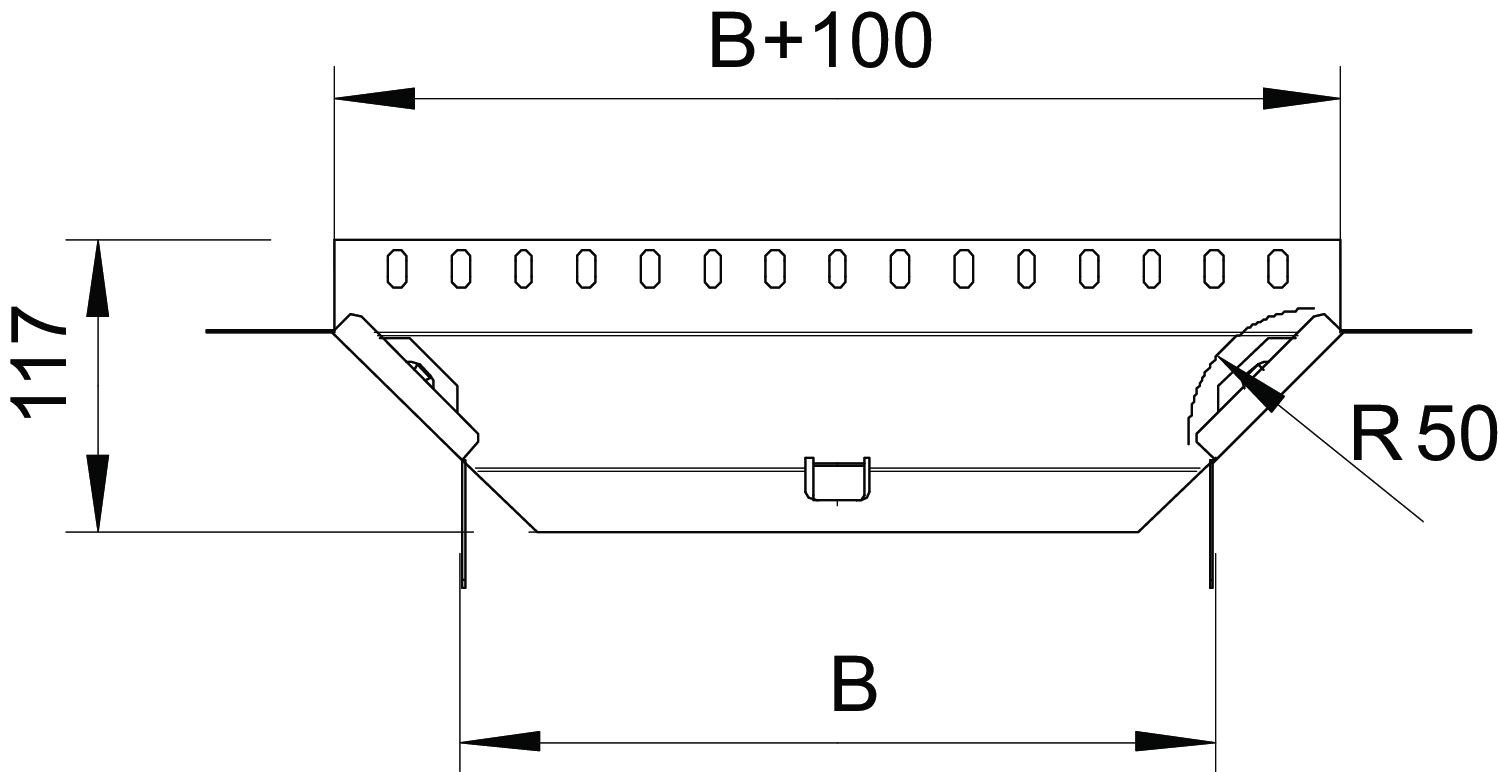

Bend (angle) 90° Change of direction Horizontal Connector version Supplied connectors Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 35 mm Height 1 in Maintain electrical functions no Material Steel Material thickness, floor plate 1 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 100 mm Width 4 in - All types
- Downloads
-
Data sheet RAA 310 FS / 6040322 , 0.16MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfDeclaration of conformity RAA 310 FS / 6040322 , 0.10MB , pdfREACH Declaration of conformity RAA 310 FS / 6040322 , 0.12MB , pdfRoHS Declaration of conformity RAA 310 FS / 6040322 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
