Add-on tee 110 FT
Item no. 6225958 | EAN 4012196445653
- Product description
-

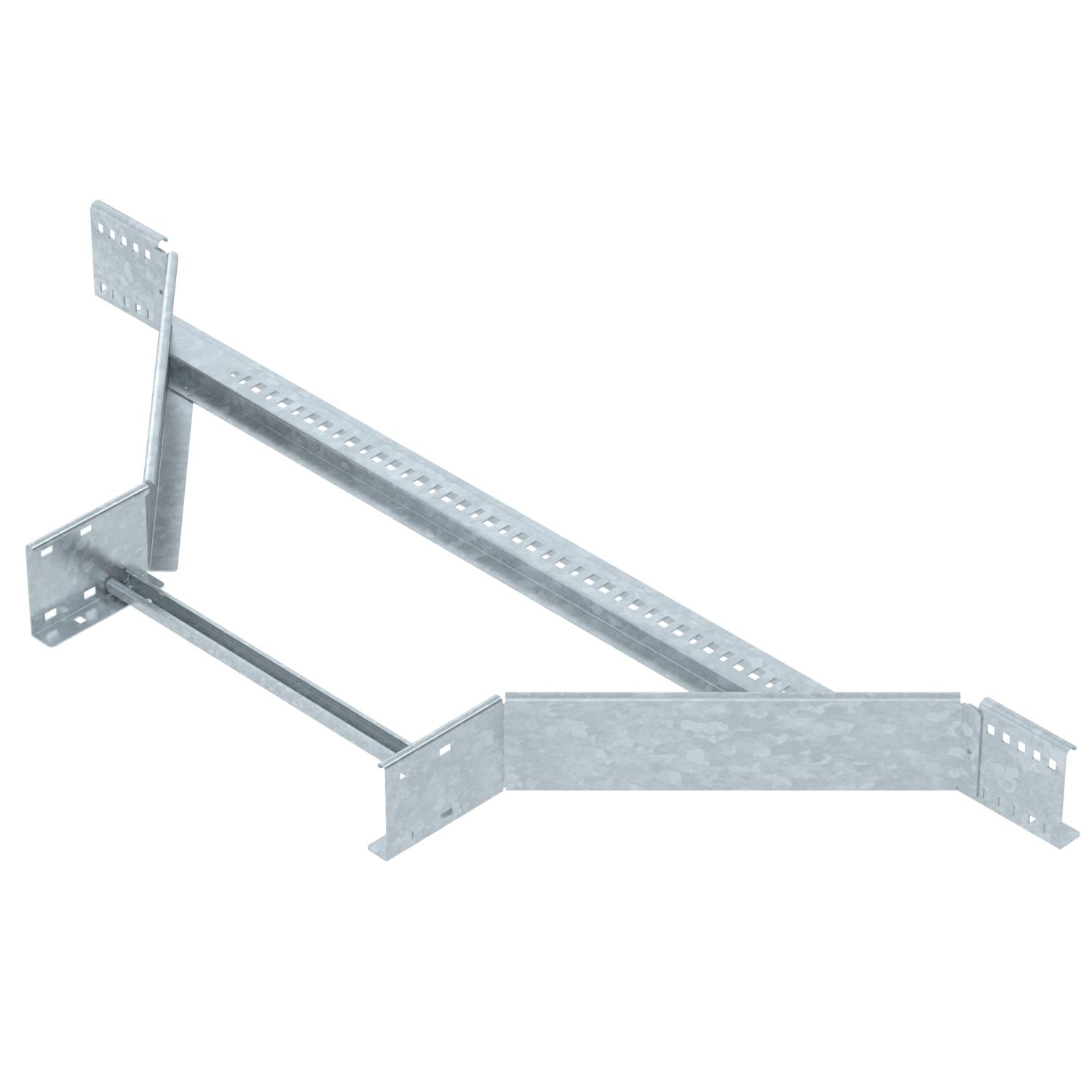

Product descriptionAdd-on tee with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data

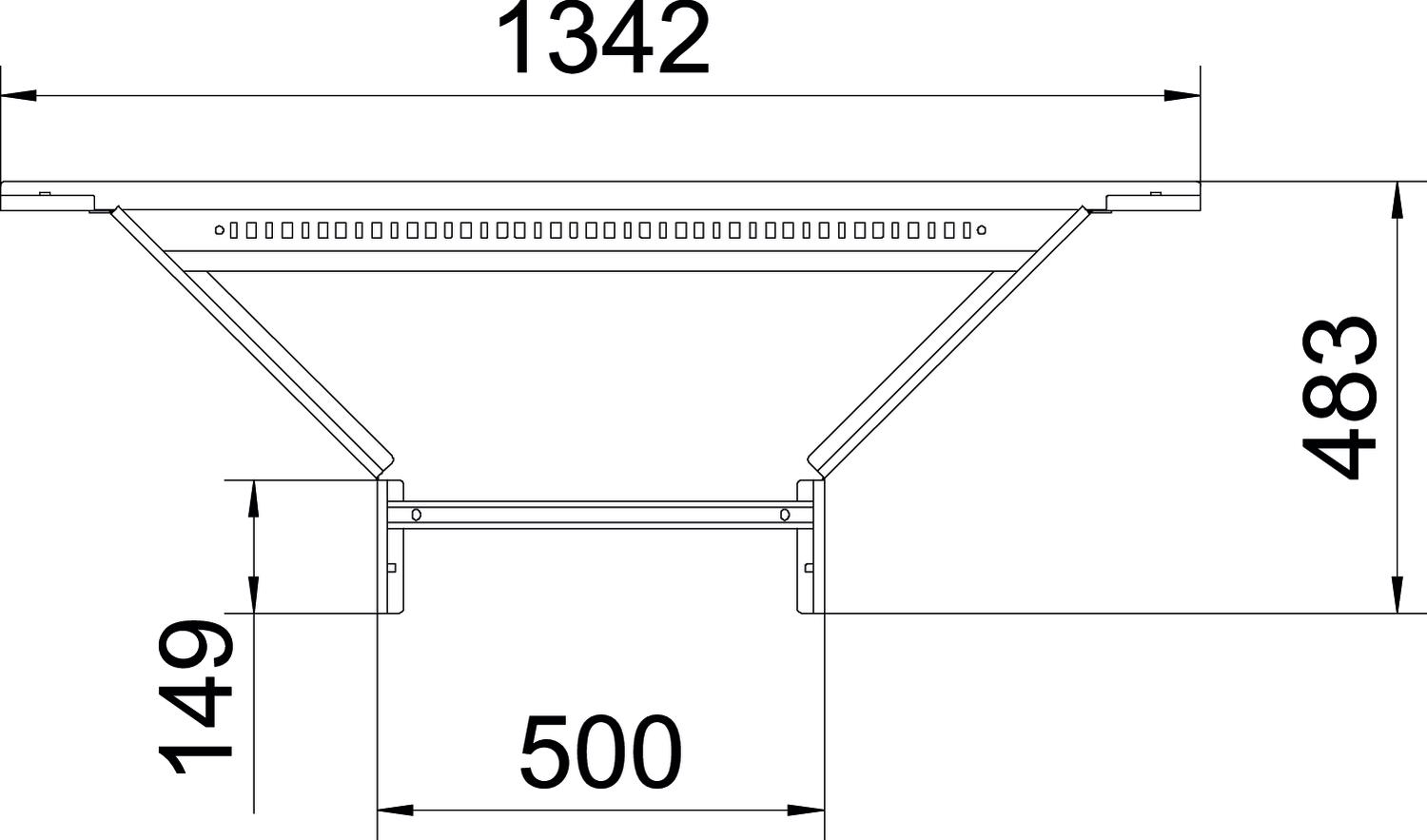

Colour zinc Connector version Without connectors Dimension 110x500 Dimension B 500 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
