Add-on tee 110 FT 500

morepic-1

morepic-2

Add-on tee 110 FT

Item no. 6225938 | EAN 4012196445592

Item no. / Types

Width

Product description

Product description

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Technical data

Technical data

Connector version	Without connectors
Dimension	110x500
Dimension B	500 mm
Dimension R	300 mm
Height	110 mm
Maintain electrical functions	no
Material	Steel

Rail thickness	1,5 mm
Rustproof steel, pickled	no
Side rail version	Flat profile
Surface	Hot-dip galvanised
Version of the rungs	Profile perforated
Wide-span version	no
Width	500 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LAA 1120 R3 FT	200 mm	6225930	piece	1 piece
LAA 1130 R3 FT	300 mm	6225932	piece	1 piece
LAA 1140 R3 FT	400 mm	6225934	piece	1 piece
LAA 1145 R3 FT	450 mm	6225936	piece	1 piece
LAA 1150 R3 FT	500 mm	6225938	piece	1 piece
LAA 1160 R3 FT	600 mm	6225940	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece

Downloads

Data sheet LAA 1150 R3 FT / 6225938 , 0.20MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAA 1150 R3 FT / 6225938 , 0.10MB , pdf

UK Declaration of Conformity LAA 1150 R3 FT / 6225938 , 0.09MB , pdf

Download

REACH Declaration of conformity LAA 1150 R3 FT / 6225938 , 0.12MB , pdf

Download

RoHS Declaration of conformity LAA 1150 R3 FT / 6225938 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

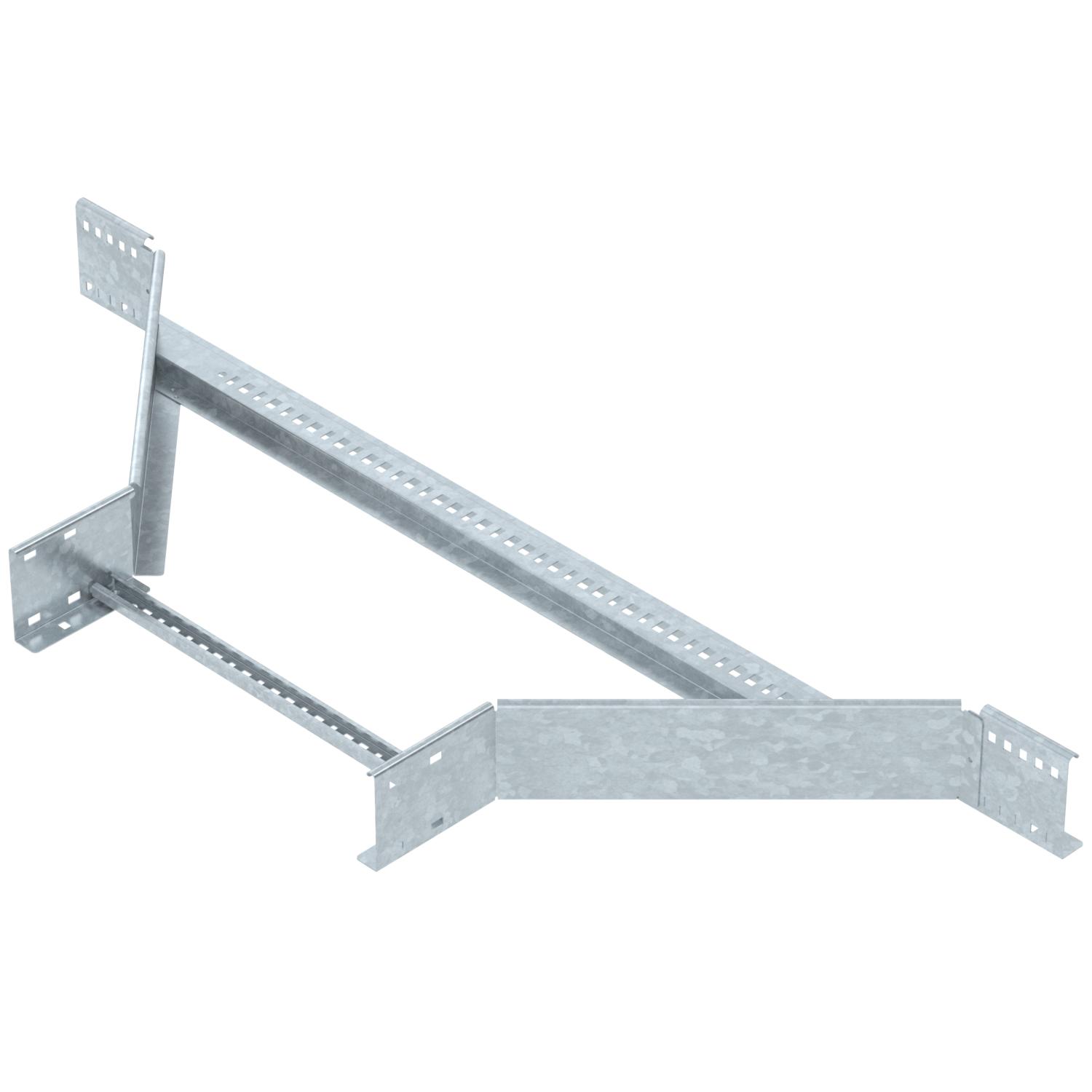

Product graphic LAA 1150 R3 FT / 6225938, 60.16 kB, jpg

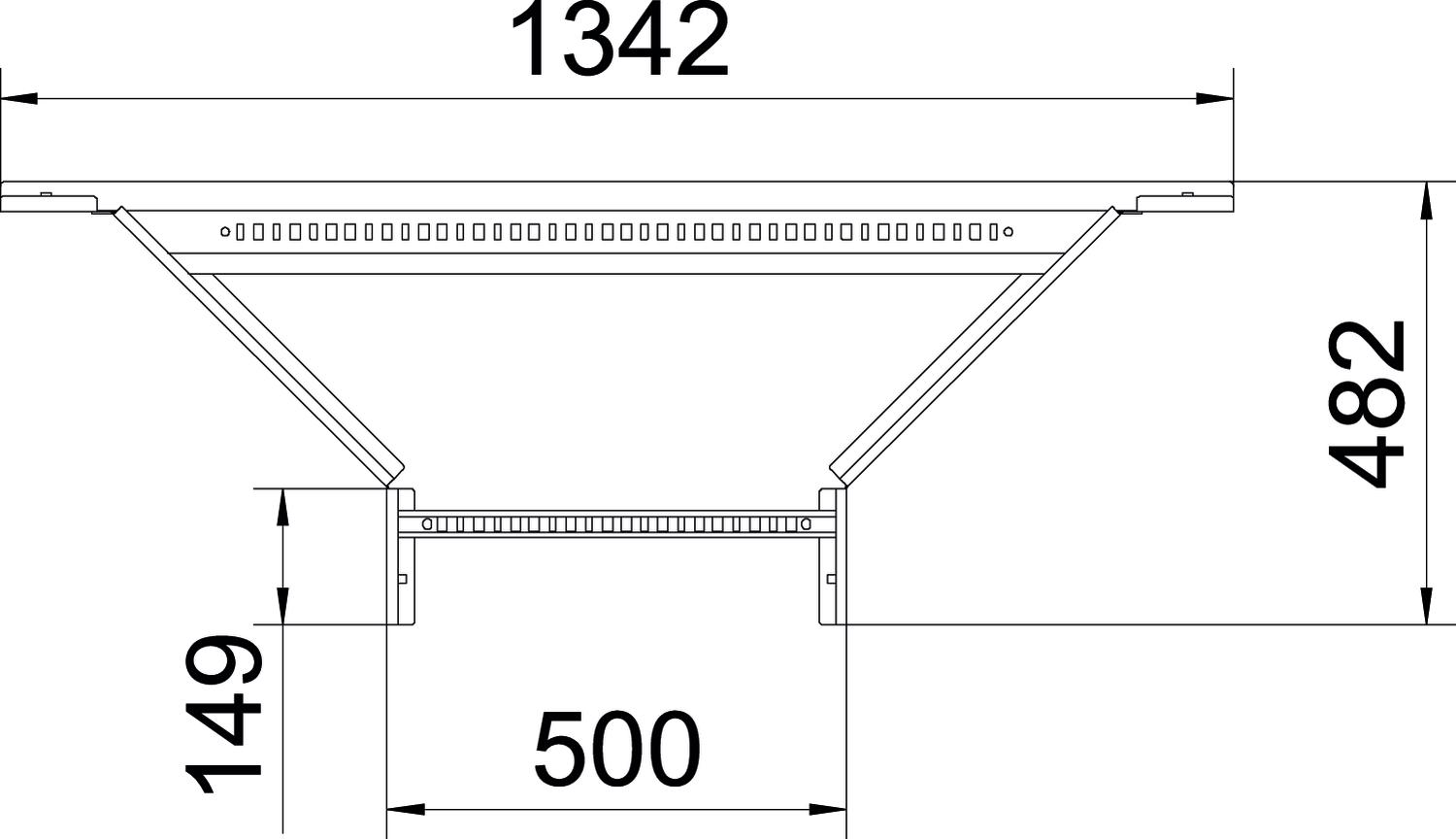

Scale drawing LAA 1150 R3 FT / 6225938, 65.43 kB, jpg
