Add-on tee 110 FS 600

morepic-1

morepic-2

Add-on tee 110 FS

Item no. 6225918 | EAN 4012196445547

Item no. / Types

Width

Product description

Product description

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Technical data

Technical data

Connector version	Without connectors
Dimension	110x600
Dimension B	600 mm
Dimension R	300 mm
Height	110 mm
Maintain electrical functions	no
Material	Steel

Rail thickness	1,5 mm
Rustproof steel, pickled	no
Side rail version	Flat profile
Surface	Strip galvanized
Version of the rungs	Profile perforated
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LAA 1120 R3 FS	200 mm	6225910	piece	1 piece
LAA 1130 R3 FS	300 mm	6225912	piece	1 piece
LAA 1140 R3 FS	400 mm	6225914	piece	1 piece
LAA 1150 R3 FS	500 mm	6225916	piece	1 piece
LAA 1160 R3 FS	600 mm	6225918	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FS	LVG 110 FS	6216545	piece	10 piece

Downloads

Data sheet LAA 1160 R3 FS / 6225918 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LAA 1160 R3 FS / 6225918 , 0.10MB , pdf

UK Declaration of Conformity LAA 1160 R3 FS / 6225918 , 0.09MB , pdf

Download

REACH Declaration of conformity LAA 1160 R3 FS / 6225918 , 0.12MB , pdf

Download

RoHS Declaration of conformity LAA 1160 R3 FS / 6225918 , 0.12MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

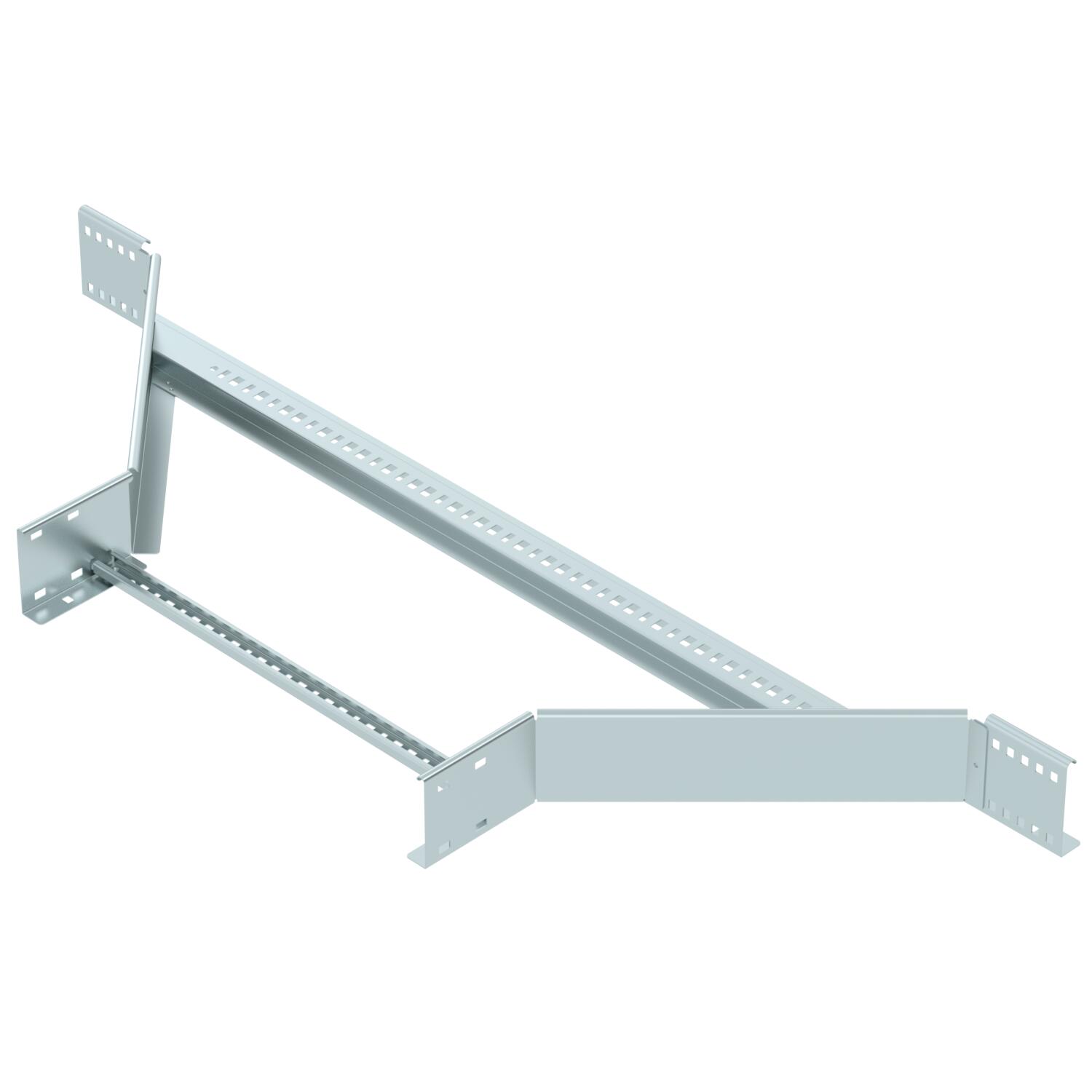

Product graphic LAA 1160 R3 FS / 6225918, 47.59 kB, jpg

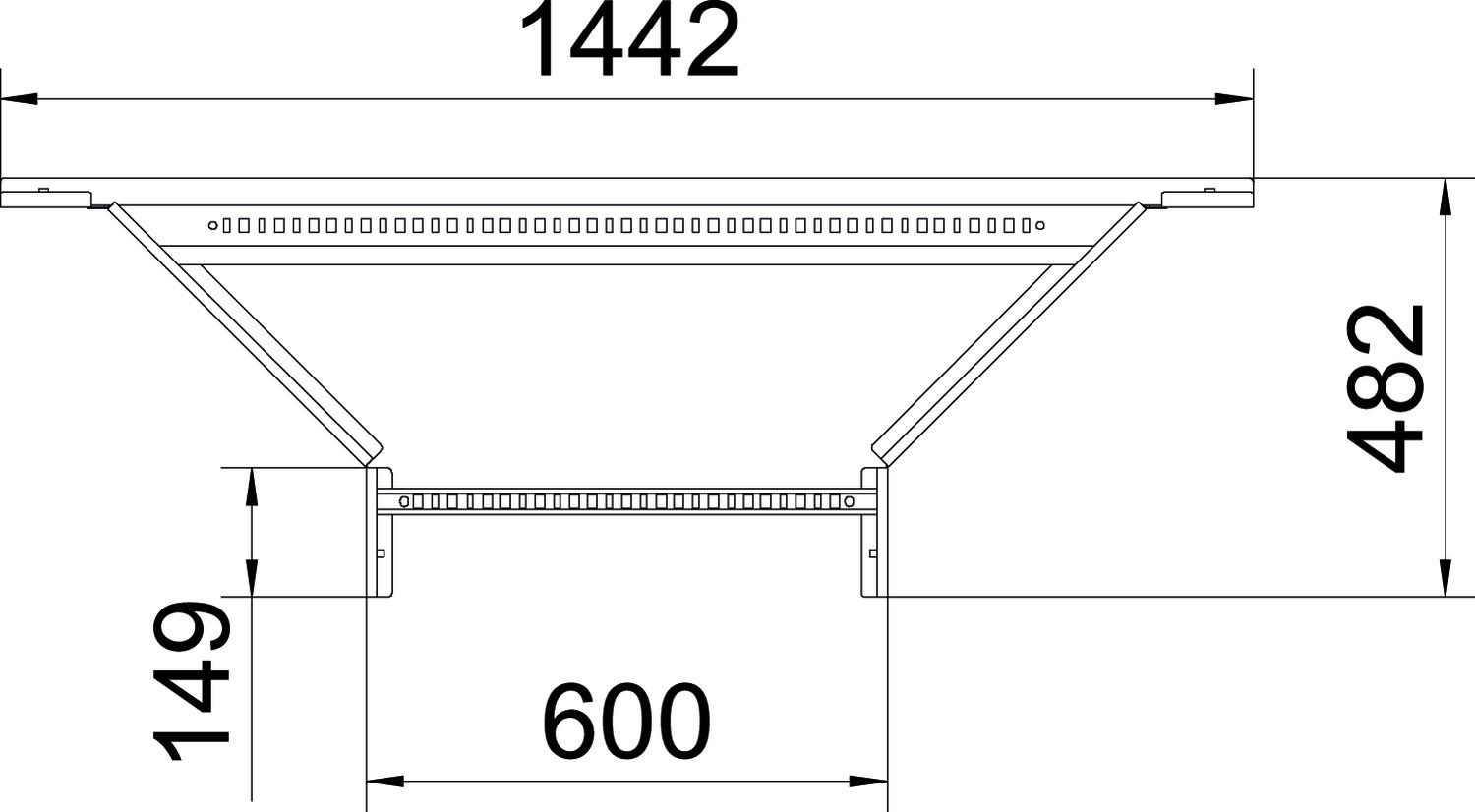

Scale drawing LAA 1160 R3 FS / 6225918, 65.81 kB, jpg

LAA 1160 R3 FS / 6225918

6225918_KSTP1.stp, 1.34 MB
