Note: This article is discontinued.

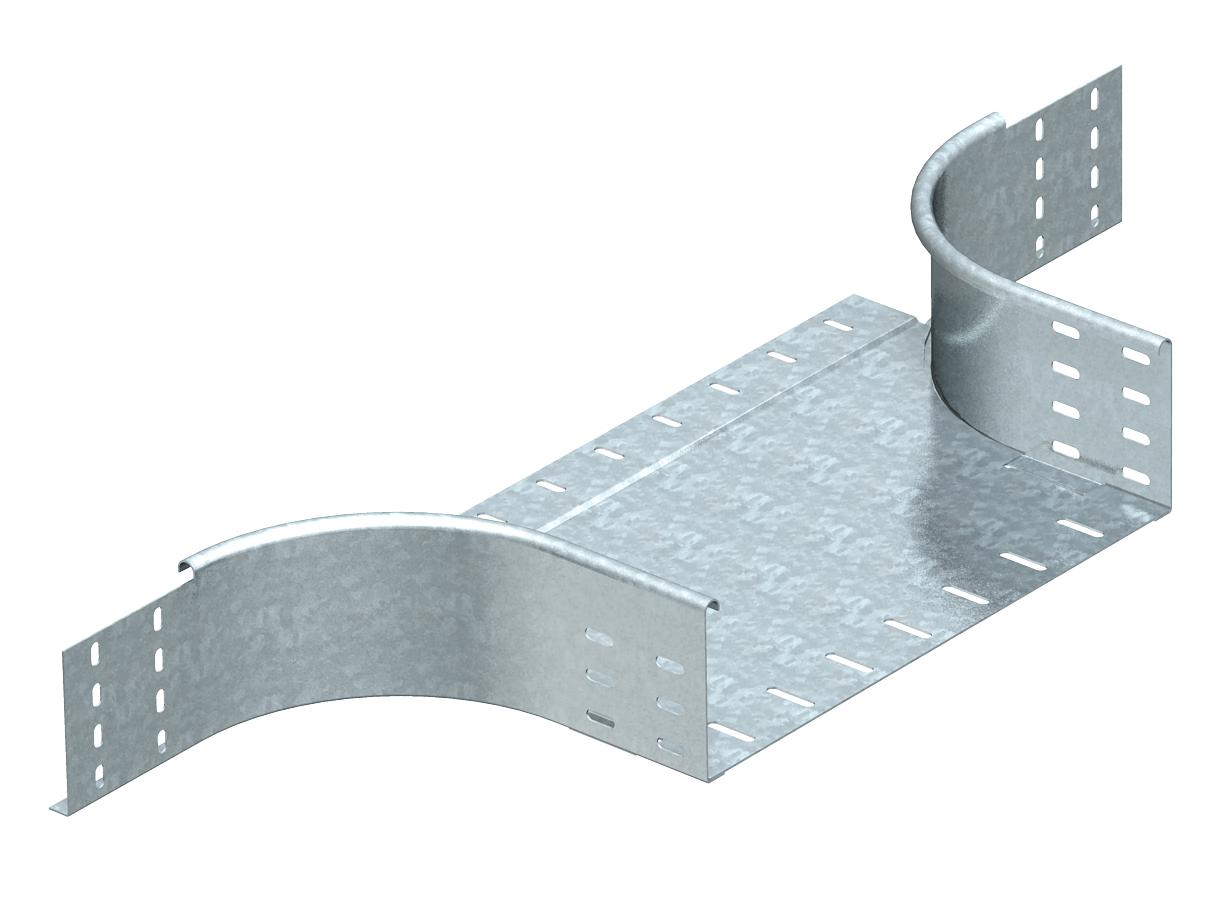

Add-on tee 110 FS
Item no. 7002726 | EAN 4012196213672
- Product description
-
Product descriptionAdd-on tee for horizontal and vertical use. For all cable tray types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 110x500 Dimension B 500 mm Dimension R 150 mm Height 4 in Height 110 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,5 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Strip galvanized Type of connector, cable support system Screwed Wide-span version no Width 20 in Width 500 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RAA 150 FS / 7002726 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity RAA 150 FS / 7002726 , 0.10MB , pdfREACH Declaration of conformity RAA 150 FS / 7002726 , 0.12MB , pdfRoHS Declaration of conformity RAA 150 FS / 7002726 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
