Add-on tee 110 FS
Item no. 6225914 | EAN 4012196445509
- Product description
-

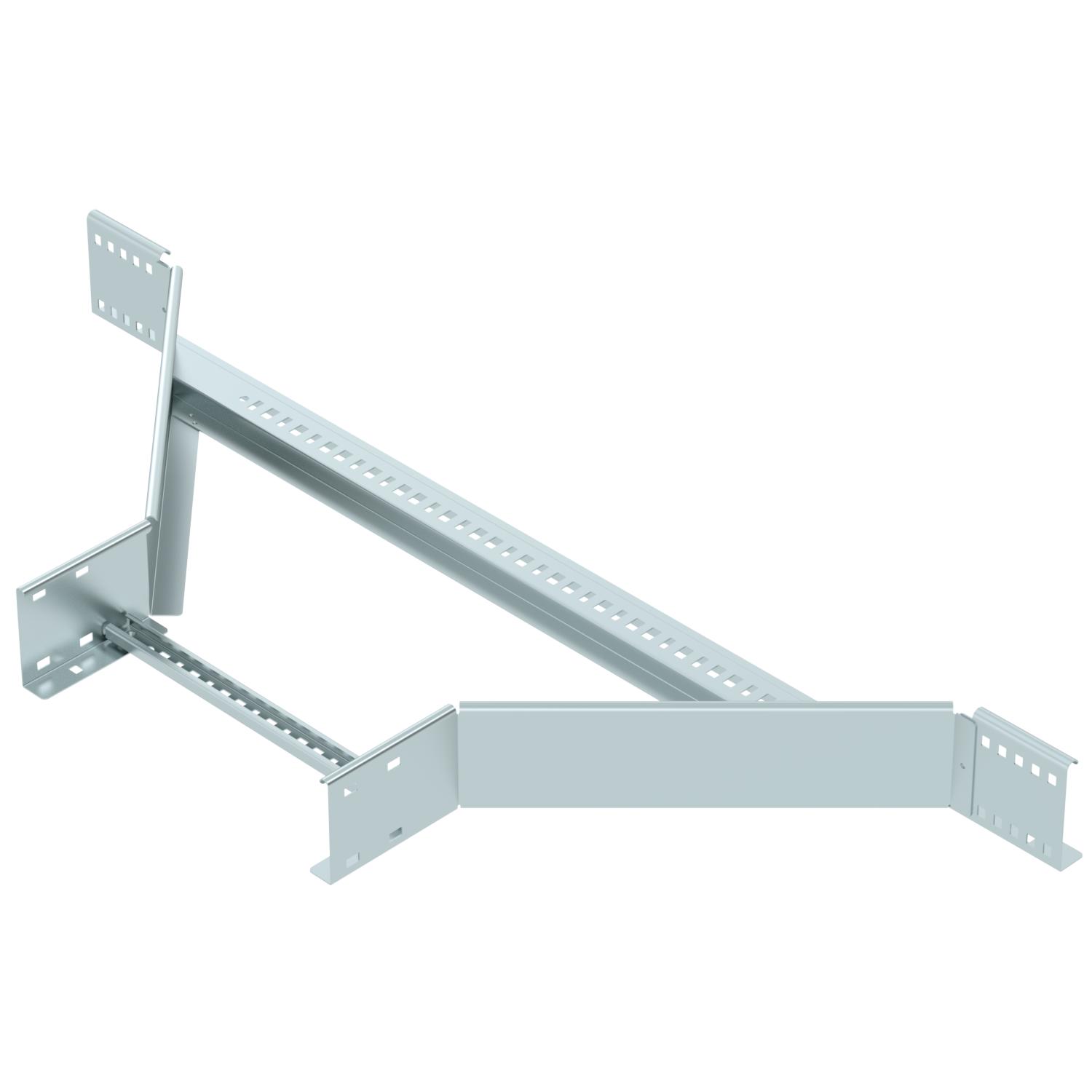

Product descriptionAdd-on tee with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data

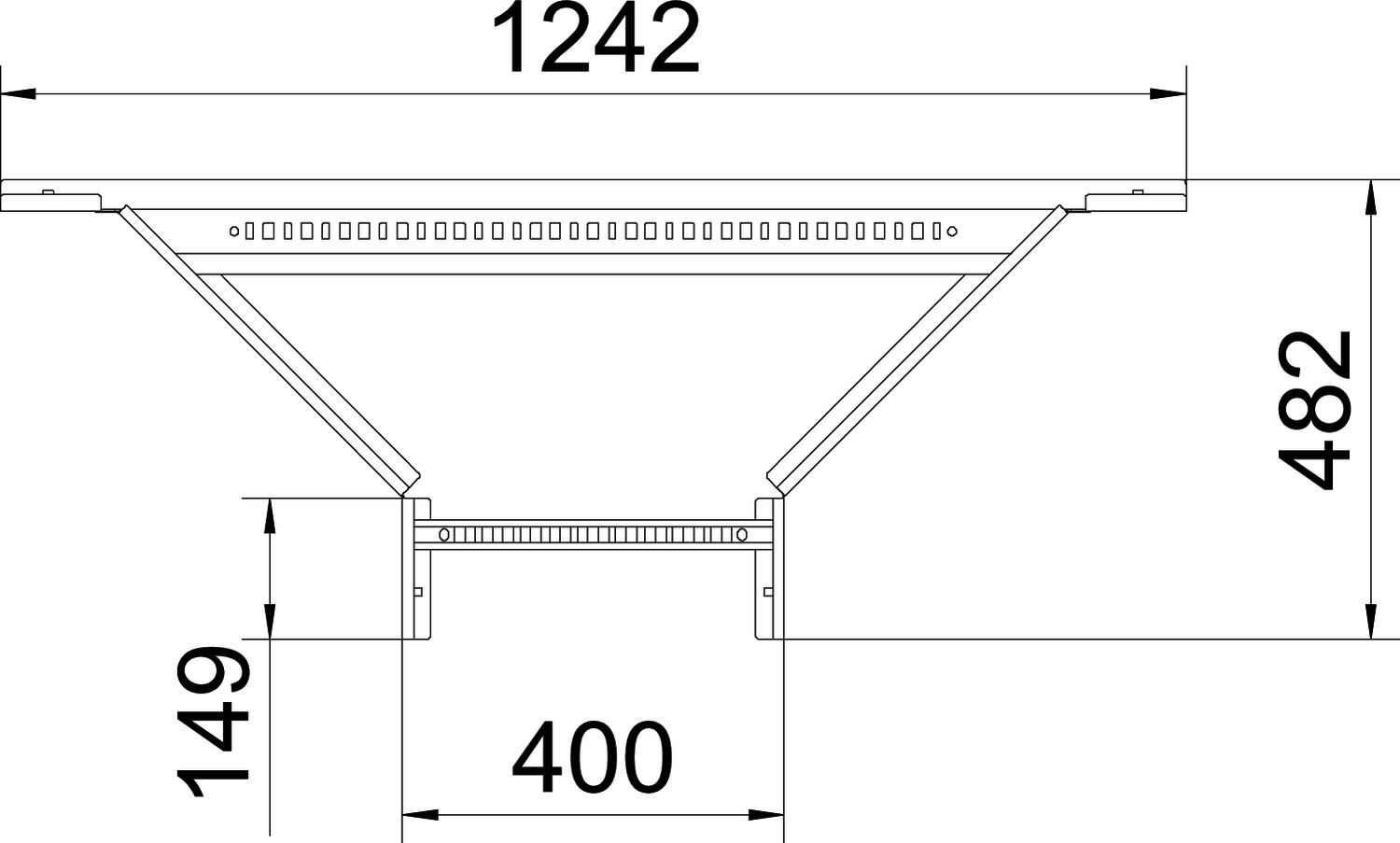

Colour zinc Connector version Without connectors Dimension 110x400 Dimension B 400 mm Dimension R 300 mm Height 110 mm Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side rail version Flat profile Surface Strip galvanized Version of the rungs Profile perforated Wide-span version no Width 400 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FS
LVG 110 FS 6216545 10 piece - Downloads
-
Data sheet LAA 1140 R3 FS / 6225914 , 0.19MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity LAA 1140 R3 FS / 6225914 , 0.10MB , pdfUK Declaration of Conformity LAA 1140 R3 FS / 6225914 , 0.09MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
