Adapter PG-M | 25 | 21 | | 33

morepic-1

morepic-2

Adapter PG-M

Item no. 2031470 | EAN 4012195372097

Item no. / Types

Thread dimension, metric, internal

Thread dimension, PG, external

WAF

Product description

Product description

Adapter for converting a Pg threaded drill hole to a metric threaded drill hole.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	PG21-M25
Dimension D	22,7 mm
Dimension E	33 mm
Dimension L	23,6 mm
Dimension L1	10,9 mm
Dimension L2	6 mm
Dimension L3	10 mm

explosion-proof	no
Material	Polyamide
Nickel-plated	no
Thread dimension, metric, internal	25
Thread dimension, PG, external	21
Thread type: External thread	PG
Thread type: Internal thread	Metric
WAF	33

All types

All types

Types	Thread dimension, metric, internal	Thread dimension, PG, external	WAF	Item no.	Quantity	SSU
107 ADA PG7-M12	12	7	15	2031465	piece	20 piece
107 ADA PG9-M12	12	9	19	2031466	piece	20 piece
107 ADA PG11-M16	16	11	22	2031467	piece	20 piece
107 ADA PG13-M20	20	13.5	24	2031468	piece	20 piece
107 ADA PG16-M20	20	16	27	2031469	piece	20 piece
107 ADA PG21-M25	25	21	33	2031470	piece	10 piece
107 ADA PG29-M32	32	29	42	2031471	piece	10 piece

Downloads

Data sheet 107 ADA PG21-M25 / 2031470 , 0.20MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

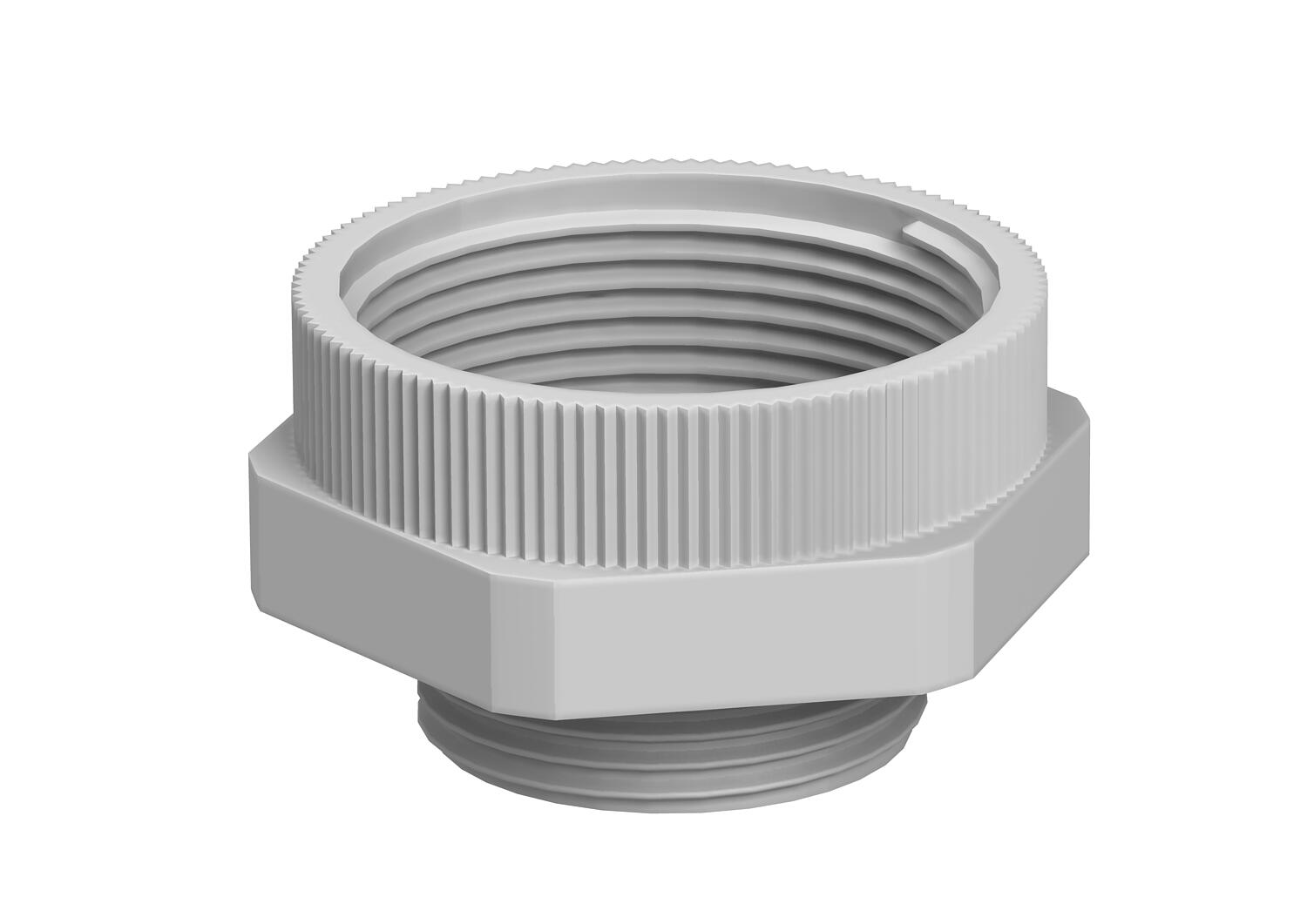

Product graphic 107 ADA PG21-M25 / 2031470, 57.41 kB, jpg

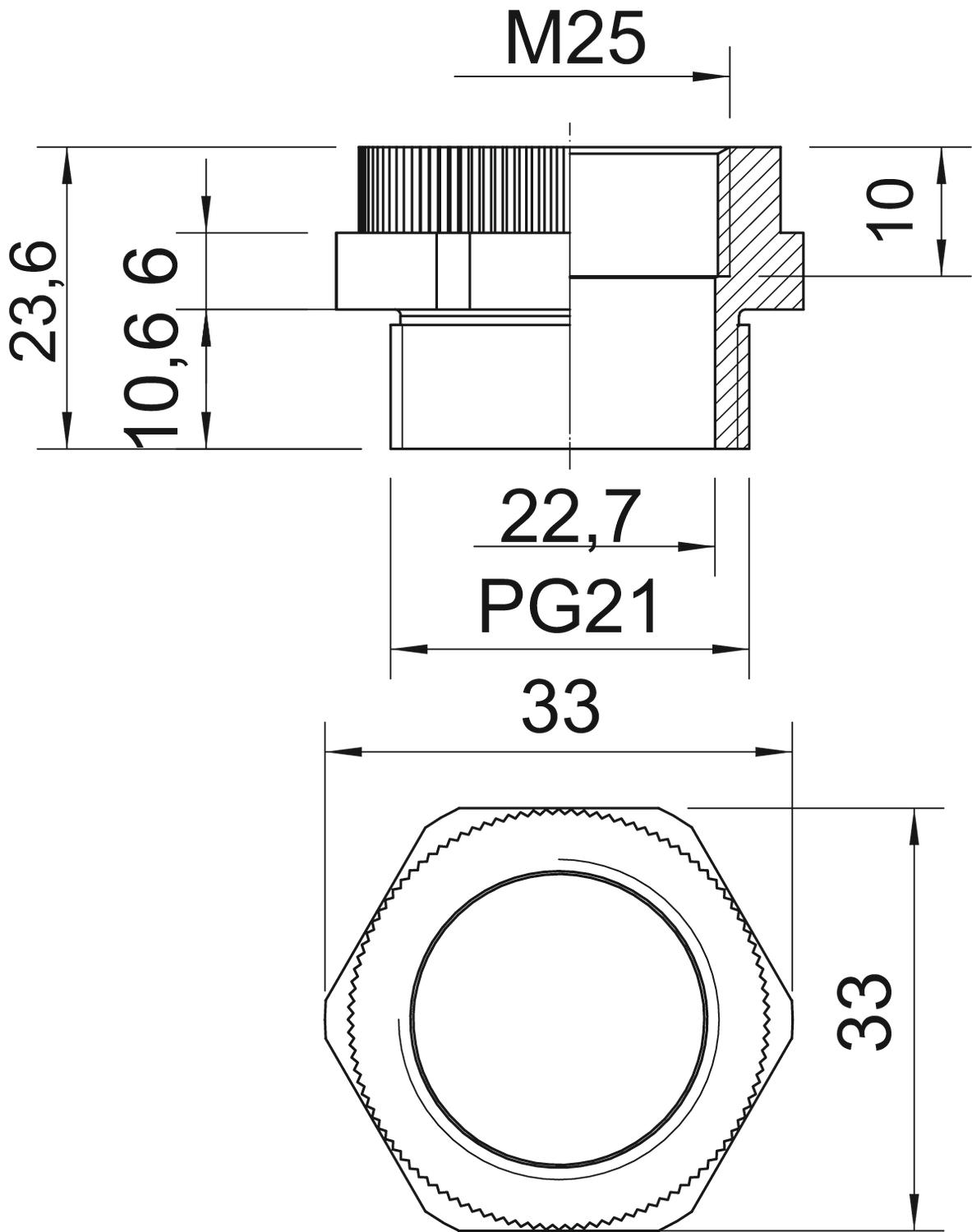

Scale drawing 107 ADA PG21-M25 / 2031470, 96.39 kB, jpg

107 ADA PG21-M25 / 2031470
