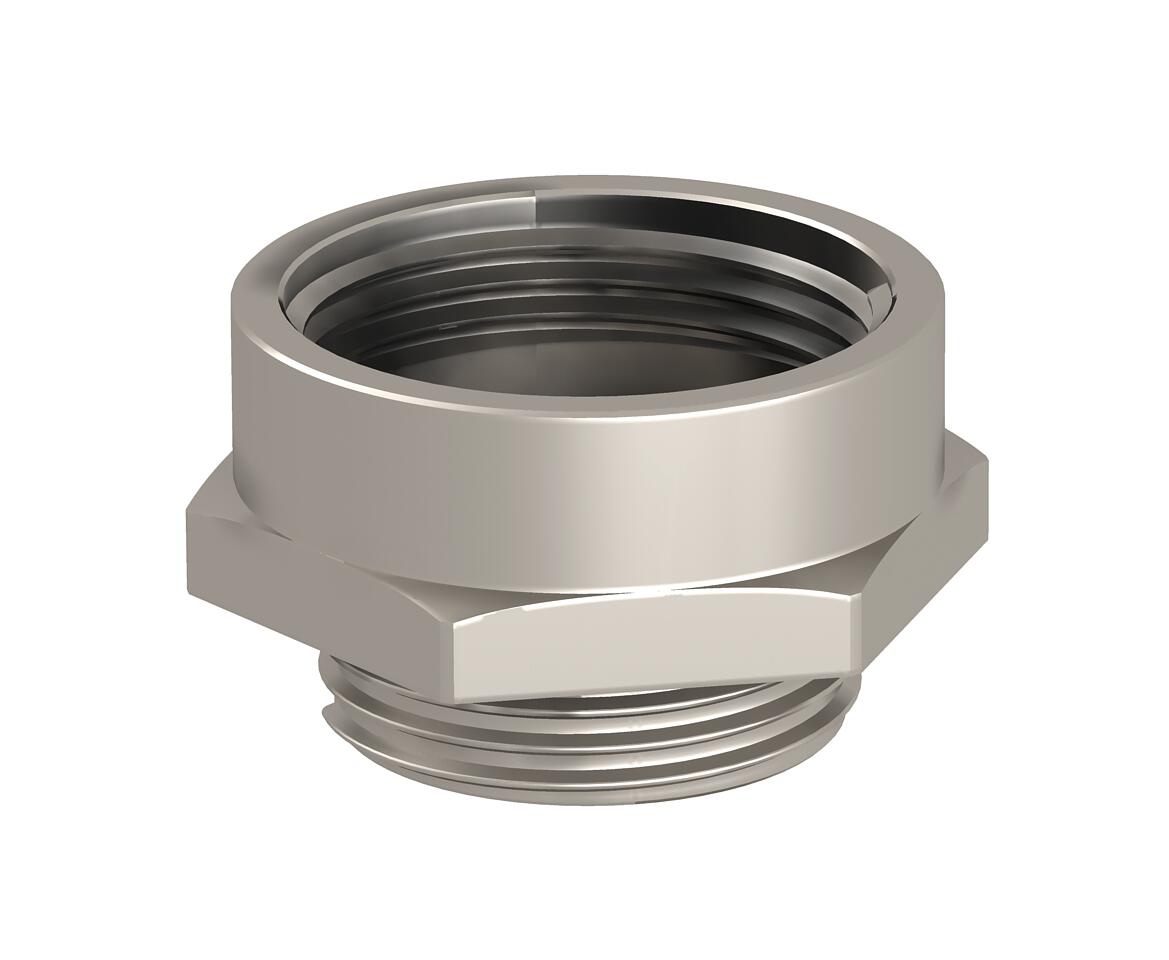

Adapter expansion PG - M

Item no. 2088298 | EAN 4012195372301

Item no. / Types

Thread dimension, metric, internal

Thread dimension, PG, external

WAF

Product description

Product description

Adapter for converting a Pg threaded drill hole to a larger metric threaded drill hole.

Technical data

Technical data

Dimension	PG29-M40
Dimension D	32 mm
Dimension E	46 mm
Dimension L	21 mm
Dimension L1	8 mm
Dimension L3	10,5 mm
Dimension L4	5 mm
explosion-proof	no

Material	Brass
Nickel-plated	yes
Surface	Nickel-plated
Thread dimension, metric, internal	40
Thread dimension, PG, external	29
Thread type: External thread	PG
Thread type: Internal thread	Metric
WAF	43

All types

All types

Types	Thread dimension, metric, internal	Thread dimension, PG, external	WAF	Item no.	Quantity	SSU
165 ADA PG9-M16	16	9	19	2088291	piece	20 piece
165 ADA PG11-M16	16	11	22	2088292	piece	20 piece
165 ADA PG13-M20	20	13.5	24	2088293	piece	20 piece
165 ADA PG16-M20	20	16	27	2088294	piece	20 piece
165 ADA PG16-M25	25	16	30	2088295	piece	20 piece
165 ADA PG21-M25	25	21	32	2088296	piece	10 piece
165 ADA PG21-M32	32	21	36	2088297	piece	10 piece
165 ADA PG29-M40	40	29	43	2088298	piece	10 piece
165 ADA PG36-M50	50	36	55	2088299	piece	5 piece

Downloads

Data sheet 165 ADA PG29-M40 / 2088298 , 0.18MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 165 ADA PG29-M40 / 2088298 , 0.05MB , pdf

Download

REACH Declaration of conformity 165 ADA PG29-M40 / 2088298 , 0.12MB , pdf

Download

RoHS Declaration of conformity 165 ADA PG29-M40 / 2088298 , 0.12MB , pdf

Download

Product graphic 165 ADA PG29-M40 / 2088298, 44.16 kB, jpg

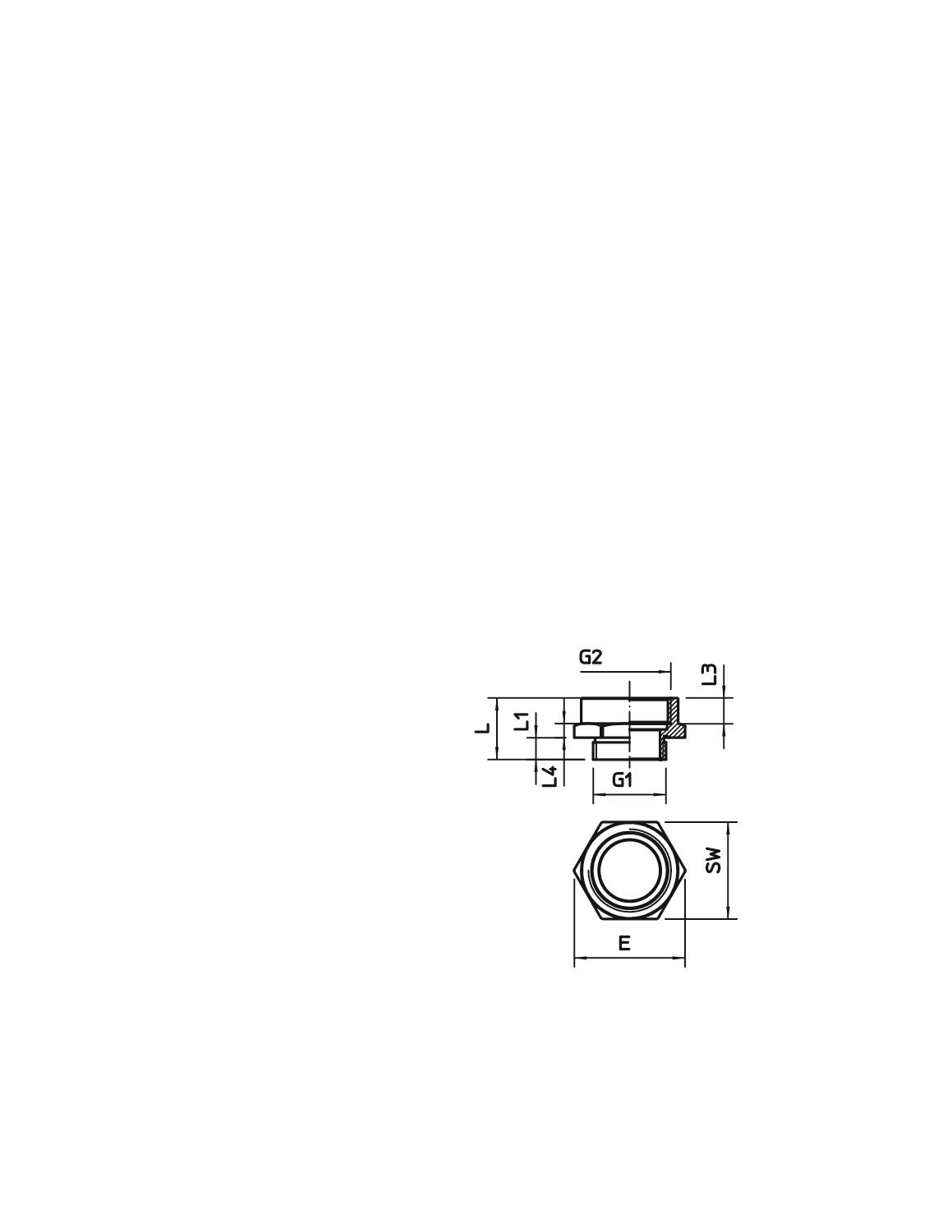

Scale drawing 165 ADA PG29-M40 / 2088298, 27.73 kB, jpg
