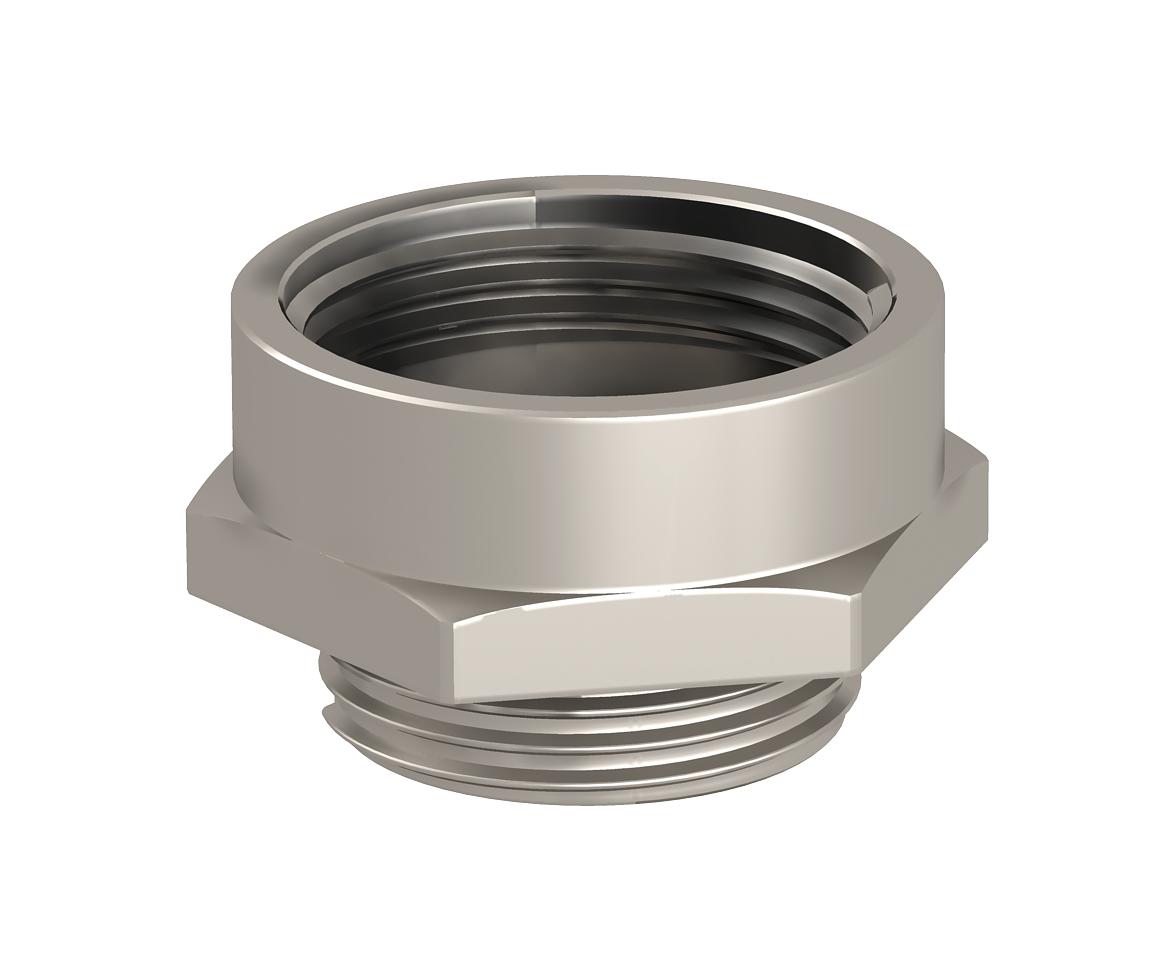

Adapter expansion PG - M

Item no. 2088291 | EAN 4012195372233

Product description
Product description
Adapter for converting a Pg threaded drill hole to a larger metric threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

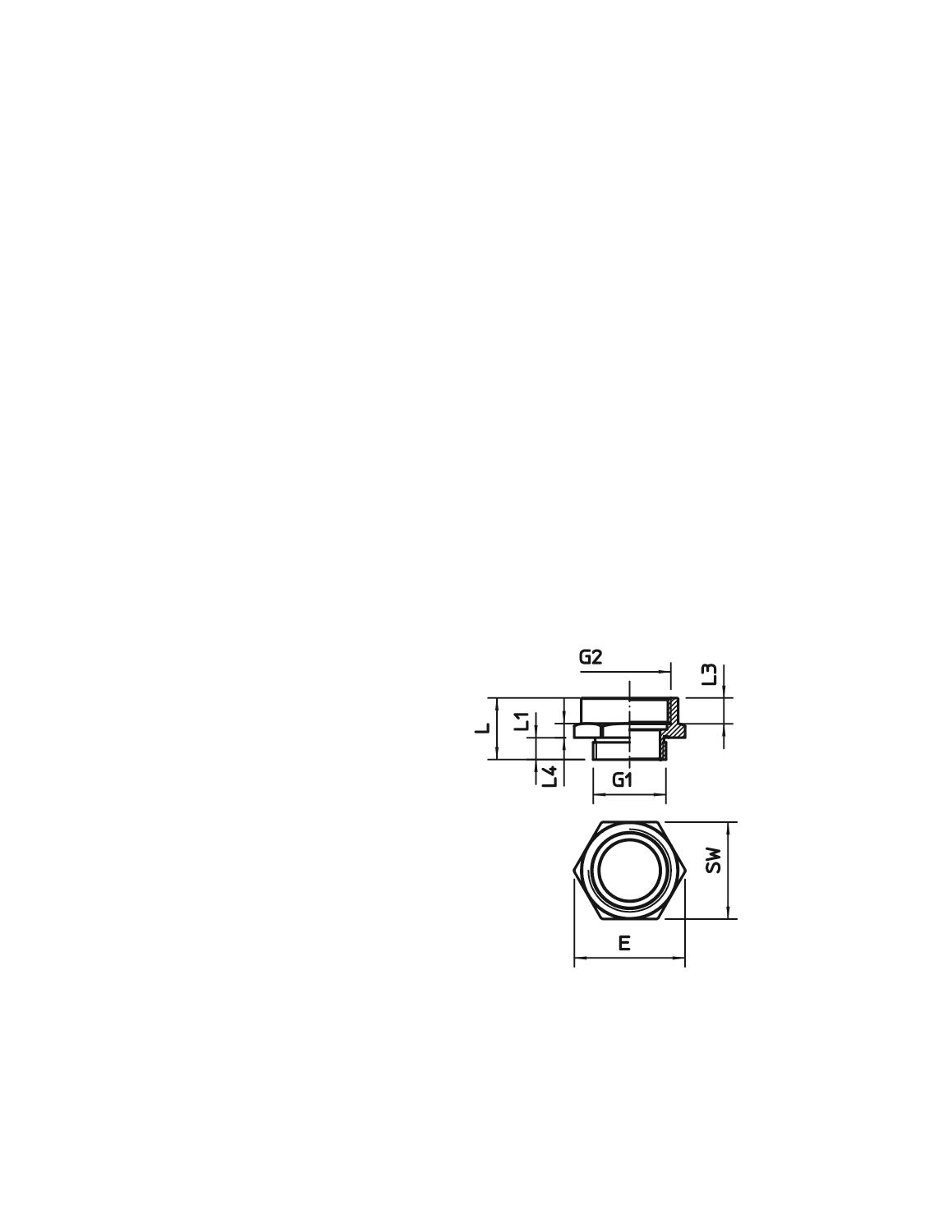

Dimension PG9-M16
Dimension D 12,5 mm
Dimension E 21 mm
Dimension L 16 mm
Dimension L1 6 mm
Dimension L3 7,5 mm
Dimension L4 3,5 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, internal 16
Thread dimension, PG, external 9
Thread type: External thread PG
Thread type: Internal thread Metric
WAF 19
All types

All types

Types Thread dimension, metric, internal Thread dimension, PG, external WAF Item no. Quantity SSU
165 ADA PG9-M16 16 9 19 2088291
20 piece
165 ADA PG11-M16 16 11 22 2088292
20 piece
165 ADA PG13-M20 20 13.5 24 2088293
20 piece
165 ADA PG16-M20 20 16 27 2088294
20 piece
165 ADA PG16-M25 25 16 30 2088295
20 piece
165 ADA PG21-M25 25 21 32 2088296
10 piece
165 ADA PG21-M32 32 21 36 2088297
10 piece
165 ADA PG29-M40 40 29 43 2088298
10 piece
165 ADA PG36-M50 50 36 55 2088299
5 piece
