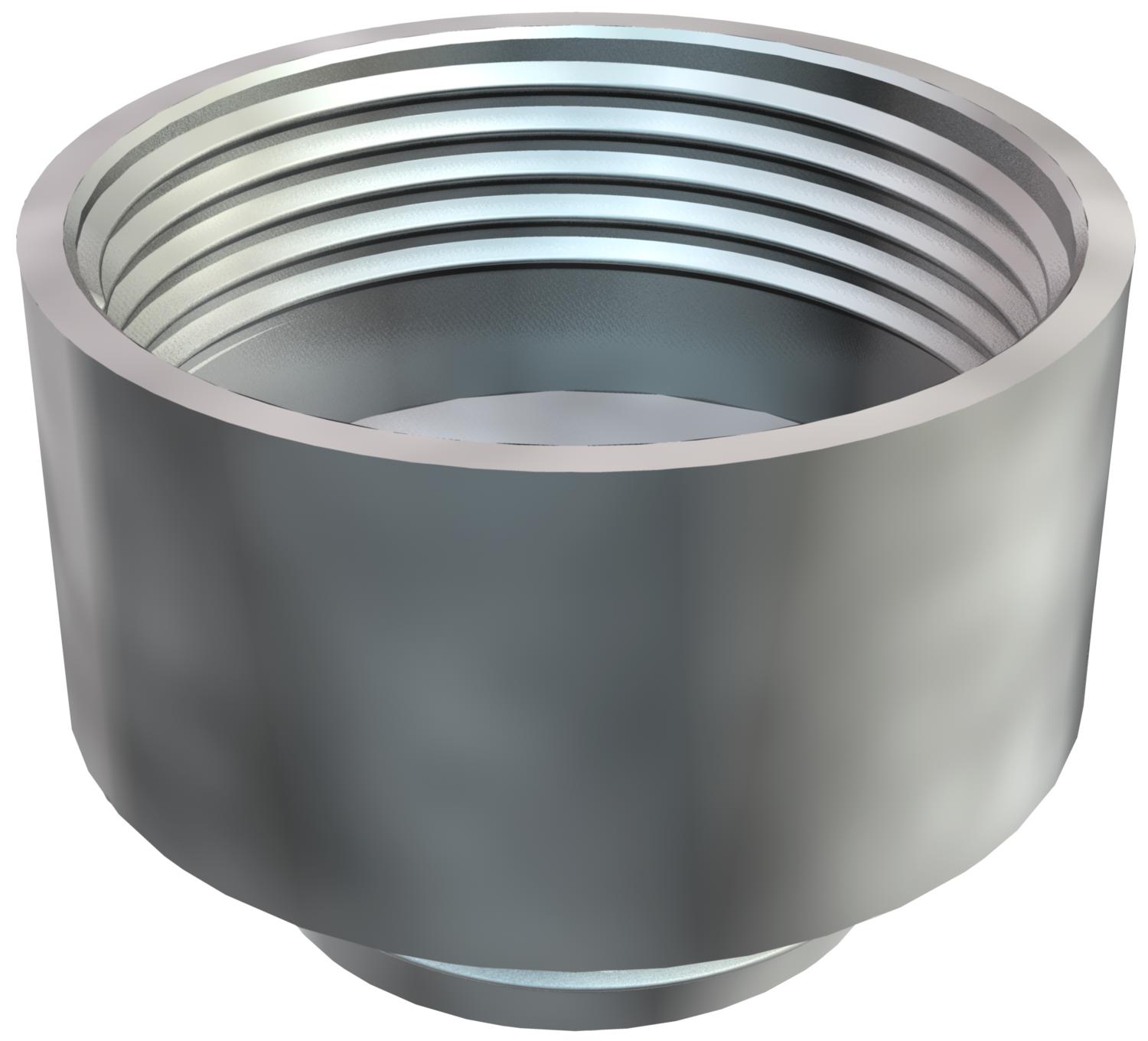

Adapter expansion M - PG

Item no. 2088318 | EAN 4012195390961

Item no. / Types

Thread dimension, metric, external

Thread dimension, PG, internal

WAF

Product description

Product description

The areas of application for brass cable glands range from junction boxes as a distribution/connection box up to large industrial applications for safe floor routing to switchgear cabinets with a control and distribution function. For high mechanical requirements, OBO can offer the entire family with long and short connection threads and locknuts with a metric and Pg thread.

Technical data

Technical data

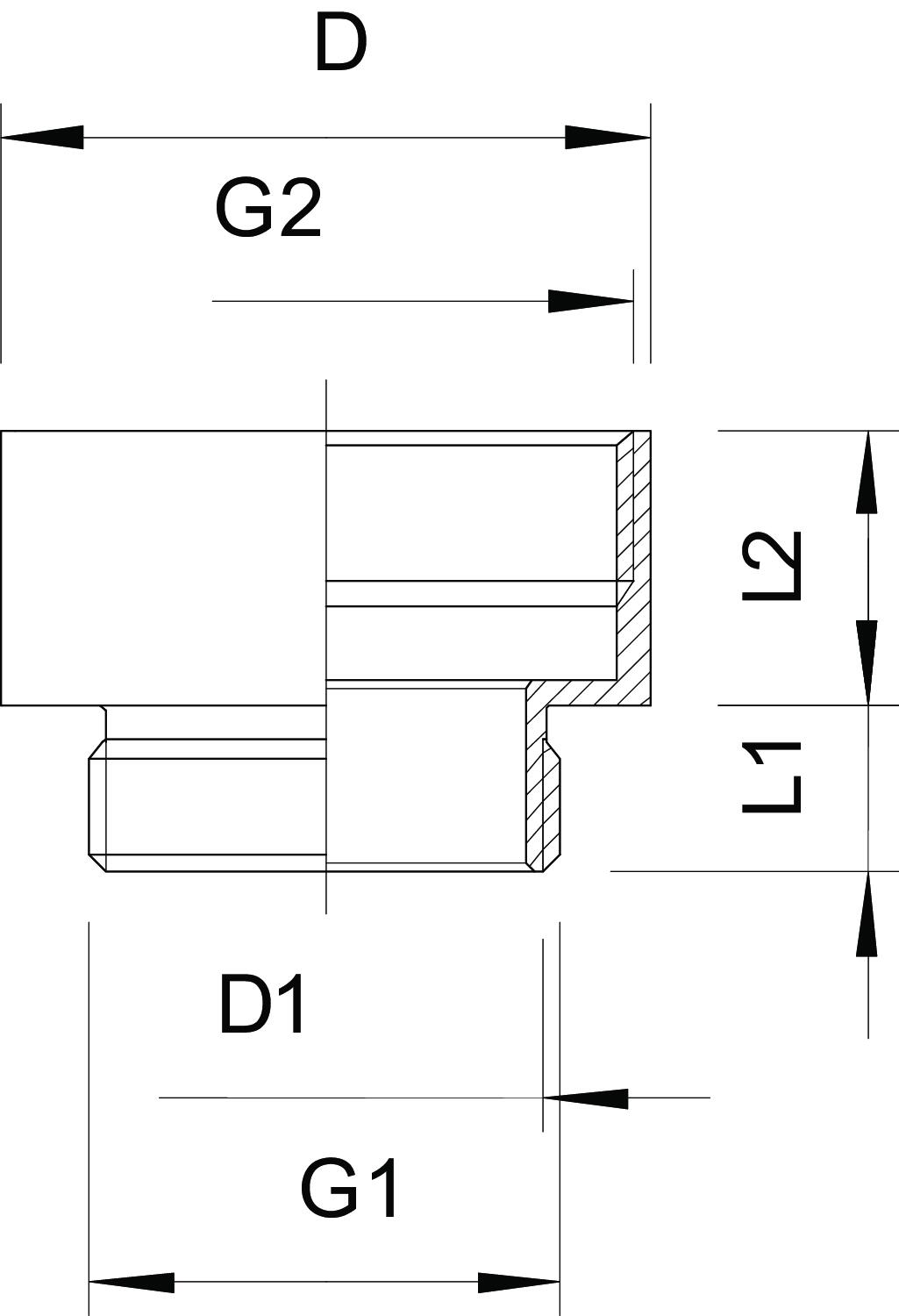

Dimension	M20-PG16
Dimension D	24 mm
Dimension E	23,9 mm
Dimension L	19,5 mm
Dimension L1	6 mm
Dimension L2	13,5 mm
Dimension L3	9 mm
explosion-proof	no

Material	Brass
Nickel-plated	yes
Surface	Nickel-plated
Thread dimension, metric, external	20
Thread dimension, PG, internal	16
Thread type: External thread	Metric
Thread type: Internal thread	PG

All types

All types

Types	Thread dimension, metric, external	Thread dimension, PG, internal	WAF	Item no.	Quantity	SSU
165 ADA M12-PG7	12	7	14	2088301	piece	20 piece
165 ADA M16-PG11	16	11	22	2088302	piece	20 piece
165 ADA M20-PG13	20	13.5	22	2088303	piece	20 piece
165 ADA M25-PG16	25	16	27	2088304	piece	20 piece
165 ADA M40-PG29	40	29	43	2088306	piece	10 piece
165 ADA M50-PG42	50	42	57	2088307	piece	10 piece
165 ADA M16-PG9	16	9	17	2088312	piece	20 piece
165 ADA M20-PG11	20	11	22	2088316	piece	20 piece
165 ADA M20-PG16	20	16	-	2088318	piece	20 piece
165 ADA M25-PG21	25	21	30	2088324	piece	20 piece
165 ADA M32-PG29	32	29	40	2088330	piece	10 piece
165 ADA M63-PG48	63	48	65	2088348	piece	4 piece
