Adapter expansion M - PG 12 | | | 7 | 14
morepic-1 morepic-2

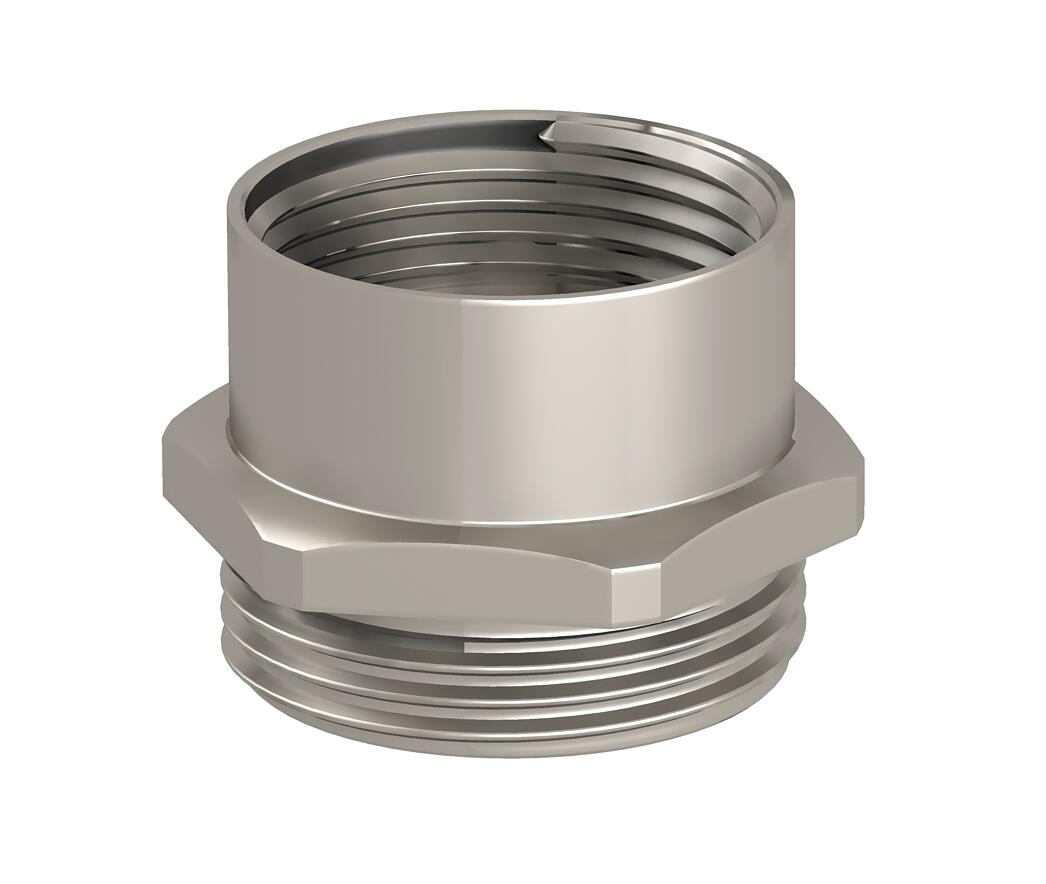

Adapter expansion M - PG

Item no. 2088301 | EAN 4012195372325

Product description
Product description
Adapter for converting a metric threaded drill hole to a Pg threaded drill hole.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
  • Thread Pg
Technical data

Technical data

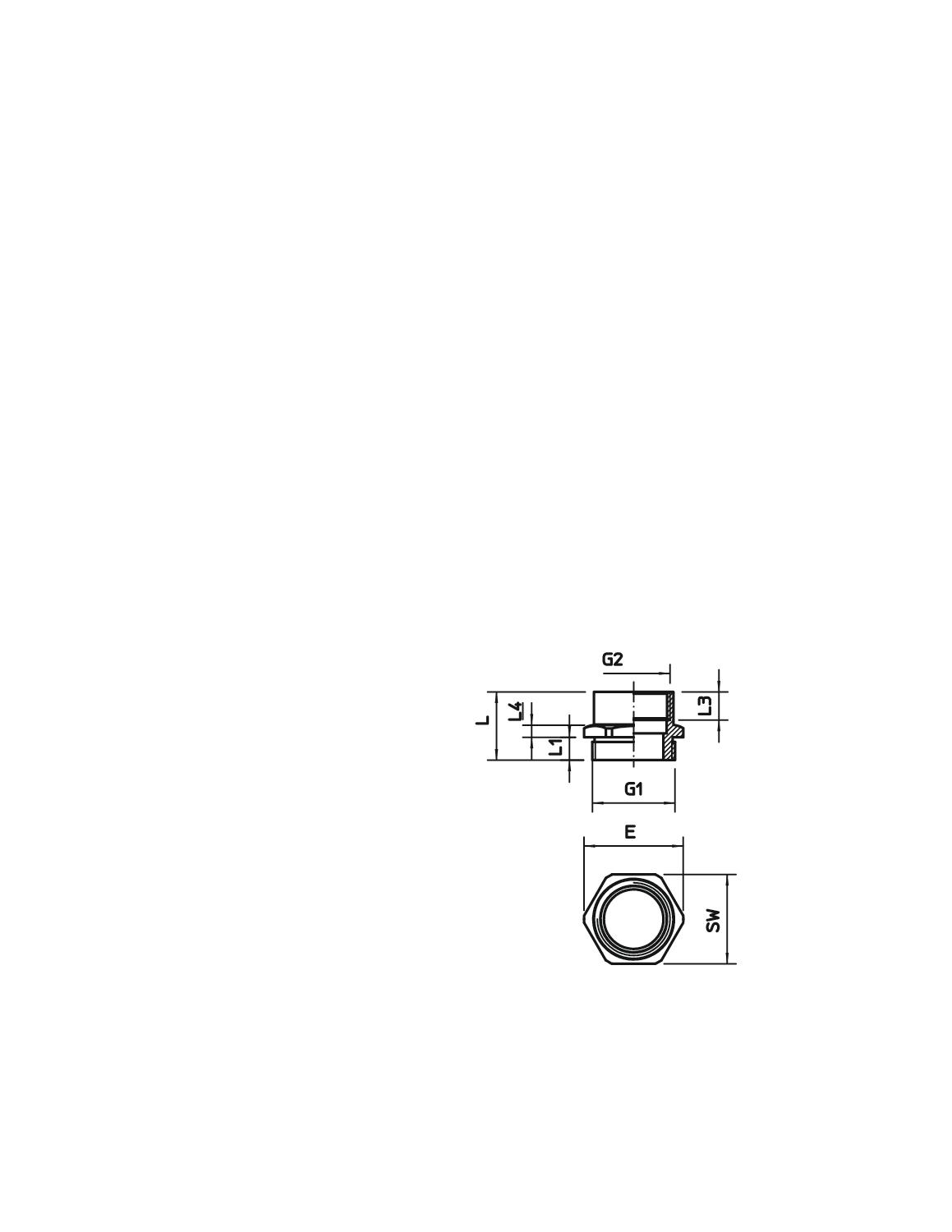

Dimension M12-PG7
Dimension D 8 mm
Dimension E 15,5 mm
Dimension L 16 mm
Dimension L1 6 mm
Dimension L3 9 mm
Dimension L4 3 mm
explosion-proof no
Material Brass
Nickel-plated yes
Surface Nickel-plated
Thread dimension, metric, external 12
Thread dimension, PG, internal 7
Thread type: External thread Metric
Thread type: Internal thread PG
WAF 14
All types

All types

Types Thread dimension, metric, external Thread dimension, PG, internal WAF Item no. Quantity SSU
165 ADA M12-PG7 12 7 14 2088301
20 piece
165 ADA M16-PG11 16 11 22 2088302
20 piece
165 ADA M20-PG13 20 13.5 22 2088303
20 piece
165 ADA M25-PG16 25 16 27 2088304
20 piece
165 ADA M40-PG29 40 29 43 2088306
10 piece
165 ADA M50-PG42 50 42 57 2088307
10 piece
165 ADA M16-PG9 16 9 17 2088312
20 piece
165 ADA M20-PG11 20 11 22 2088316
20 piece
165 ADA M20-PG16 20 16 - 2088318
20 piece
165 ADA M25-PG21 25 21 30 2088324
20 piece
165 ADA M32-PG29 32 29 40 2088330
10 piece
165 ADA M63-PG48 63 48 65 2088348
4 piece
