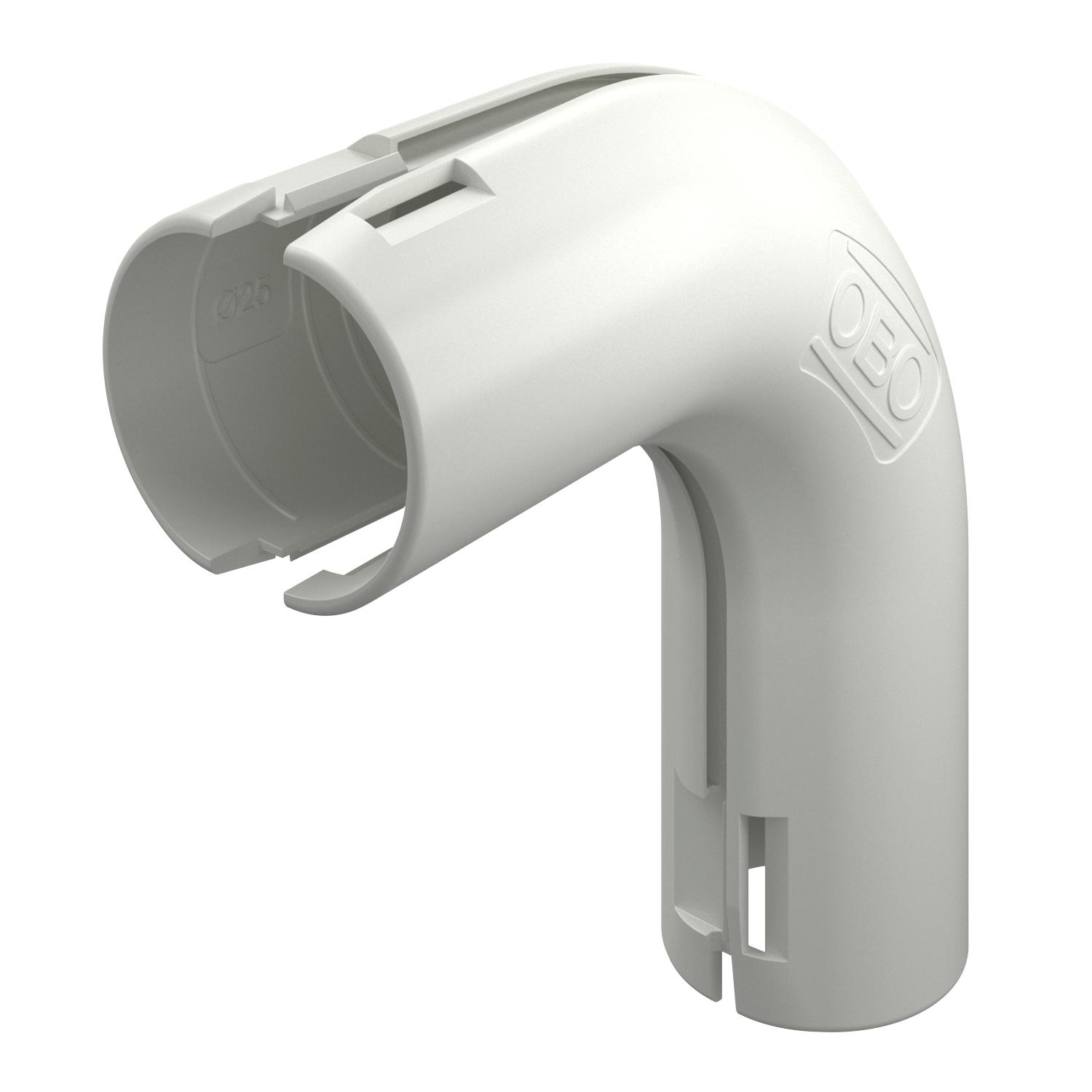

90° Quick pipe bend, pure white

Item no. 2154066 | EAN 4012196869855

Product description

Product description

Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 44
  • Thread metric
Technical data

Technical data

Angle of the bend 90 °
Brushed surface no
Colour Pure white; RAL 9010

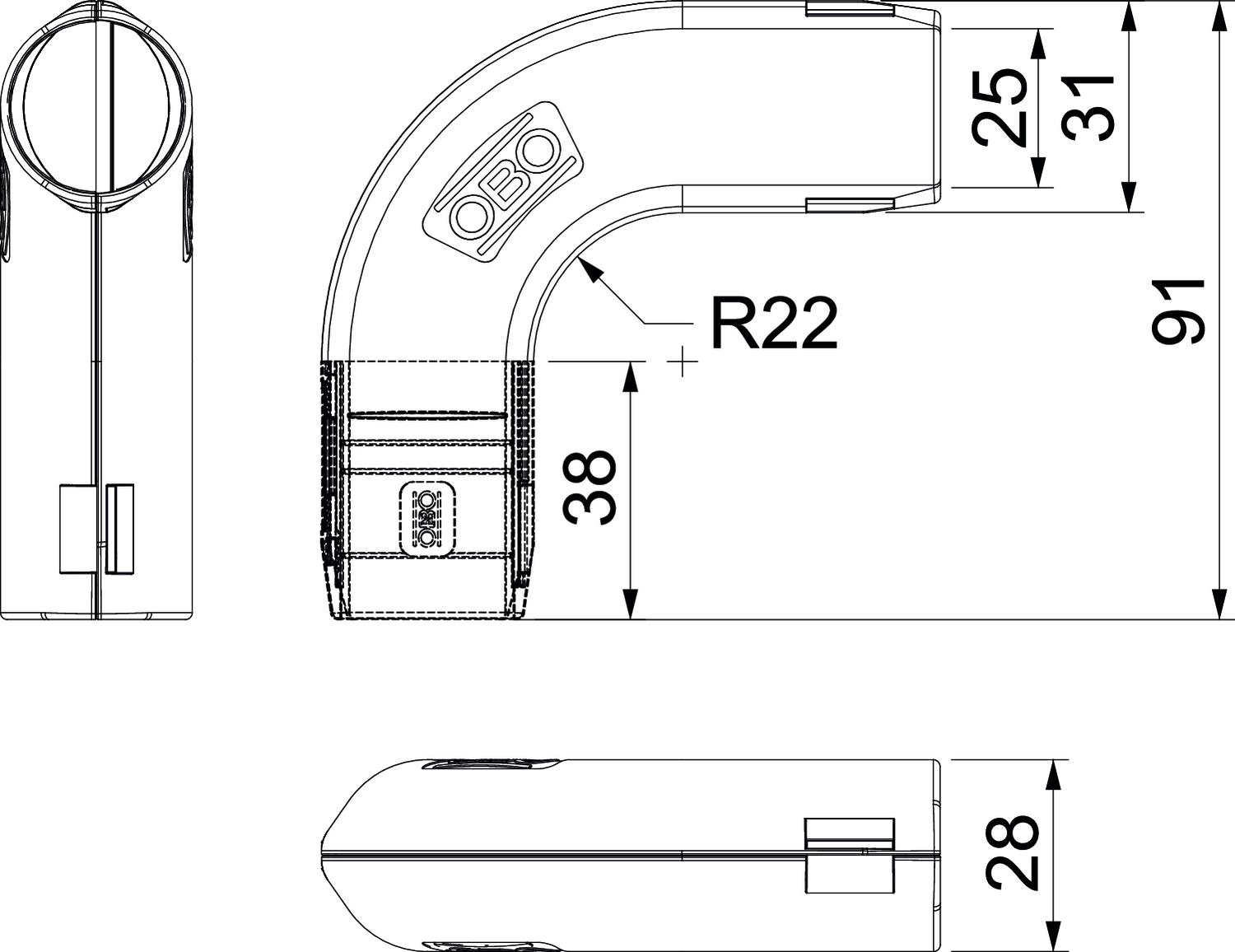

Dimension M25
Dimension B 31,2 mm
Dimension d 25 mm
Dimension L 91 mm
Dimension L1 38 mm
Dimension R 22 mm
Flexible no
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Polished surface no
Two-part yes
Version for Connector
With inspection opening and lid no
With sleeve no
All types

All types

Types Size Item no. Quantity SSU
3000 BMS M16 RW 2154062
10 piece
3000 BMS M20 RW 2154064
5 piece
3000 BMS M25 RW 2154066
5 piece
3000 BMS M32 RW 2154068
5 piece
