90° mesh cable tray bend G

Item no. / Types

Width

Wire diameter

Maintain electrical functions	no

Product description

Product description

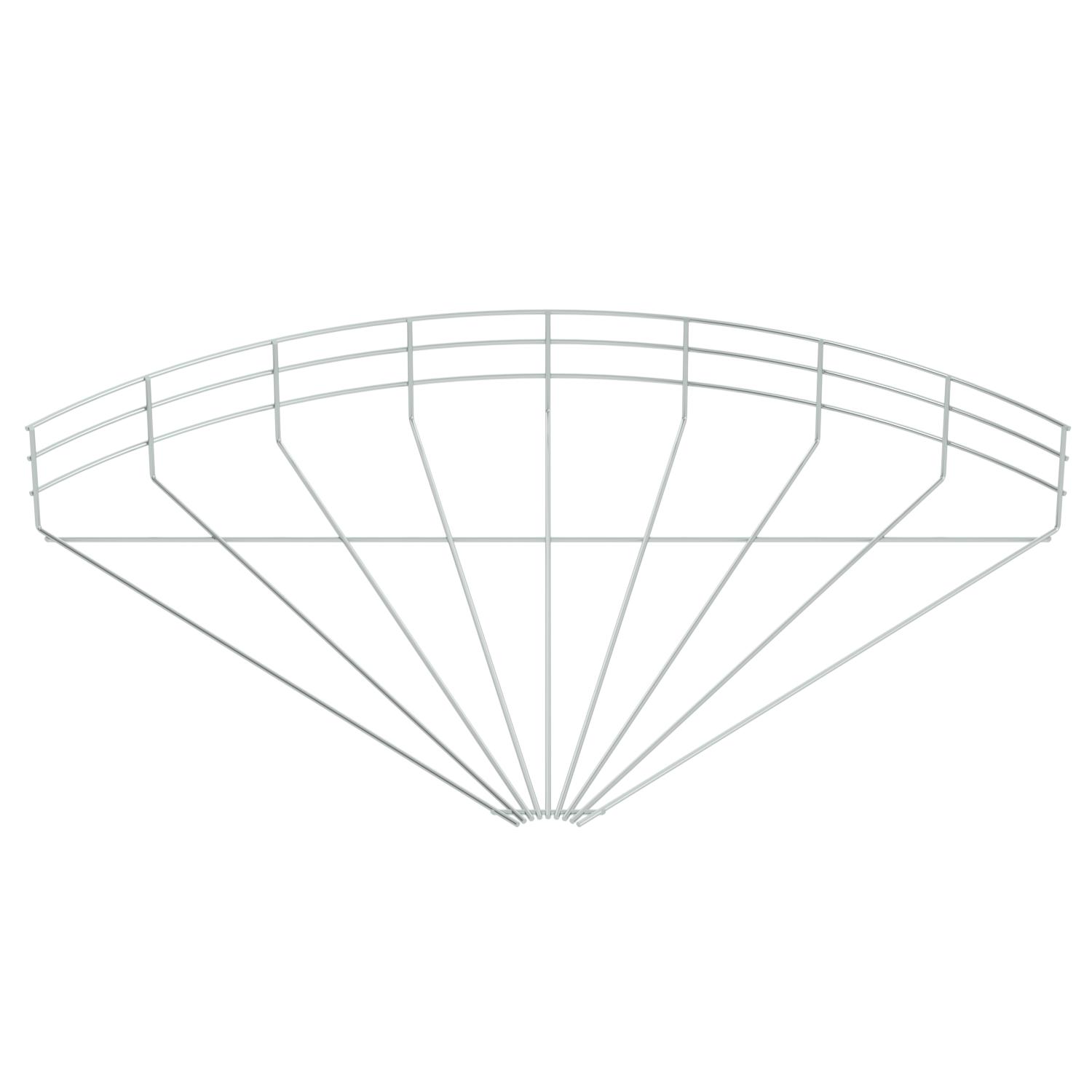

90° bend, horizontal, for all mesh cable trays of 105 mm side height.

Technical data

Bend (angle)	90°
Connector version	Without connectors
Dimension	105x600

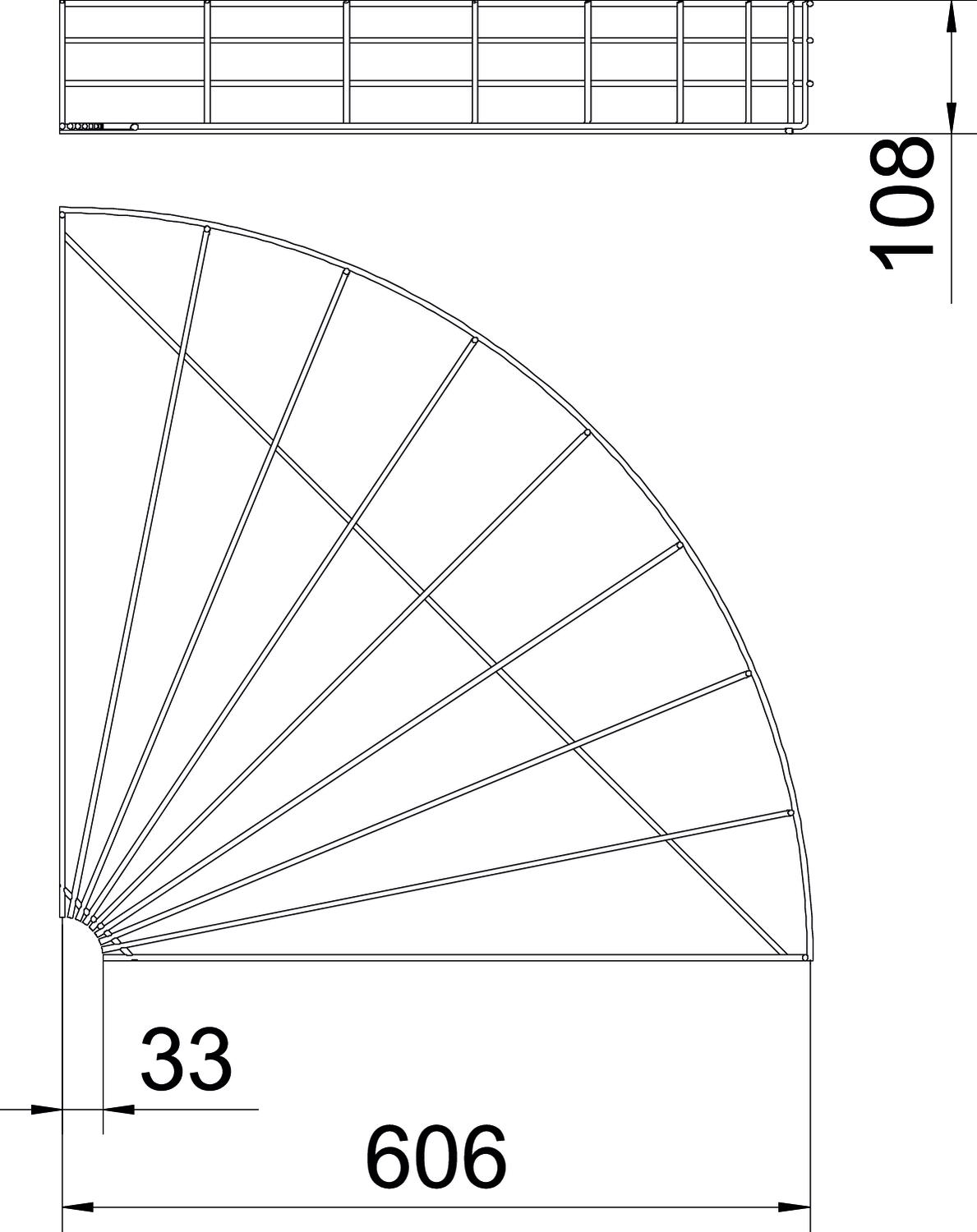

Dimension A	33 mm
Dimension B	606 mm
Dimension H	108 mm
Height	105 mm
Maintain electrical functions	no

All types

Types	Width	Wire diameter	Maintain electrical functions	Item no.	Quantity	SSU
GRB 90 110 G	100 mm	3.9 mm	no	6002370	piece	1 piece
GRB 90 115 G	150 mm	3.9 mm	no	6002372	piece	1 piece
GRB 90 120 G	200 mm	4.8 mm	no	6002374	piece	1 piece
GRB 90 130 G	300 mm	4.8 mm	no	6002376	piece	1 piece
GRB 90 140 G	400 mm	4.8 mm	no	6002378	piece	1 piece
GRB 90 150 G	500 mm	4.8 mm	no	6002382	piece	1 piece
GRB 90 160 G	600 mm	4.8 mm	no	6002384	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Joint connector G	GSV 34 G	6016596	piece	20 piece
