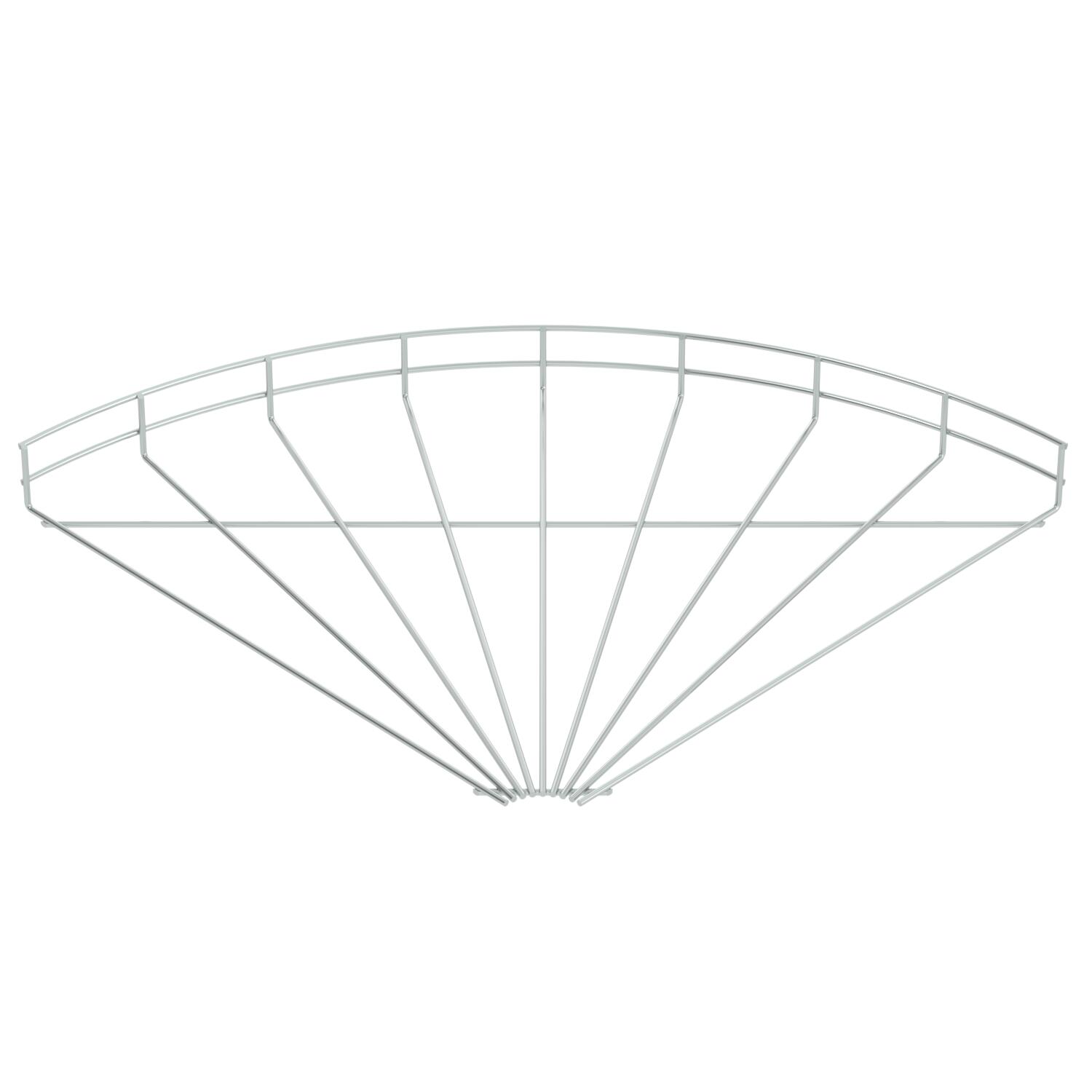

90° mesh cable tray bend G

Item no. 6001963 | EAN 4012196352876

no
Product description

Product description

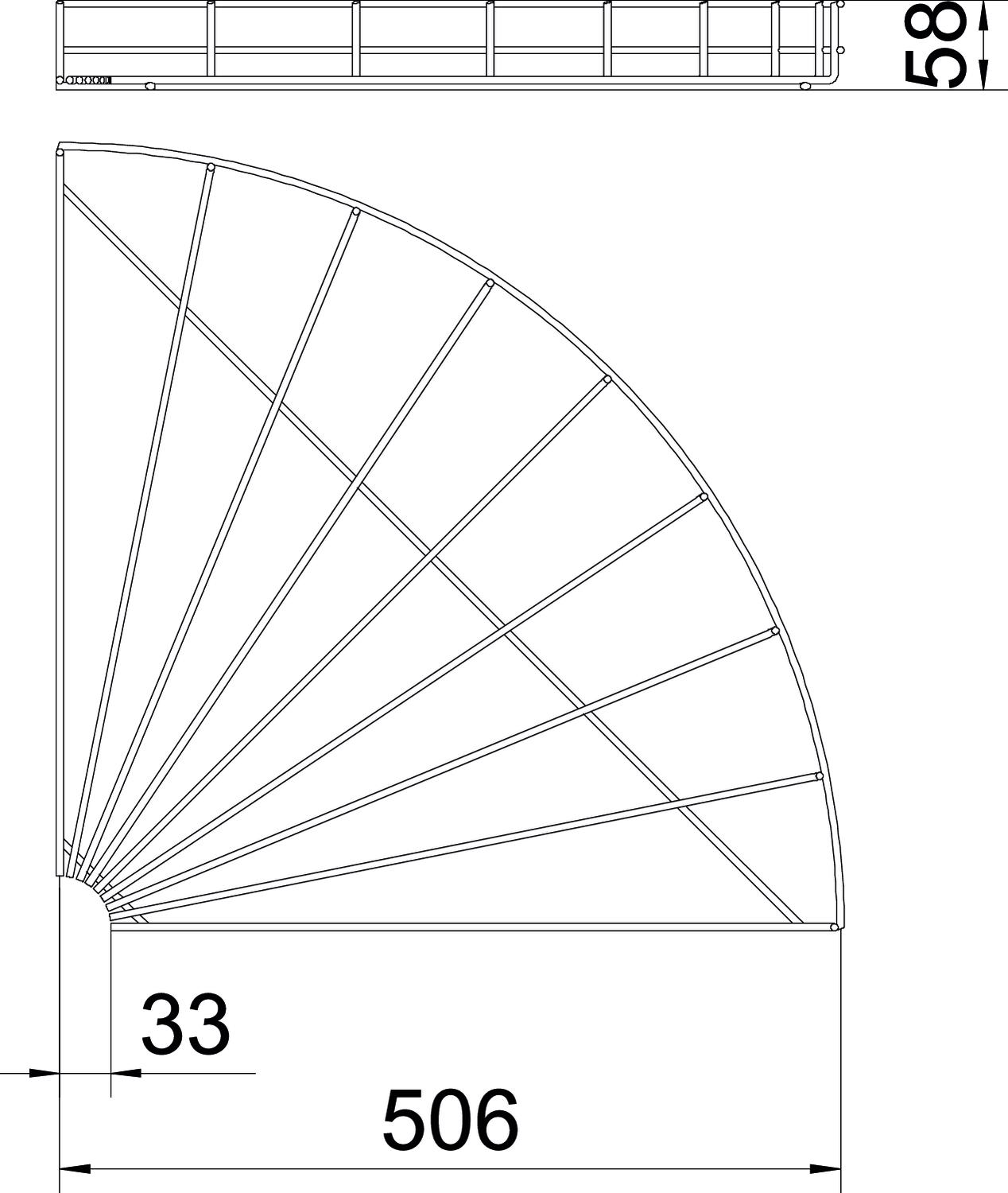

90° bend, horizontal, for all mesh cable trays of 55 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 55 mm
Technical data

Technical data

Bend (angle) 90°
Connector version Without connectors
Dimension 55x500
Height 55 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Electrogalvanized
Type Horizontal bend
Width 500 mm
Width 19,69 in
Wire diameter 4,8 mm
All types

All types

Types Width Wire diameter Maintain electrical functions Item no. Quantity SSU
GRB 90 510 G 100 mm 3.9 mm no 6001920
1 piece
GRB 90 515 G 150 mm 3.9 mm no 6001998
1 piece
GRB 90 520 G 200 mm 3.9 mm no 6001939
1 piece
GRB 90 530 G 300 mm 4.8 mm no 6001947
1 piece
GRB 90 540 G 400 mm 4.8 mm no 6001955
1 piece
GRB 90 550 G 500 mm 4.8 mm no 6001963
1 piece
GRB 90 560 G 600 mm 4.8 mm no 6001971
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector G Joint connector G GSV 34 G 6016596
20 piece
