90° mesh cable tray bend G 300 | 4.8 | no
morepic-1 morepic-2 video-1 video-2

90° mesh cable tray bend G

Item no. 6002376 | EAN 4012195456261

no
Product description

Product description

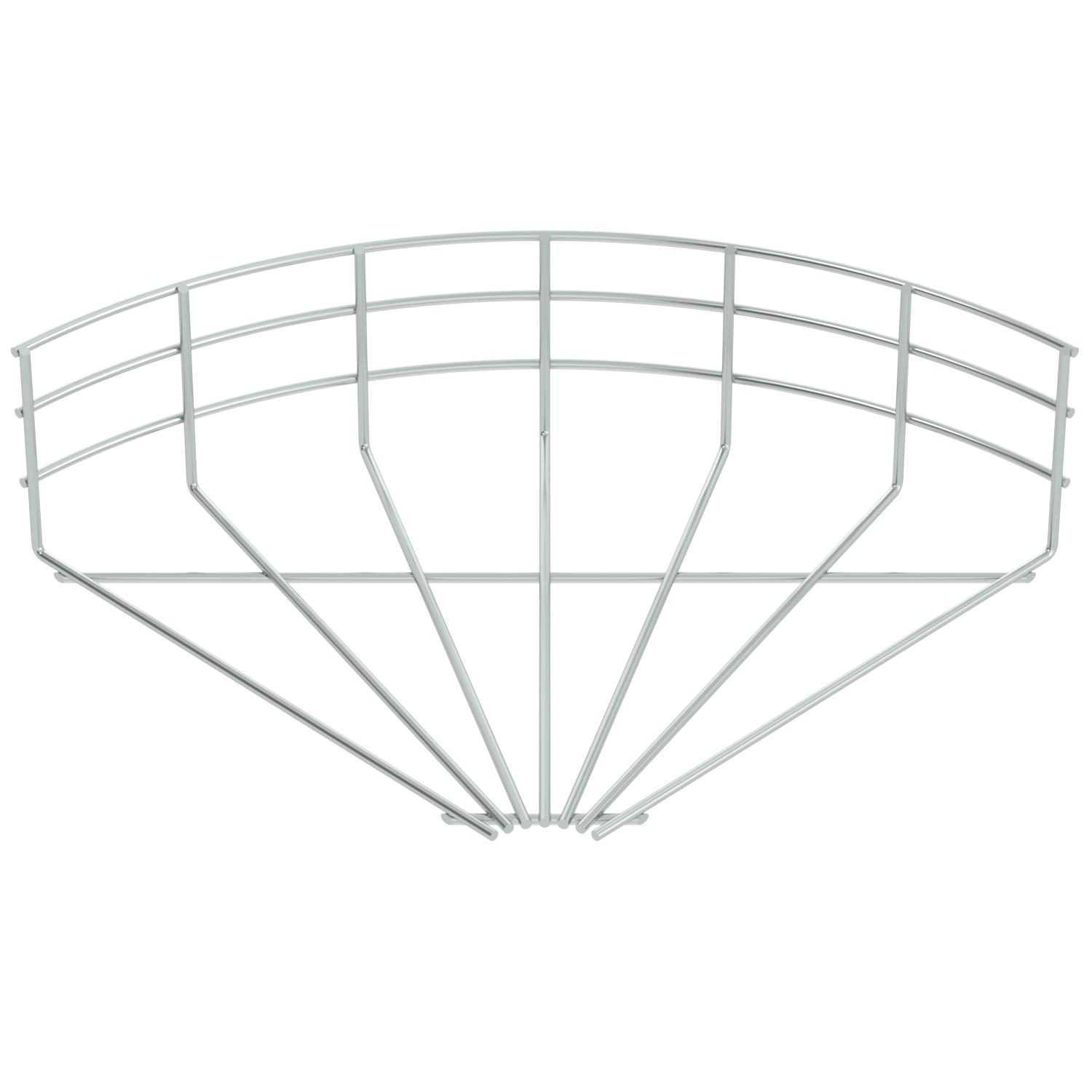

90° bend, horizontal, for all mesh cable trays of 105 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Bend (angle) 90°
Connector version Without connectors
Dimension 105x300
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Electrogalvanized
Type Horizontal bend
Wire diameter 4,8 mm

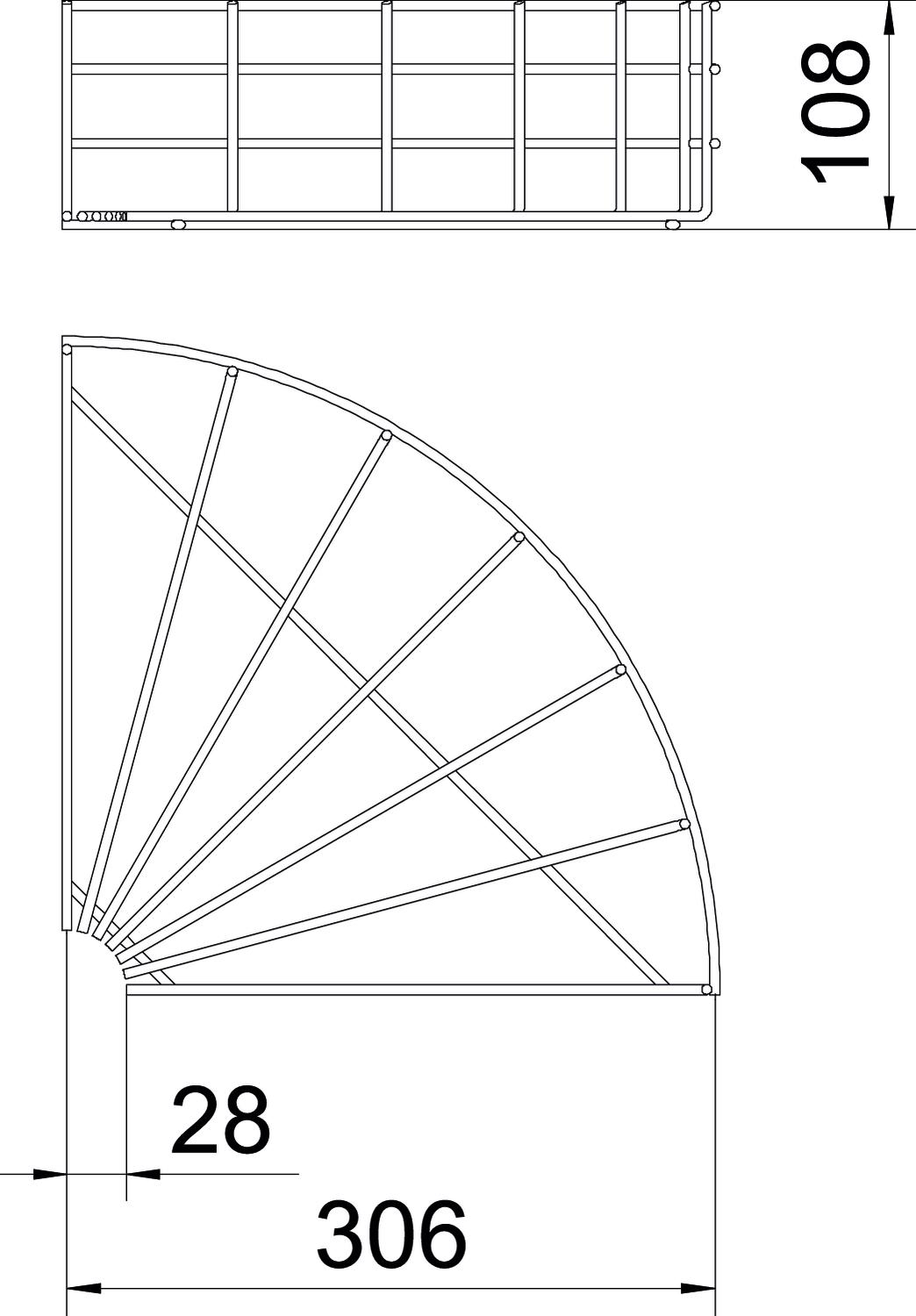

Dimensions

Dimension A 28 mm
Dimension B 306 mm
Dimension H 108 mm
Height 105 mm
Width 300 mm
Width 11,81 in
All types

All types

Types Width Wire diameter Maintain electrical functions Item no. Quantity SSU
GRB 90 110 G 100 mm 3.9 mm no 6002370
1 piece
GRB 90 115 G 150 mm 3.9 mm no 6002372
1 piece
GRB 90 120 G 200 mm 4.8 mm no 6002374
1 piece
GRB 90 130 G 300 mm 4.8 mm no 6002376
1 piece
GRB 90 140 G 400 mm 4.8 mm no 6002378
1 piece
GRB 90 150 G 500 mm 4.8 mm no 6002382
1 piece
GRB 90 160 G 600 mm 4.8 mm no 6002384
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector G Joint connector G GSV 34 G 6016596
20 piece
Downloads

Download

Download
Download

Declaration of conformity GRB 90 130 G / 6002376 , 0.15MB , pdf
Download
UK Declaration of Conformity GRB 90 130 G / 6002376 , 0.14MB , pdf
Download
REACH Declaration of conformity GRB 90 130 G / 6002376 , 0.12MB , pdf
Download
RoHS Declaration of conformity GRB 90 130 G / 6002376 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
