90° mesh cable tray bend G

Item no. 6002370 | EAN 4012195456230

no
Product description
Product description

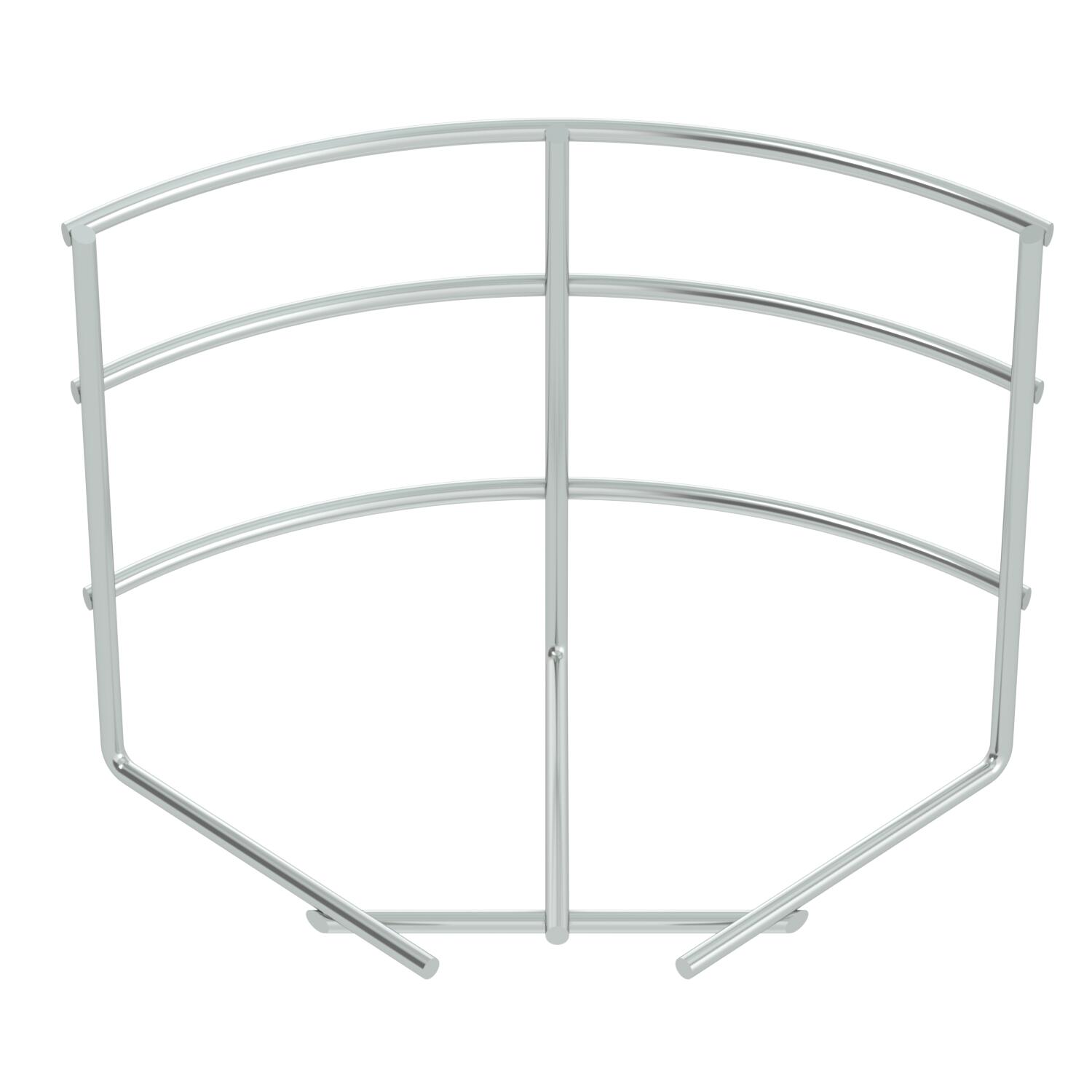

90° bend, horizontal, for all mesh cable trays of 105 mm side height.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Bend (angle) 90°
Colour zinc
Connector version Without connectors
Dimension 105x100

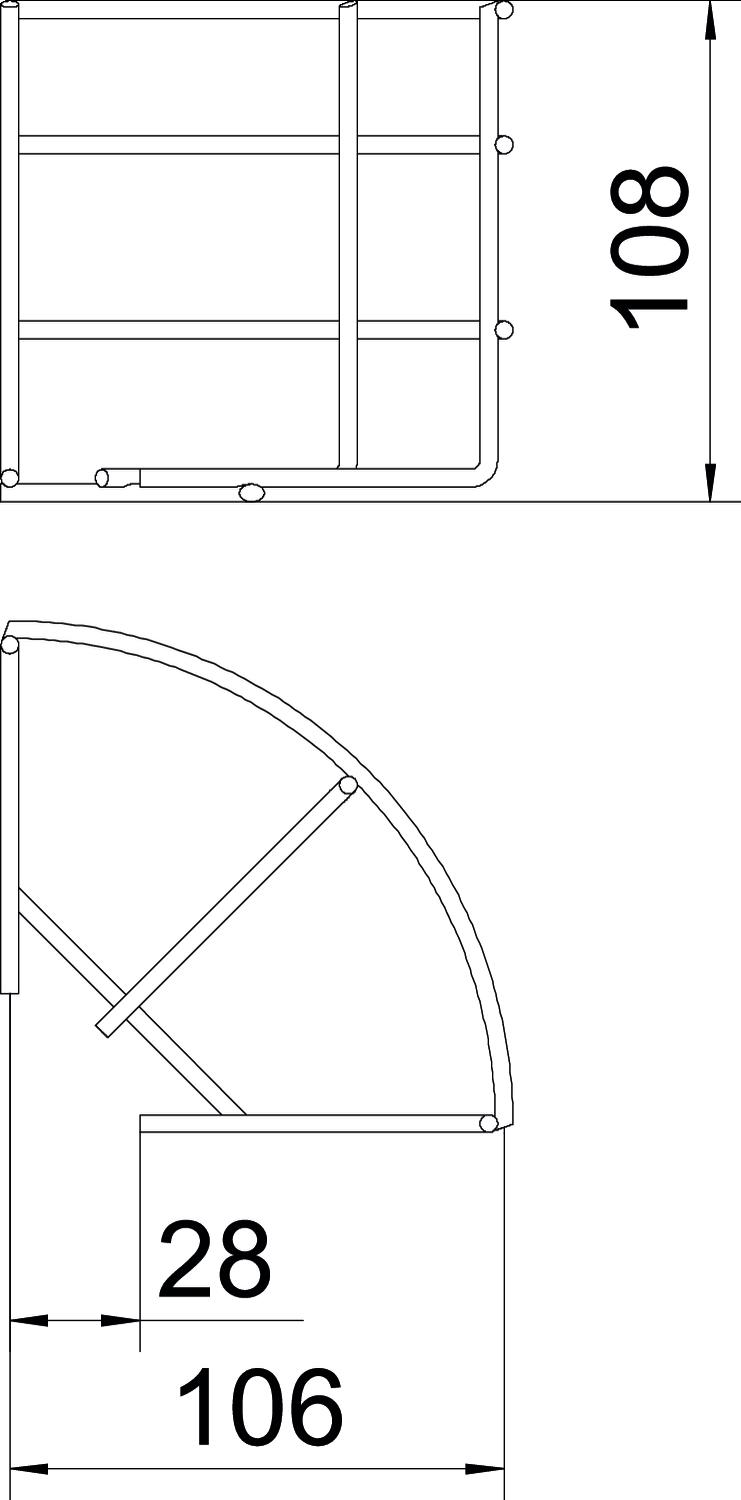

Dimension A 28 mm
Dimension B 106 mm
Dimension H 108 mm
Height 105 mm
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Surface Electrogalvanized
Type Horizontal bend
Width 3,94 in
Width 100 mm
Wire diameter 3,9 mm
All types

All types

Types Width Wire diameter Maintain electrical functions Item no. Quantity SSU
GRB 90 110 G 100 mm 3.9 mm no 6002370
1 piece
GRB 90 115 G 150 mm 3.9 mm no 6002372
1 piece
GRB 90 120 G 200 mm 4.8 mm no 6002374
1 piece
GRB 90 130 G 300 mm 4.8 mm no 6002376
1 piece
GRB 90 140 G 400 mm 4.8 mm no 6002378
1 piece
GRB 90 150 G 500 mm 4.8 mm no 6002382
1 piece
GRB 90 160 G 600 mm 4.8 mm no 6002384
1 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Joint connector G Joint connector G GSV 34 G 6016596
20 piece
Downloads

Download

Download
Download

EU declaration of conformity GRB 90 110 G / 6002370 , 0.10MB , pdf
Download
UK Declaration of Conformity GRB 90 110 G / 6002370 , 0.14MB , pdf
Download
REACH Declaration of conformity GRB 90 110 G / 6002370 , 0.12MB , pdf
Download
RoHS Declaration of conformity GRB 90 110 G / 6002370 , 0.12MB , pdf
Download

Download
Download

No invitation to tender text is available for this product.
