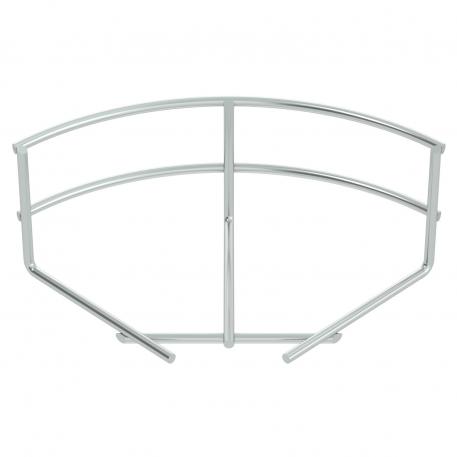

90° mesh cable tray bend G

Item no. 6001920 | EAN 4012196352630

Item no. / Types

Width

Wire diameter

Maintain electrical functions	no

Product description

Product description

90° bend, horizontal, for all mesh cable trays of 55 mm side height.

Technical data

Technical data

Bend (angle)	90°
Connector version	Without connectors
Dimension	55x100
Height	55 mm
Maintain electrical functions	no
Material	Steel

Rustproof steel, pickled	no
Surface	Electrogalvanized
Width	3,94 in
Width	100 mm
Wire diameter	3,9 mm

All types

All types

Types	Width	Wire diameter	Maintain electrical functions	Item no.	Quantity	SSU
GRB 90 510 G	100 mm	3.9 mm	no	6001920	piece	1 piece
GRB 90 515 G	150 mm	3.9 mm	no	6001998	piece	1 piece
GRB 90 520 G	200 mm	3.9 mm	no	6001939	piece	1 piece
GRB 90 530 G	300 mm	4.8 mm	no	6001947	piece	1 piece
GRB 90 540 G	400 mm	4.8 mm	no	6001955	piece	1 piece
GRB 90 550 G	500 mm	4.8 mm	no	6001963	piece	1 piece
GRB 90 560 G	600 mm	4.8 mm	no	6001971	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Joint connector G	GSV 34 G	6016596	piece	20 piece

Downloads

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

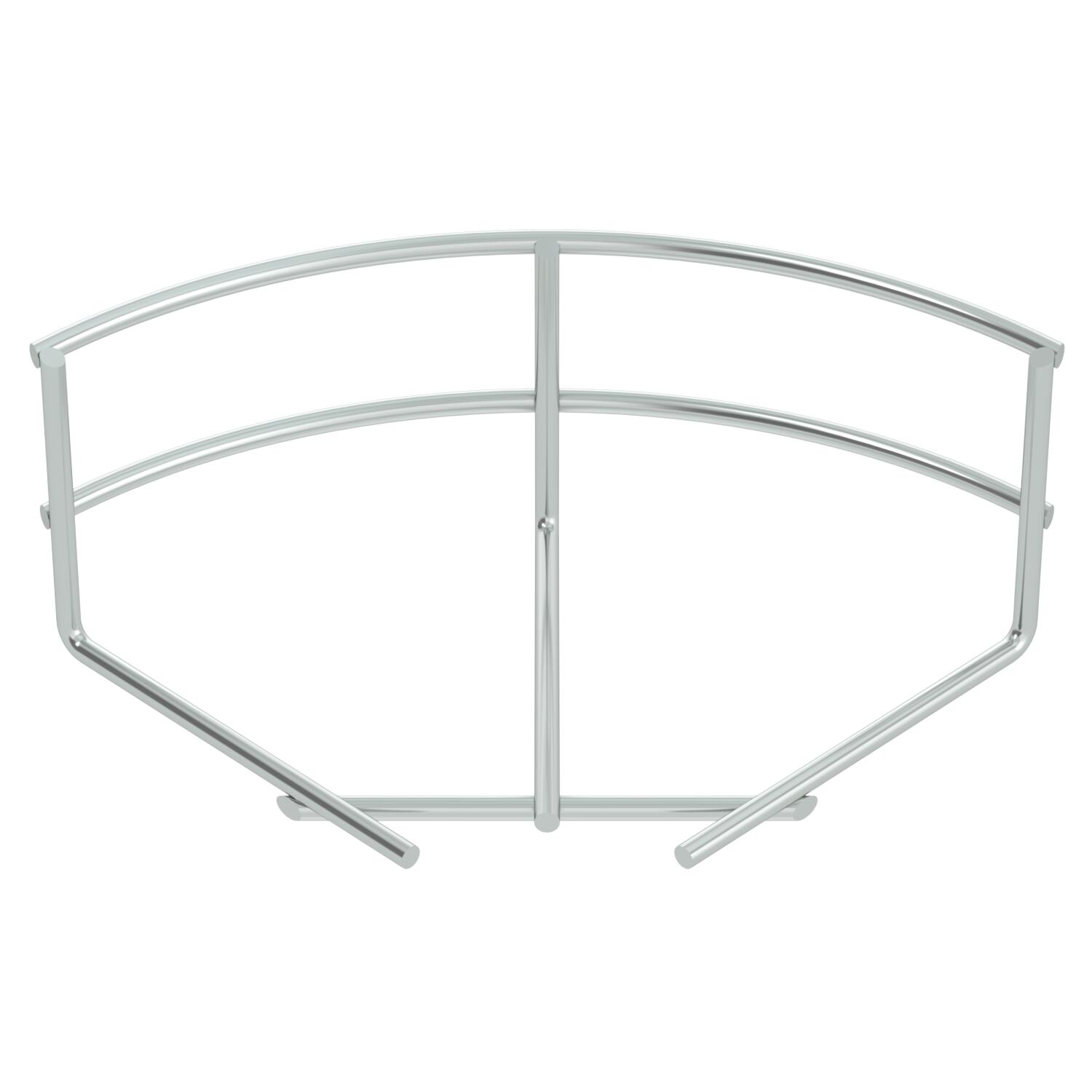

Product graphic GRB 90 510 G / 6001920, 54.01 kB, jpg

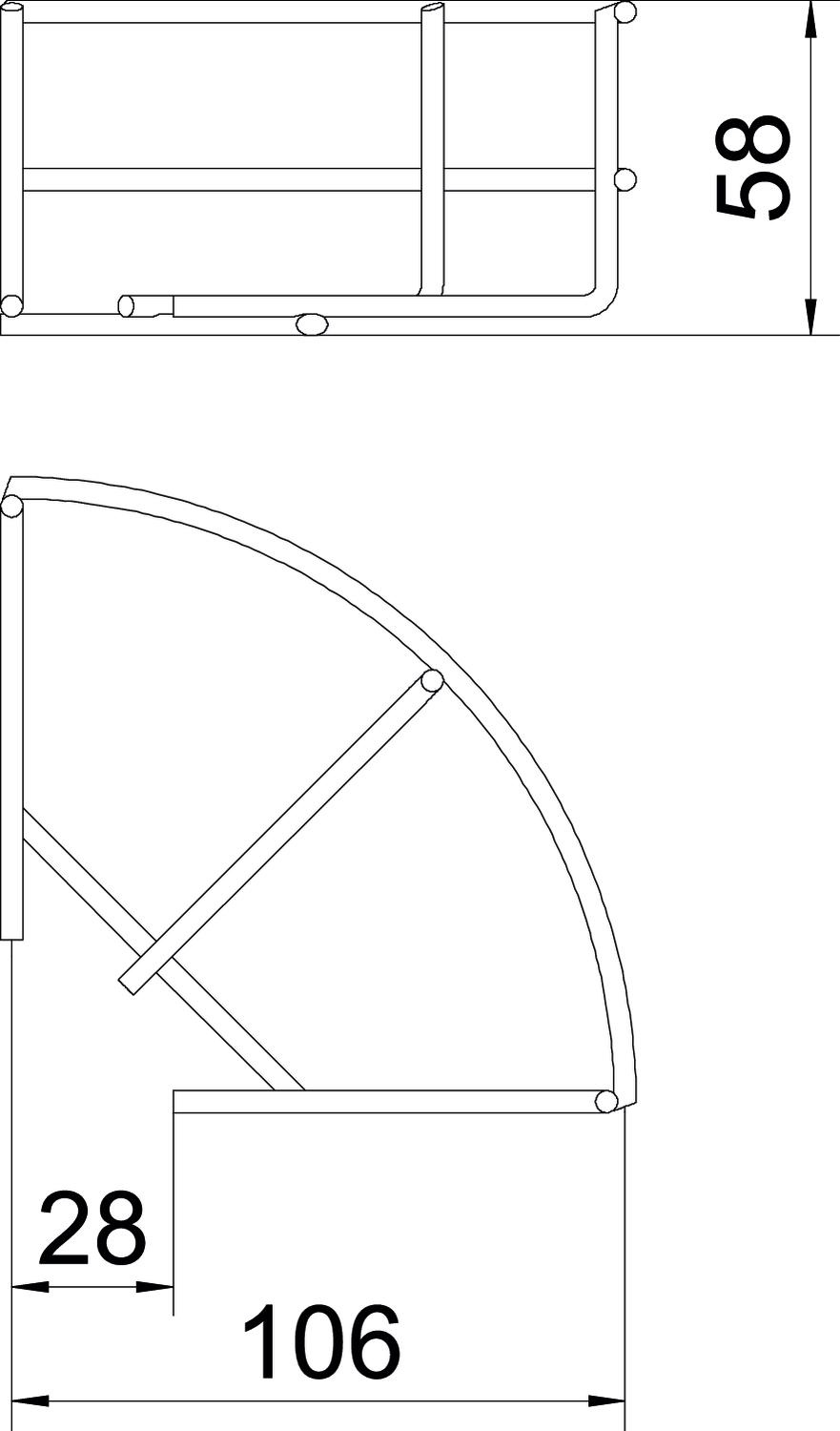

Scale drawing GRB 90 510 G / 6001920, 62.77 kB, jpg

GRB 90 510 G / 6001920

6001920_KSTP1.stp, 464.12 kB

Gitterinnen-Systeme_Gitterrinnenbogen 90°_GRB90510.rfa, 332.00 kB
