90° mesh cable tray bend FT

Item no. / Types

Width

Wire diameter

Maintain electrical functions	no

Product description

Product description

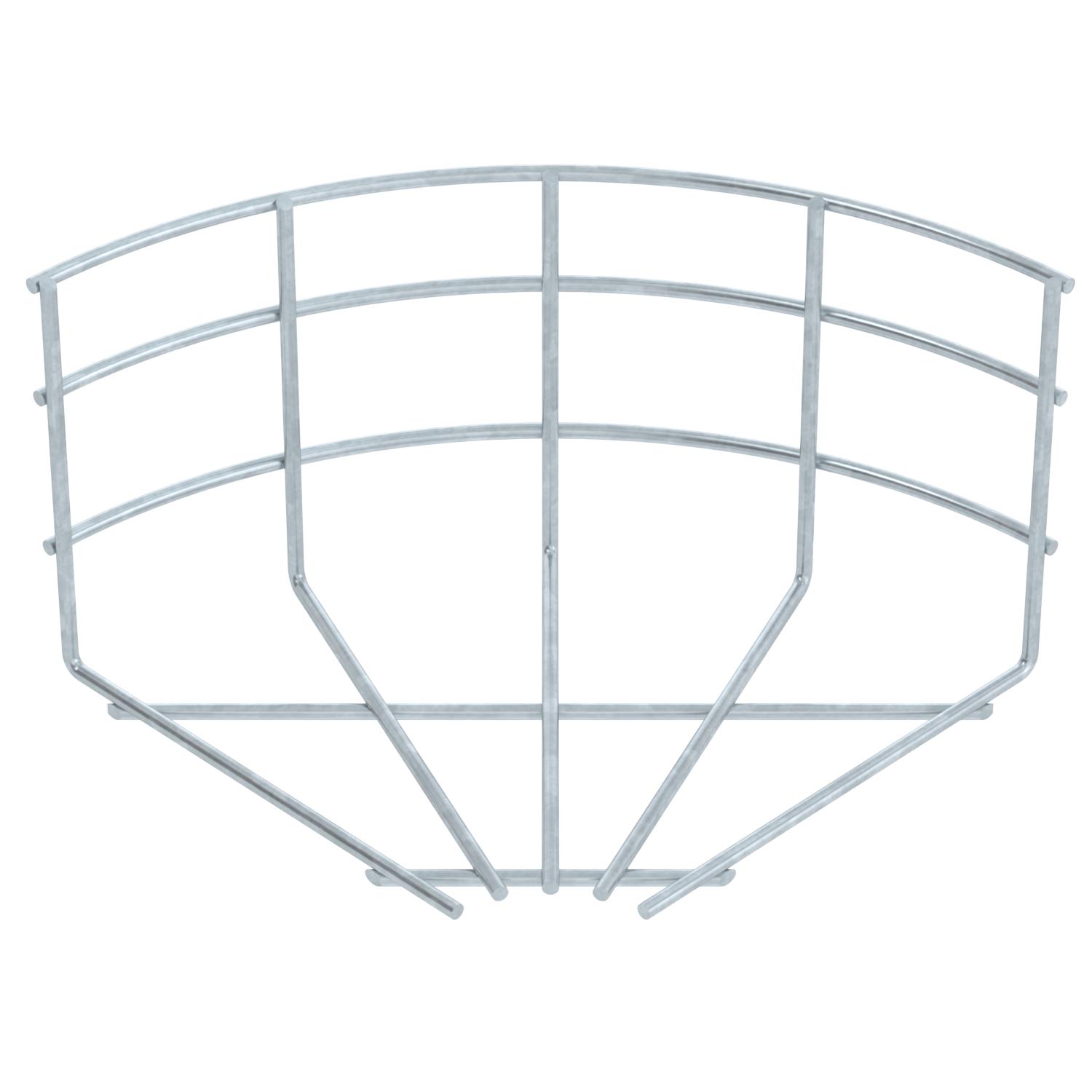

90° bend, horizontal, for all mesh cable trays of 105 mm side height.

Technical data

Bend (angle)	90°
Connector version	Without connectors
Dimension	105x150

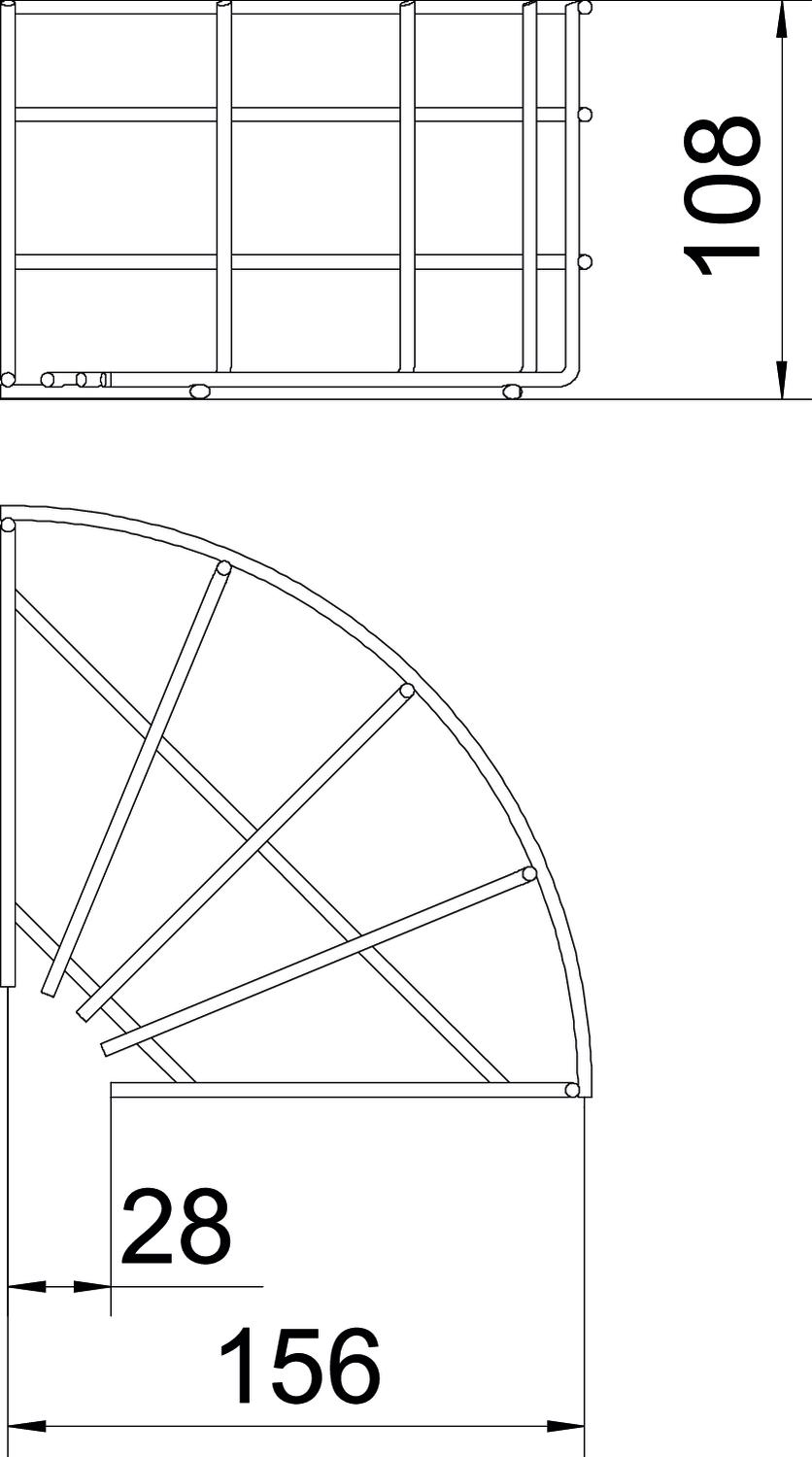

Dimension A	28 mm
Dimension B	156 mm
Dimension H	108 mm
Height	105 mm
Maintain electrical functions	no

All types

Types	Width	Wire diameter	Maintain electrical functions	Item no.	Quantity	SSU
GRB 90 110 FT	100 mm	3.9 mm	no	6002307	piece	1 piece
GRB 90 115 FT	150 mm	3.9 mm	no	6002311	piece	1 piece
GRB 90 120 FT	200 mm	4.8 mm	no	6002315	piece	1 piece
GRB 90 130 FT	300 mm	4.8 mm	no	6002323	piece	1 piece
GRB 90 140 FT	400 mm	4.8 mm	no	6002331	piece	1 piece
GRB 90 150 FT	500 mm	4.8 mm	no	6002358	piece	1 piece
GRB 90 160 FT	600 mm	4.8 mm	no	6002366	piece	1 piece
