90° Magic bend 85 FT 500 | Steel | Hot-dip galvanised
morepic-1 morepic-2 video-1

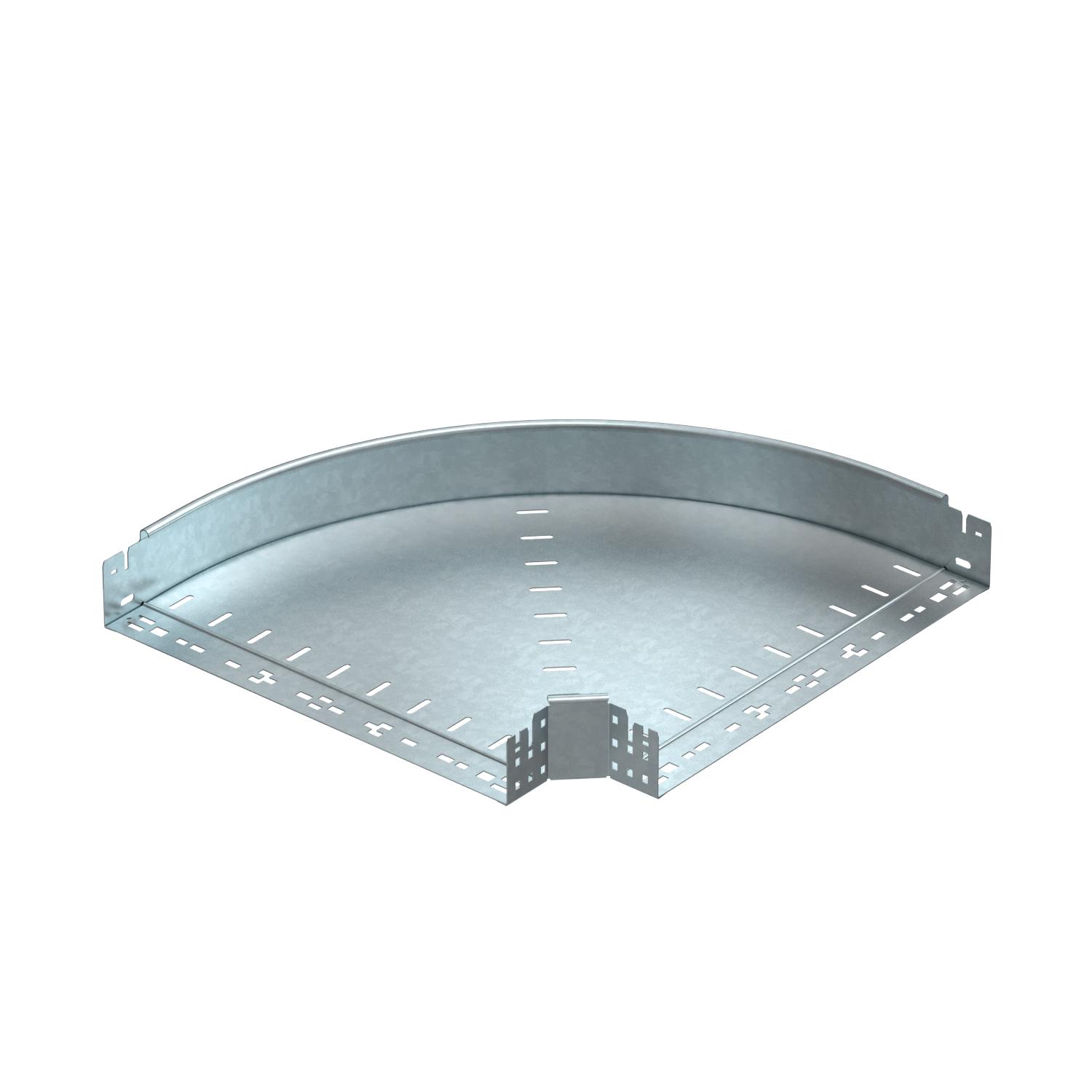

90° Magic bend 85 FT

Item no. 6041518 | EAN 4012195880011

Steel
Hot-dip galvanised
Product description

Product description

90° bend with quick connector system. For all cable tray types of 85 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
Dimension 85x500
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1,25 mm
Rustproof steel, pickled no
Side perforation no
Surface Hot-dip galvanised
Type of connector, cable support system Click fastening
Wide-span version no

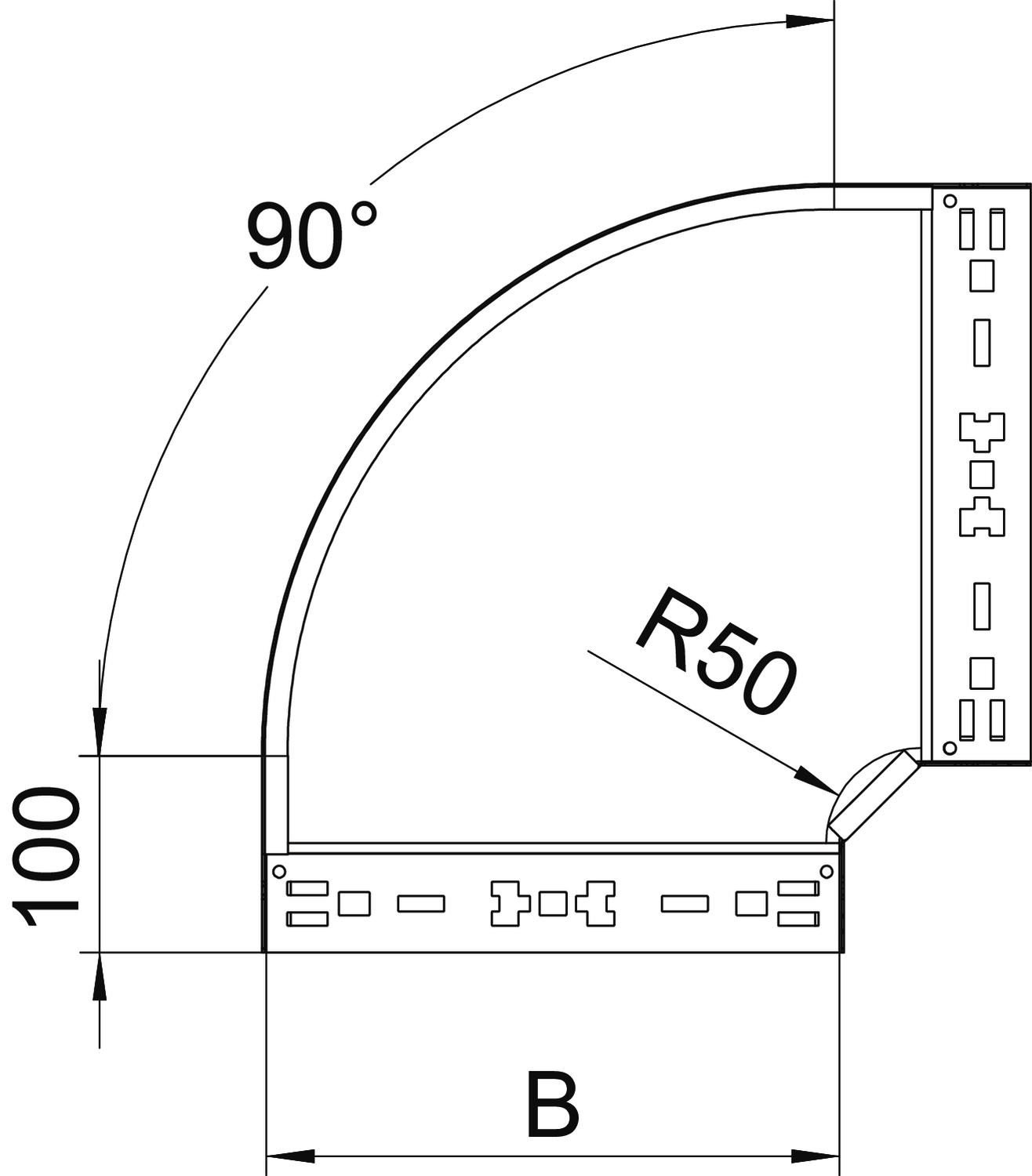

Dimensions

Dimension B 500 mm
Height 85 mm
Width 500 mm
All types

All types

Types Width Material Surface Item no. Quantity SSU
RBM 90 810 FT 100 mm Steel Hot-dip galvanised 6041510
1 piece
RBM 90 820 FT 200 mm Steel Hot-dip galvanised 6041512
1 piece
RBM 90 830 FT 300 mm Steel Hot-dip galvanised 6041514
1 piece
RBM 90 840 FT 400 mm Steel Hot-dip galvanised 6041516
1 piece
RBM 90 850 FT 500 mm Steel Hot-dip galvanised 6041518
1 piece
RBM 90 860 FT 600 mm Steel Hot-dip galvanised 6041520
1 piece
