90° Magic bend 85 FS 500 | Steel | Strip galvanized
morepic-1 morepic-2 video-1

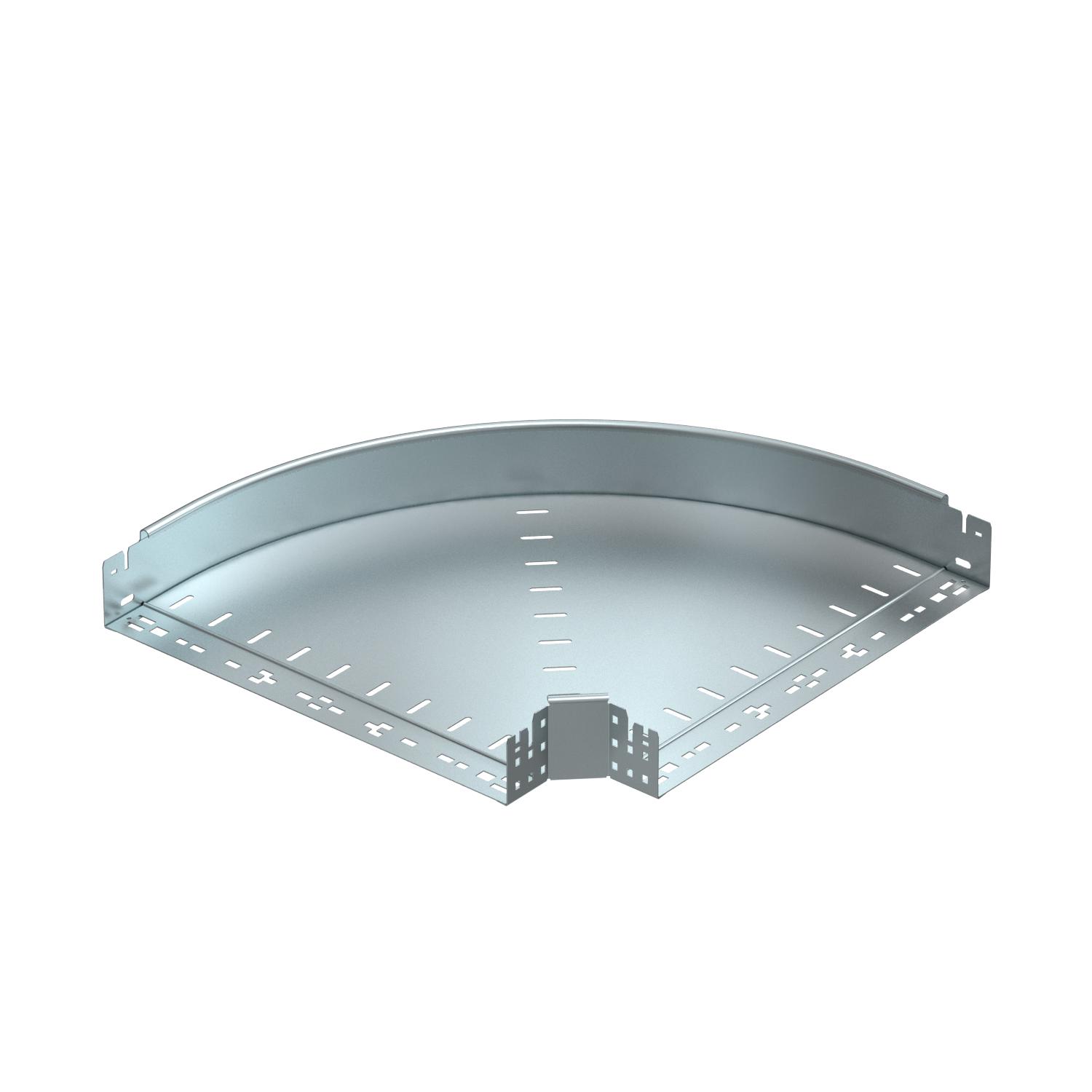

90° Magic bend 85 FS

Item no. 6041498 | EAN 4012195879954

Steel
Strip galvanized
Product description

Product description

90° bend with quick connector system. For all cable tray types of 85 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 85 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
Dimension 85x500
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1,25 mm
Rustproof steel, pickled no
Side perforation no
Surface Strip galvanized
Type of connector, cable support system Click fastening
Wide-span version no

Dimensions

Dimension B 500 mm
Height 85 mm
Width 500 mm
All types

All types

Types Width Material Surface Item no. Quantity SSU
RBM 90 810 FS 100 mm Steel Strip galvanized 6041490
1 piece
RBM 90 820 FS 200 mm Steel Strip galvanized 6041492
1 piece
RBM 90 830 FS 300 mm Steel Strip galvanized 6041494
1 piece
RBM 90 840 FS 400 mm Steel Strip galvanized 6041496
1 piece
RBM 90 850 FS 500 mm Steel Strip galvanized 6041498
1 piece
RBM 90 860 FS 600 mm Steel Strip galvanized 6041500
1 piece
Downloads

Download

Download
Download

Download
REACH Declaration of conformity RBM 90 850 FS / 6041498 , 0.12MB , pdf
Download
RoHS Declaration of conformity RBM 90 850 FS / 6041498 , 0.12MB , pdf
Download

Download

RBM 90 850 FS / 6041498
