Note: This article is discontinued.

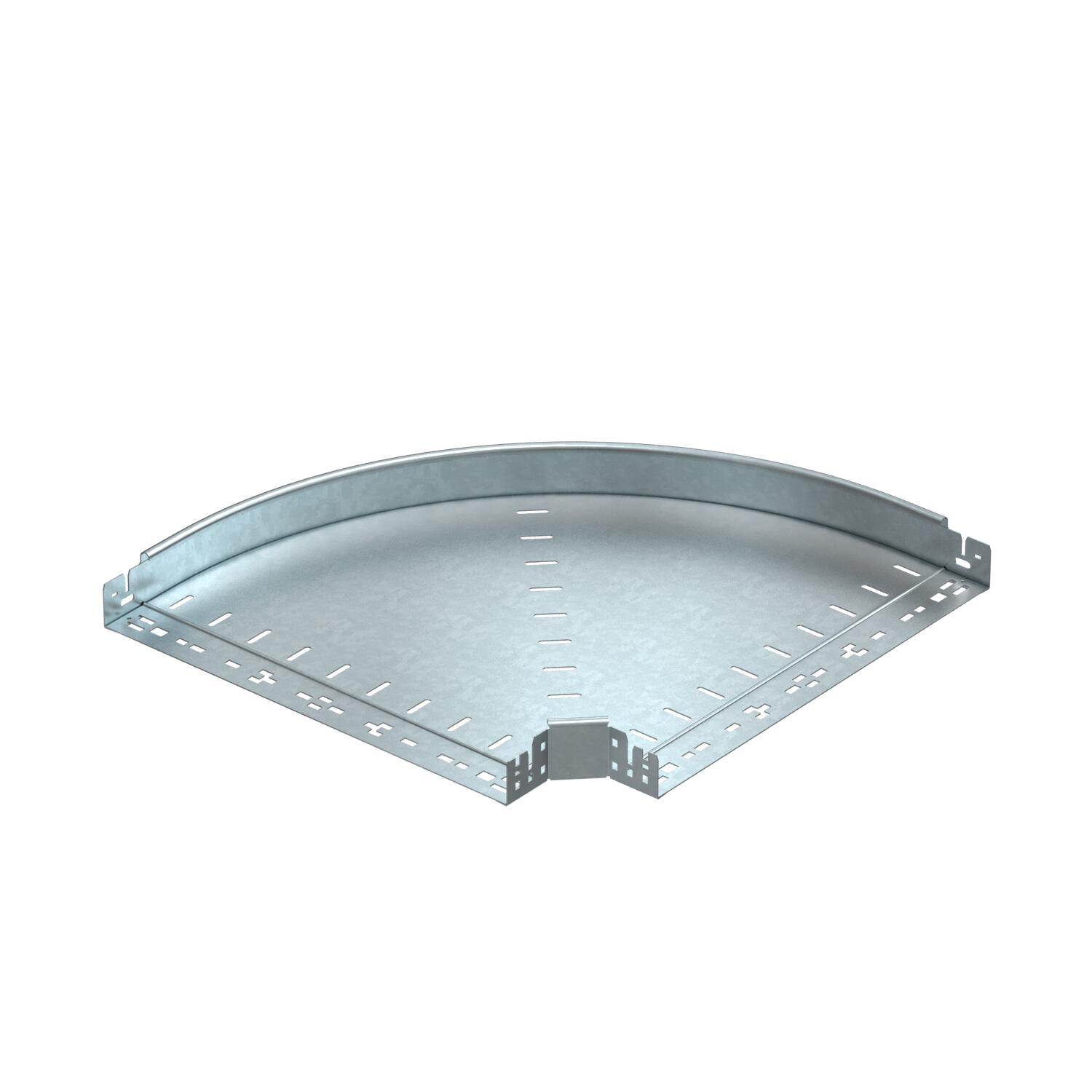

90° Magic bend 60 FT

Item no. 6041160 | EAN 4012195881933

Steel
Hot-dip galvanised
Product description
Product description
90° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537
Technical data

Technical data

Bend (angle) 90°
Change of direction Horizontal
Connector version Integrated connector
Dimension 60x500
Dimension B 500 mm
Height 2 in
Height 60 mm
Maintain electrical functions no
Material Steel
Mounting perforation in base no
NATO hole pattern no
Plate thickness 1,25 mm
Rustproof steel, pickled no
Side perforation no
Surface Hot-dip galvanised
Type Bend, rigid
Type of connector, cable support system Click fastening
Wide-span version no
Width 500 mm
All types

All types

Types Width Material Surface Item no. Quantity SSU
RBM 90 610 FT 100 mm Steel Hot-dip galvanised 6041150
1 piece
RBM 90 620 FT 200 mm Steel Hot-dip galvanised 6041154
1 piece
RBM 90 630 FT 300 mm Steel Hot-dip galvanised 6041156
1 piece
RBM 90 640 FT 400 mm Steel Hot-dip galvanised 6041158
1 piece
RBM 90 650 FT 500 mm Steel Hot-dip galvanised 6041160
1 piece
