Note: This article is discontinued.

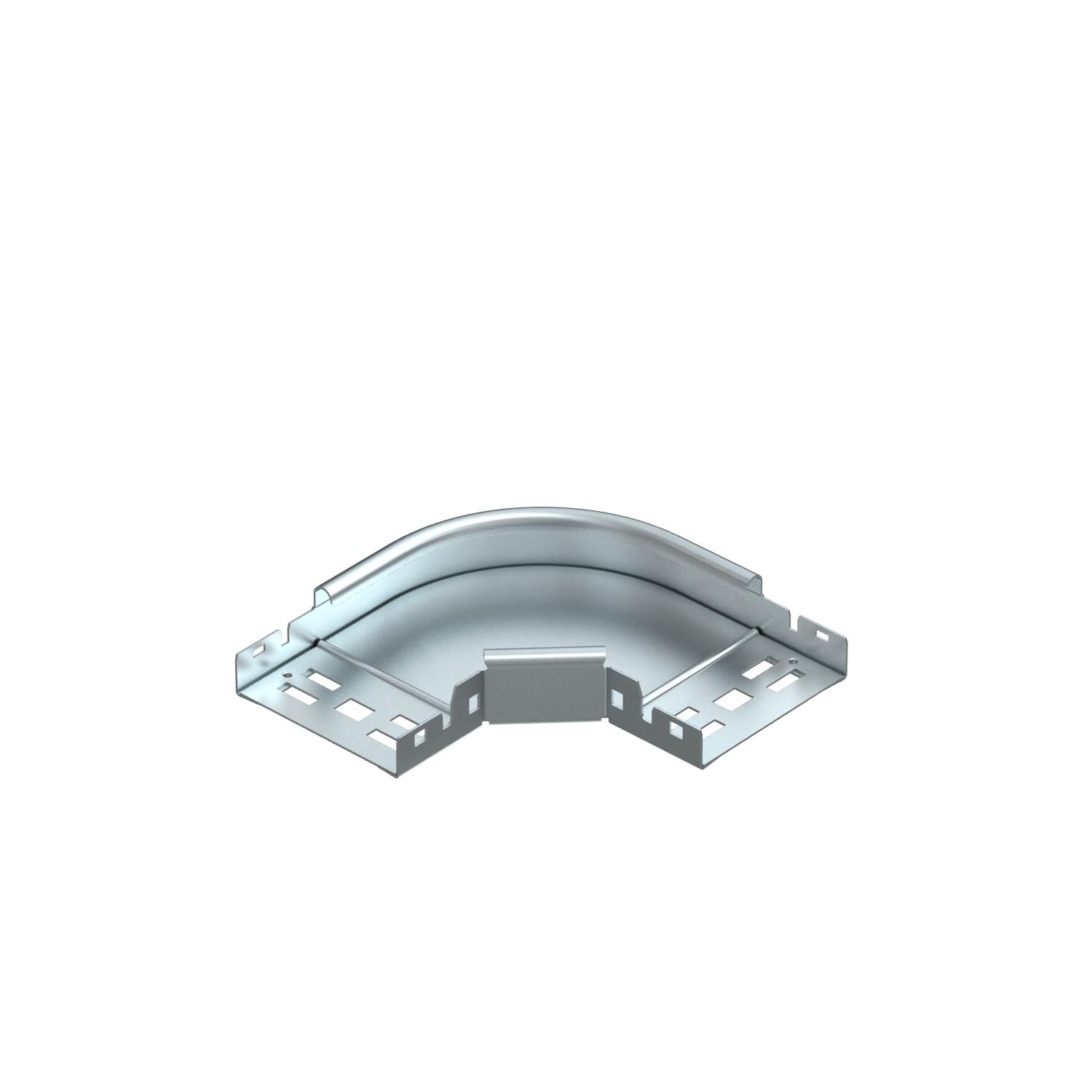

90° Magic bend 35 FS
Item no. 6041010 | EAN 4012195881322
- Product description
-
Product description90° bend with quick connector system. For all cable tray types of 35 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Colour zinc Connector version Integrated connector CO₂ Footprint (GWP) Cradle-to-Gate 2,0244 kg CO₂e / 1 Piece Dimension 35x100 Dimension B 100 mm Dimension R 50 mm Height 35 mm Height 1 in Maintain electrical functions no Material Steel Mounting perforation in base no NATO hole pattern no Plate thickness 1,25 mm Rustproof steel, pickled no Side perforation no Surface Strip galvanized Type of connector, cable support system Click fastening Wide-span version no Width 100 mm Width 4 in - All types
- Downloads
-
Mounting instructions General information on the mounting , 2.61MB , pdf
