90° bend with Z rung, FT

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

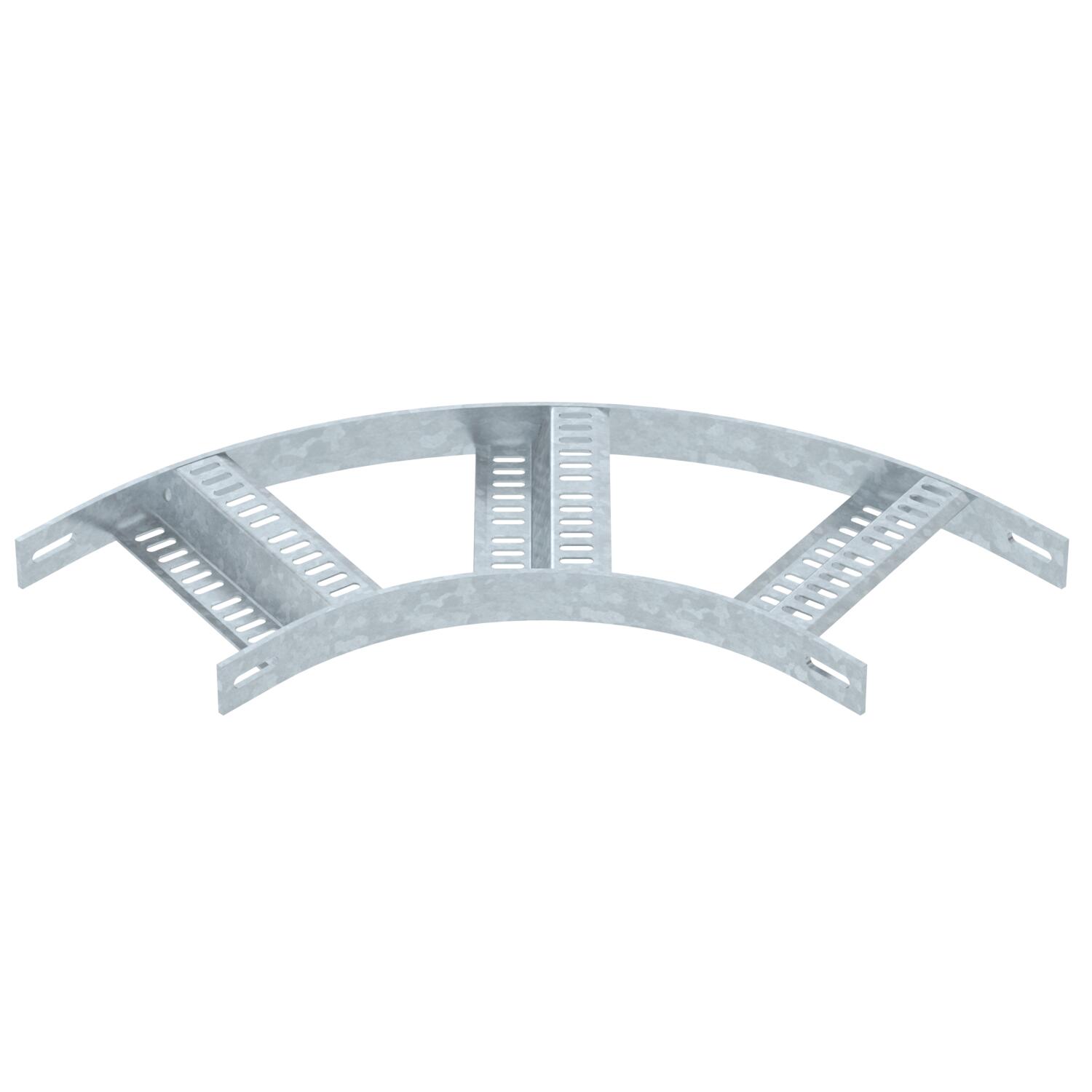

90° bend for shipbuilding cable ladders, type SLZ, with side height of 40 mm with welded, perforated Z rungs.

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Connector version	Without connectors

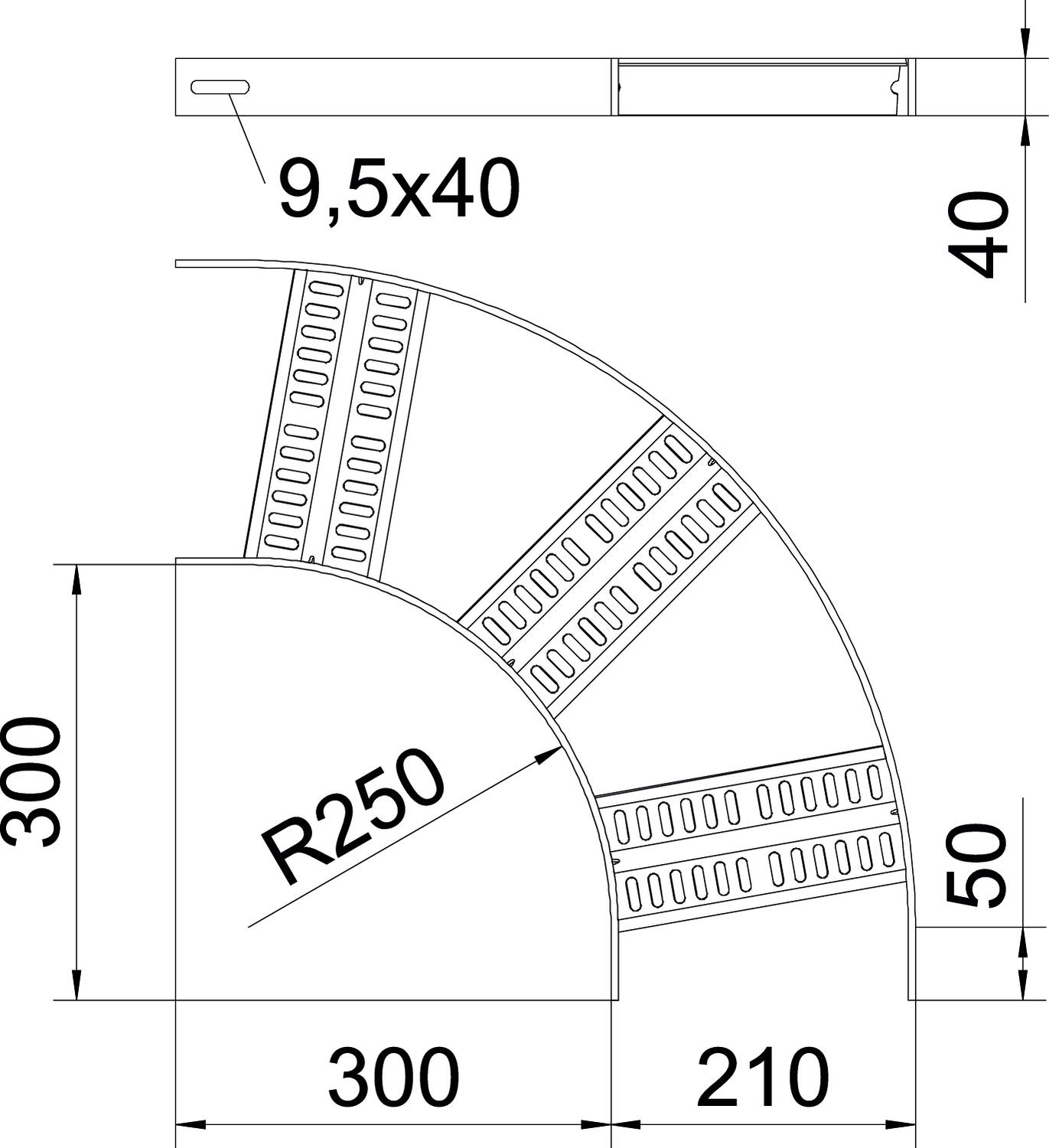

Dimension	B210mm
Height	40 mm
Hinged	no
Maintain electrical functions	no
Material	Steel

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
SLZB 90 100 FT	100 mm	5 mm	7099000	piece	1 piece
SLZB 90 200 FT	200 mm	5 mm	7099002	piece	1 piece
SLZB 90 300 FT	300 mm	5 mm	7099004	piece	1 piece
SLZB 90 400 FT	400 mm	5 mm	7099006	piece	1 piece
SLZB 90 500 FT	500 mm	5 mm	7099008	piece	1 piece
SLZB 90 600 FT	600 mm	5 mm	7099010	piece	1 piece
