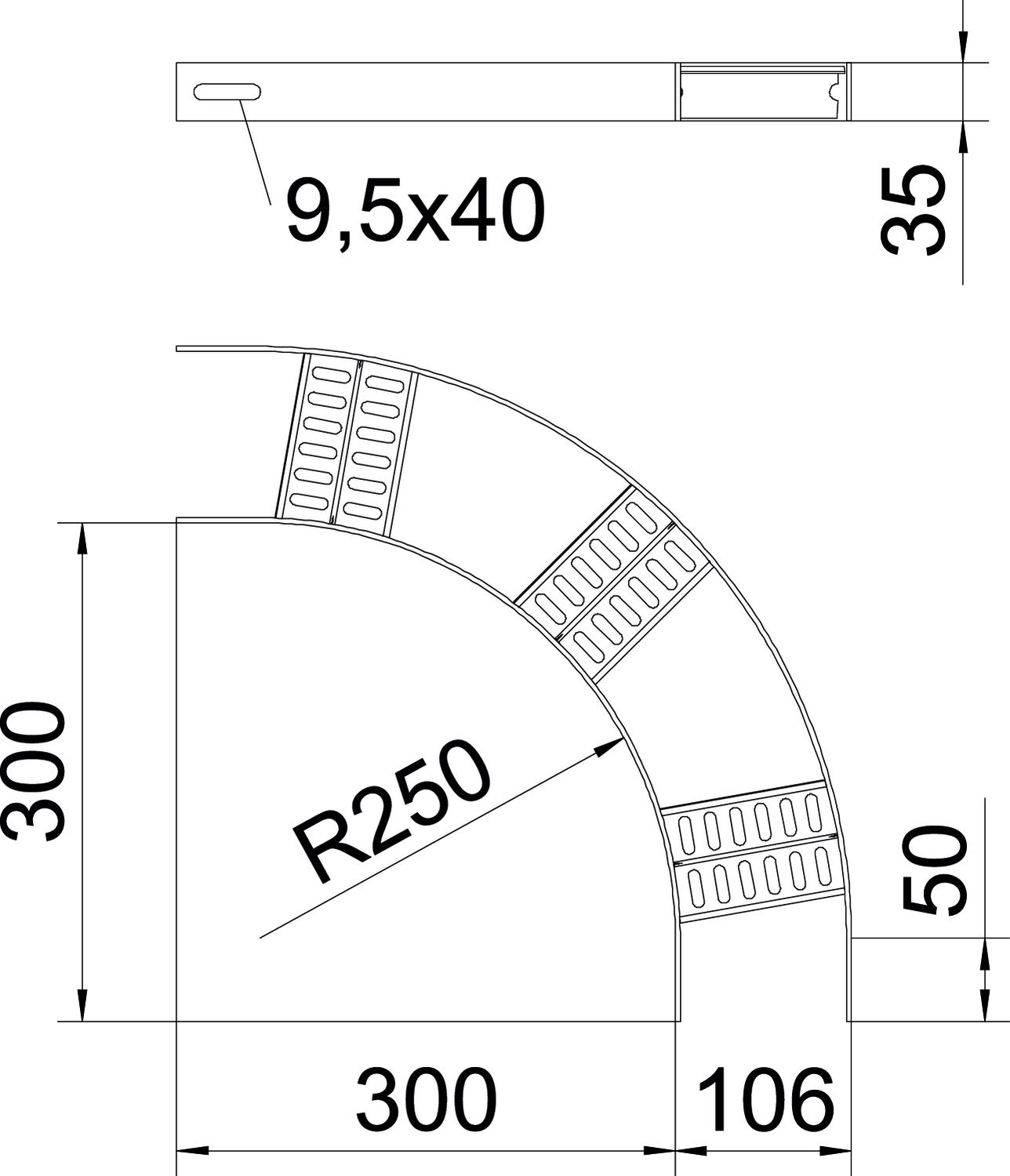

90° bend with Z rung, A4

Item no. / Types

Width

Rail thickness	3 mm

Product description

Product description

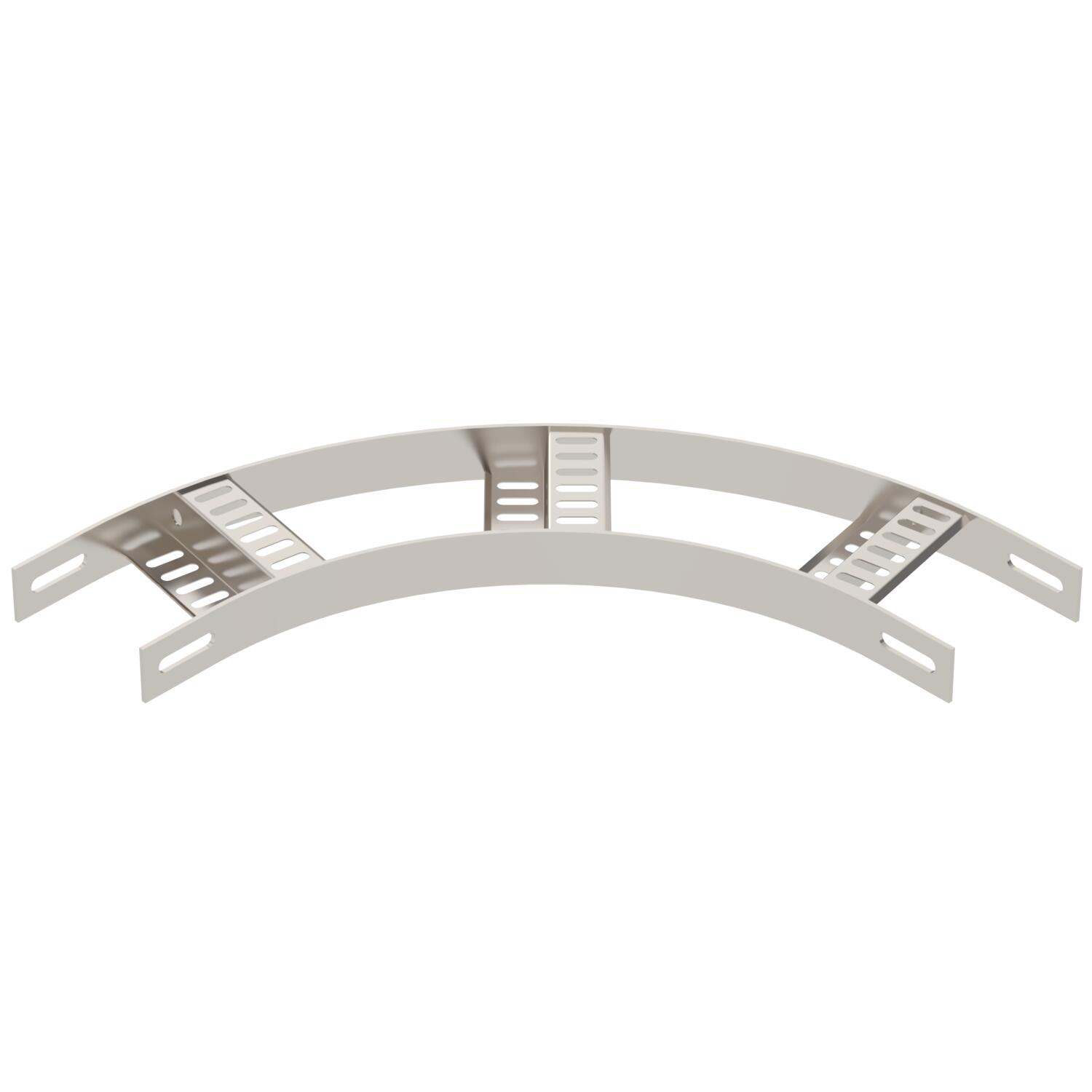

90° bend for shipbuilding cable ladders, type SLZ L, with side height of 35 mm with welded, perforated Z rungs.

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	stainless steel
Connector version	Without connectors
Dimension	B106mm
Height	35 mm
Hinged	no
Maintain electrical functions	no
Material	Stainless steel

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
SLZB L 90 100 A4	100 mm	3 mm	7099261	piece	1 piece
SLZB L 90 200 A4	200 mm	3 mm	7099263	piece	1 piece
SLZB L 90 300 A4	300 mm	3 mm	7099265	piece	1 piece
SLZB L 90 400 A4	400 mm	3 mm	7099268	piece	1 piece
SLZB L 90 500 A4	500 mm	3 mm	7099270	piece	1 piece
SLZB L 90 600 A4	600 mm	3 mm	7099272	piece	1 piece
