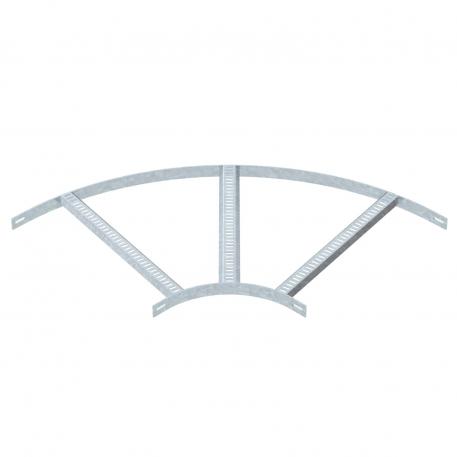

90° bend with trapezoidal rung, FT 600 | 5

90° bend with trapezoidal rung, FT

Item no. 7098936 | EAN 4012196510979

Item no. / Types

Width

Rail thickness	5 mm

Product description

Product description

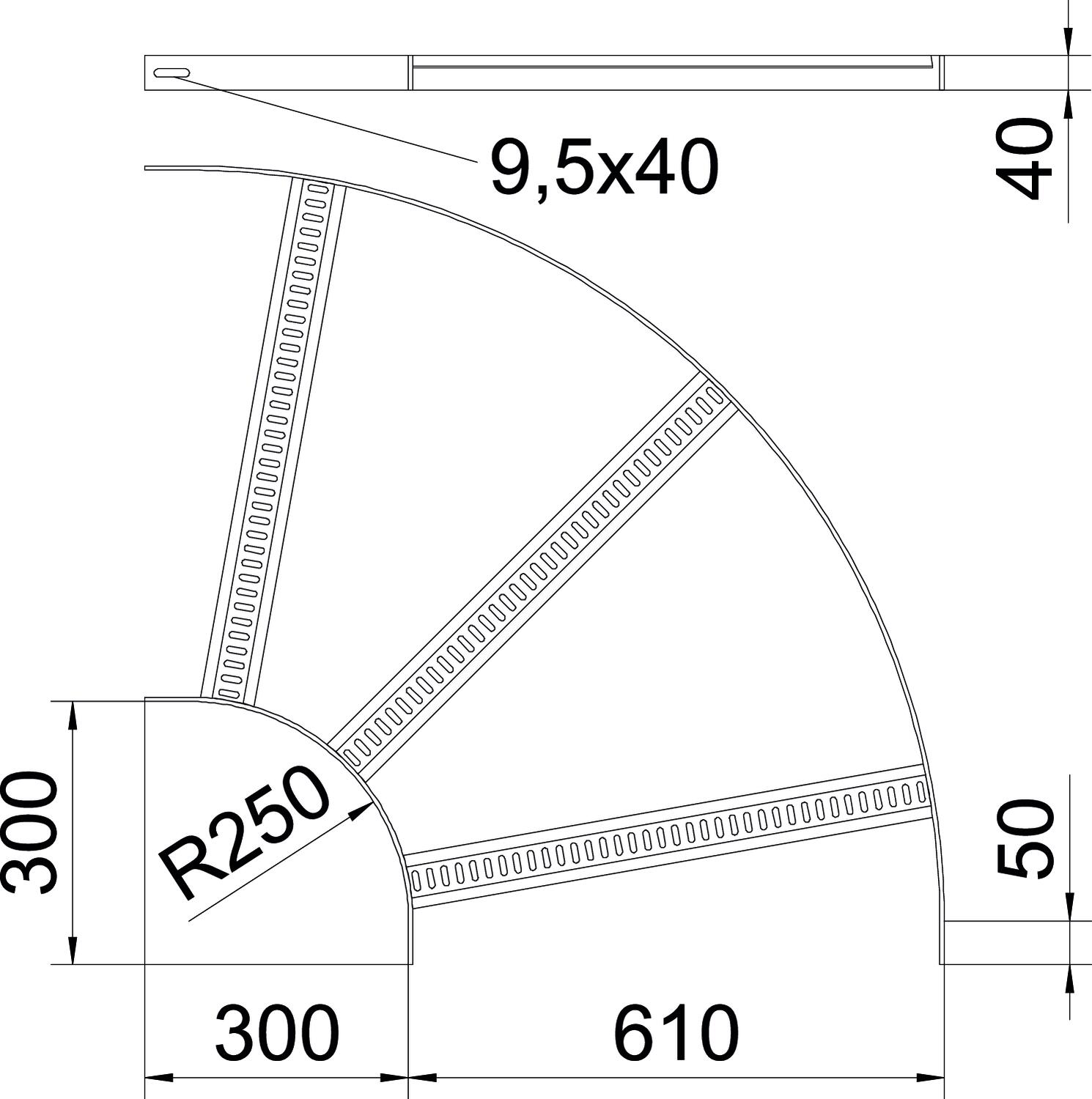

90° bend for shipbuilding cable ladders, type SL 62, with side height of 40 mm with welded, perforated trapezoidal rungs which open in a downwards direction.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Colour	zinc
Connector version	Without connectors
Dimension	B610mm
Height	40 mm
Hinged	no
Maintain electrical functions	no
Material	Steel

Rail thickness	5 mm
Rustproof steel, pickled	no
Side perforation	no
Side rail version	Flat profile
Surface	Hot-dip galvanised
Version of the rungs	Profile perforated
Wide-span version	no
Width	600 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
SLB 90 62 100 FT	100 mm	5 mm	7098855	piece	1 piece
SLB 90 62 200 FT	200 mm	5 mm	7098871	piece	1 piece
SLB 90 62 300 FT	300 mm	5 mm	7098898	piece	1 piece
SLB 90 62 400 FT	400 mm	5 mm	7098901	piece	1 piece
SLB 90 62 500 FT	500 mm	5 mm	7098928	piece	1 piece
SLB 90 62 600 FT	600 mm	5 mm	7098936	piece	1 piece
