90° bend with trapezoidal rung, ALU 75 | 3

90° bend with trapezoidal rung, ALU

Item no. 7098684 | EAN 4012196516759

Item no. / Types

Width

Rail thickness	3 mm

Product description

Product description

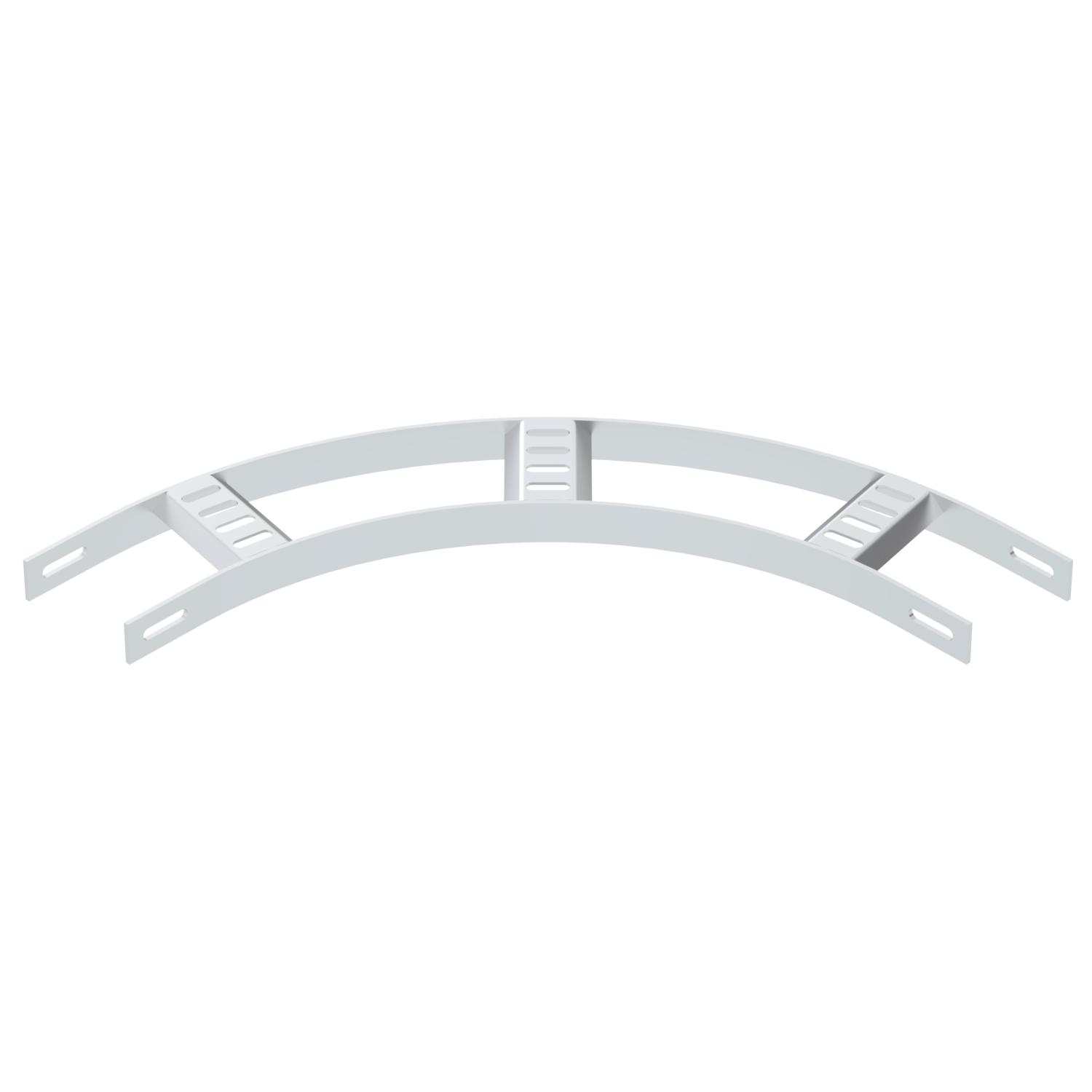

90° bend for shipbuilding cable ladders, type SL 42, with a side height of 25 mm with welded, perforated trapezoidal rungs which open in a downwards direction.

Technical data

Technical data

Bend (angle)	90°
Change of direction	Horizontal
Connector version	Without connectors

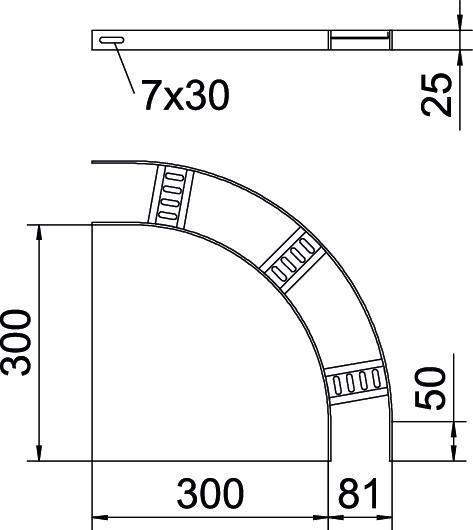

Dimension	B81mm
Height	25 mm
Hinged	no
Maintain electrical functions	no
Material	Aluminium

Rail thickness	3 mm
Rustproof steel, pickled	yes
Side perforation	no
Side rail version	Flat profile
Surface	Pickled
Version of the rungs	Profile perforated
Wide-span version	no
Width	75 mm

All types

All types

Types	Width	Rail thickness	Item no.	Quantity	SSU
SLB 90 42 075ALU	75 mm	3 mm	7098684	piece	1 piece
SLB 90 42 100ALU	100 mm	3 mm	7098686	piece	1 piece
SLB 90 42 150ALU	150 mm	3 mm	7098688	piece	1 piece
SLB 90 42 200ALU	200 mm	3 mm	7098690	piece	1 piece
SLB 90 42 250ALU	250 mm	3 mm	7098692	piece	1 piece
SLB 90 42 300ALU	300 mm	3 mm	7098694	piece	1 piece
