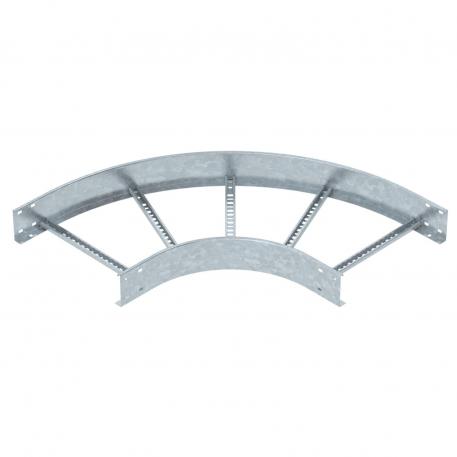

90° bend FT
Item no. 6225148 | EAN 4012196443963
- Product description
-
Product description
90° bend, horizontal, with welded rung for all cable ladder types of 110 mm side height.
-
- Technical data
-
Technical data
Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 110x450 Dimension B 450 mm Dimension R 450 mm Height 110 mm Hinged no Maintain electrical functions no Material Steel Rail thickness 1,5 mm Rustproof steel, pickled no Side perforation no Side rail version Flat profile Surface Hot-dip galvanised Version of the rungs Profile perforated Wide-span version no Width 450 mm - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Straight connector FT
LVG 110 FT 6216548 10 piece - Downloads
-
